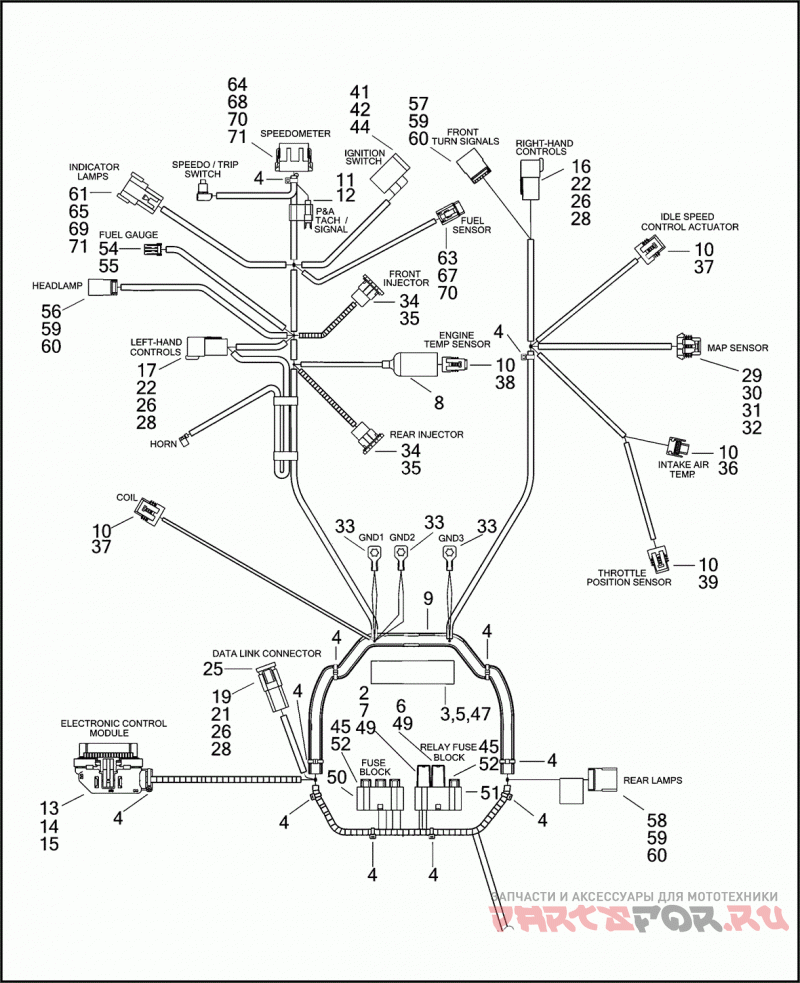

WIRING HARNESS, MAIN - FUEL INJECTED

Harley Davidson FLSTFI 1BXB FAT BOY (2003)

Harley Davidson
#oem кодцена
70431-03
MAIN WIRING HARNESS
1
9840
TERMINAL RING TYPE
2
9937
TERMINAL FEMALE, #14-16 WIRE
3
10006
CABLE STRAP
4
10065
CABLE STRAP
5
27667-00A
FUSE BLOCK COVER
6
31511-01B
RELAY BLACK
7
31522-00C
RELAY
8
70598-99
BOOT ENGINE TEMPERATURE SENSOR
9
70974-00B
SHIELD LOOM
10
72033-93
TERMINAL SOCKET
11
72039-71A
TERMINAL PIN
12
72043-71A
PIN HOUSING 1-WAY
13
72076-00
SOCKET TERMINAL #18 WIRE
14
72077-00
SEAL PIN
15
72078-00
CONNECTOR KIT 36-WAY
16
72106-94BK
PIN HOUSING 6-WAY PIN (BLACK)
17
72106-94BK
PIN HOUSING 6-WAY (REPLACES GRAY CONNECTOR) (BLACK)
18
72113-94BK
SOCKET HOUSING 3-WAY (BLACK)
19
72124-94GY
PIN HOUSING 4-WAY (GRAY)
20
72139-94GY
SOCKET HOUSING 12-WAY (GRAY)
21
72144-94
SECONDARY LOCK 4-WAY
22
72146-94
SECONDARY LOCK 6-WAY
23
72153-94
SECONDARY LOCK 3-WAY
24
72159-94
SECONDARY LOCK 12-WAY
25
72164-94A
PLUG 4-WAY CONNECTOR
26
72190-94
TERMINAL PIN
27
72191-94
TERMINAL SOCKET
28
72199-94
ANCHOR T-STUD
29
72213-94
TERMINAL SOCKET
30
72214-94
CABLE SEAL #14-16 WIRE
31
72230-98
SOCKET HOUSING 3-WAY
32
72231-98
SECONDARY LOCK 3-WAY
33
72242-94
TERMINAL RING
34
72244-95
SOCKET HOUSING 2-WAY
35
72245-95
SOCKET TERMINAL #16-18 WIRE
36
72247-95
SOCKET HOUSING 2-WAY
37
72263-95
SOCKET HOUSING 4-WAY
38
72273-95
SOCKET HOUSING 2-WAY
39
72280-95
SOCKET HOUSING (BLACK)
40
72290-94
TERMINAL FEMALE
41
72291-94
TERMINAL FEMALE SPADE, 14-16 GAUGE
