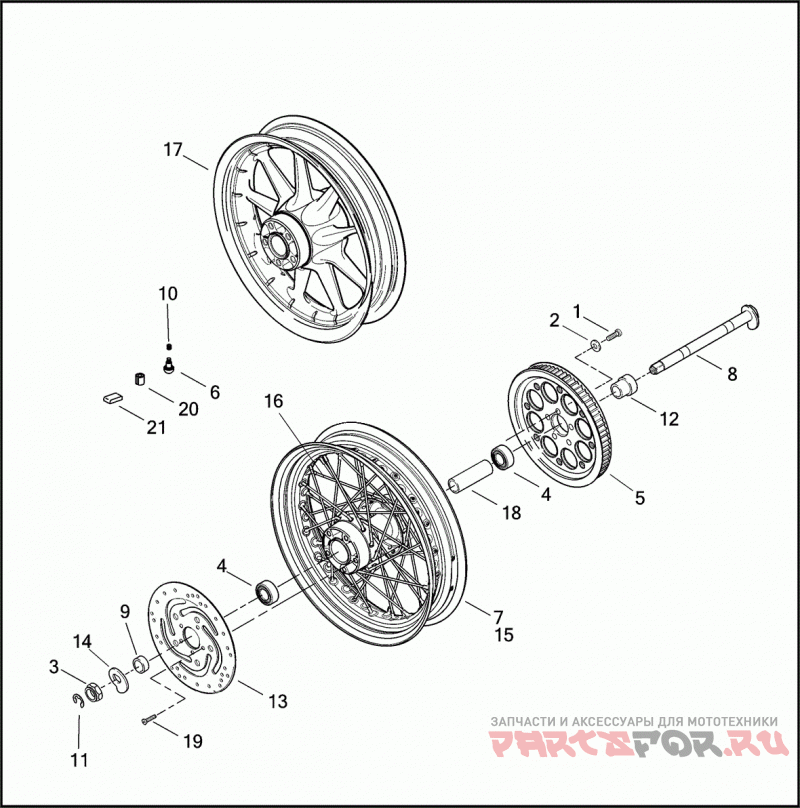

Заднее колесо

Harley Davidson FLHTCI 1FFW ELECTRA GLIDE CLASSIC (2003)

Harley Davidson
#oem кодцена
1
3899
SCREW 7/16-14 X 1-3/4 HEX HD., W/LOCKPATCH
2
6516HW
WASHER 7/16 X 1-1/8 X 1/8
3
8020
NUT M24 X 2.0 X 15
4
9247
SEALED BALL BEARING
5
40217-00
SPROCKET 70-TOOTH
6
40999-87
VALVE STEM (CAST WHEELS ONLY)
7
41052-08
WHEEL ASSEMBLY 16 INCH, LACED, W/ 43085-97, 43241-05 & HUB (W/O BEARINGS & SLEEVE)
8
41056-02
Ось задняя
9
41084-02A
SPACER BRAKE SIDE
10
41123-79
VALVE CAP
11
41139-02
Пружинный Зажим
12
41240-02
Проставка
13
41797-00
BRAKE DISC
14
41819-02
AXLE CAM
15
43085-97
RIM 16 INCH (CHROME)
16
43241-05
SPOKE & NIPPLE SET 16 INCH RIM (SET OF 40)
17
43402-00B
WHEEL ASSEMBLY 16 INCH CAST, (W/O BEARINGS & SLEEVE)
17
41187-03A
WHL,RR,9SPK,GOLD,16X3
18
43517-00
SPACER SLEEVE
19
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
20
95578-41
WEIGHT 1/2 OZ., 0.275 INCH I.D. ROUND (LACED WHEELS ONLY)
20
95581-47
WEIGHT 3/4 OZ., 0.275 INCH I.D. ROUND (LACED WHEELS ONLY)
20
95582-47
WEIGHT 1 OZ., 0.275 INCH I.D. ROUND (LACED WHEELS ONLY)
21
95595-84B
WHEEL WEIGHT 5 grams (plain)
21
95596-03
WEIGHT 1/4 OZ. 100TH ANNIVERSARY (GOLD)
