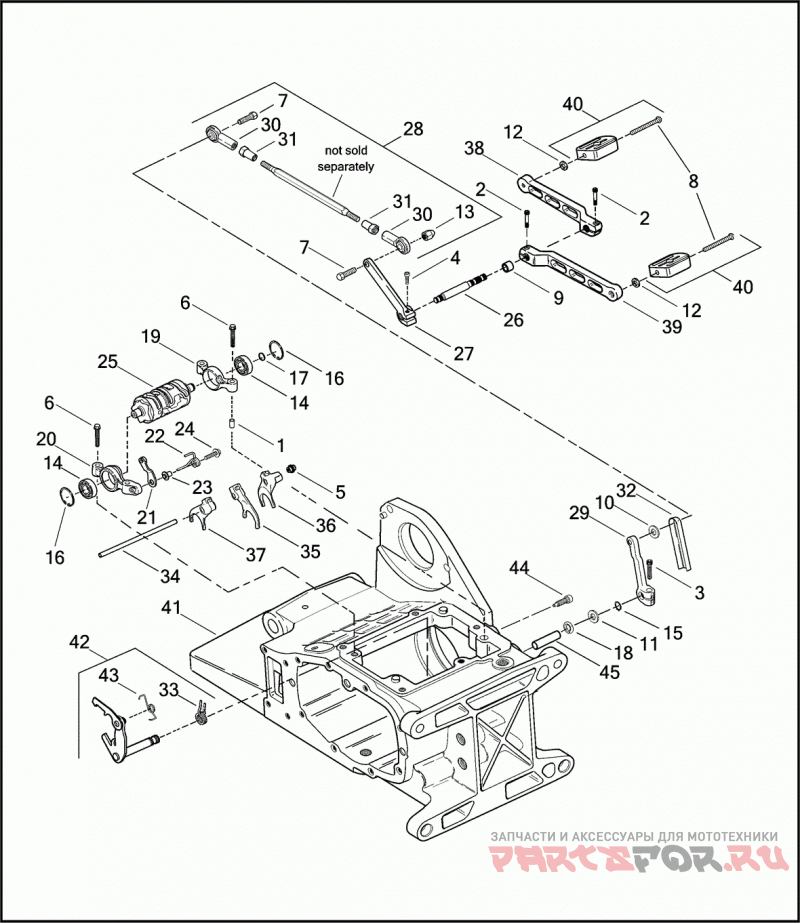

PIN ROLL

SCREW 1/4-20 X 7/8 SEMS HEX HD. (GRADE 8)

SCREW 5/16-24 X 1 SOCKET HD. (GRADE 8)

SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)

SET SCREW 1/2-20 X 1/2 SOCKET HD., W/LOCKPATCH

SCREW 1/4-20 X 1-1/4 SEMS HEX HD. (GRADE 5)

SCREW 5/16-24 X 59/64 HEX HD.

SCREW 5/16-24 X 2-3/4 TORX BUTTON HD.

Проставка

SPACER SHIFTER COVER

WASHER 29/64 X 1-1/8 X 1/16

LOCKWASHER 5/16

ACORN NUT 0.312-24 (STAINLESS)

BEARING BALL

RING RETAINING, EXTERNAL

RING RETAINING, INTERNAL

RING RETAINING

Уплотнение

TRANSMISSION ASSEMBLY COMPLETE (SILVER PAINTED & CHROME) (INCLUDES ALL PARTS ILLUSTRATED EXCEPT 2, 4, 8, 9, 12, 26, 27, 28, 38, 39 & 40)

SUPPORT ASSEMBLY SHIFTER CAM, LEFT, W/ 9837 & 11319A

SUPPORT ASSEMBLY SHIFTER CAM, RIGHT, W/ 9837 & 11319A

FOLLOWER ASSEMBLY DETENT

SPRING DETENT ARM

SLEEVE DETENT ARM SPRING

SCREW PIVOT, DETENT ARM

CAM SHIFTER

Вал

LEVER GEARSHIFT (CHROME)

LINKAGE KIT SHIFTER, W/ 7, 10, 13, 30, 31 & 32

LEVER SHIFTER ROD

ROD END SELF-ALIGNING (POLISHED STAINLESS STEEL)

NUT ROD END (POLISHED STAINLESS STEEL)

COVER SHIFTER ROD

SPRING SHIFTER RETURN

SHAFT SHIFTER FORK

FORK SHIFTER, 1ST & 2ND GEAR

FORK SHIFTER, 3RD & 5TH GEAR

FORK SHIFTER, 4TH GEAR

LEVER SHIFTER, HEEL, BILLET-STYLE (CHROME)

LEVER SHIFTER, TOE, BILLET-STYLE (CHROME)

PEG KIT SHIFTER, W/ CHROME PEDAL AND SCREW, INSERT, & SPACER TUBE

HOUSING ASSEMBLY TRANSMISSION, W/ 609 & 34979-00 (SILVER)

LEVER ASSEMBLY SHIFTER PAWL, W/ 34064-00C & 34977-02A

SPRING RATCHET ARM

SCREW CENTERING, SHIFTER LEVER

Гильца
