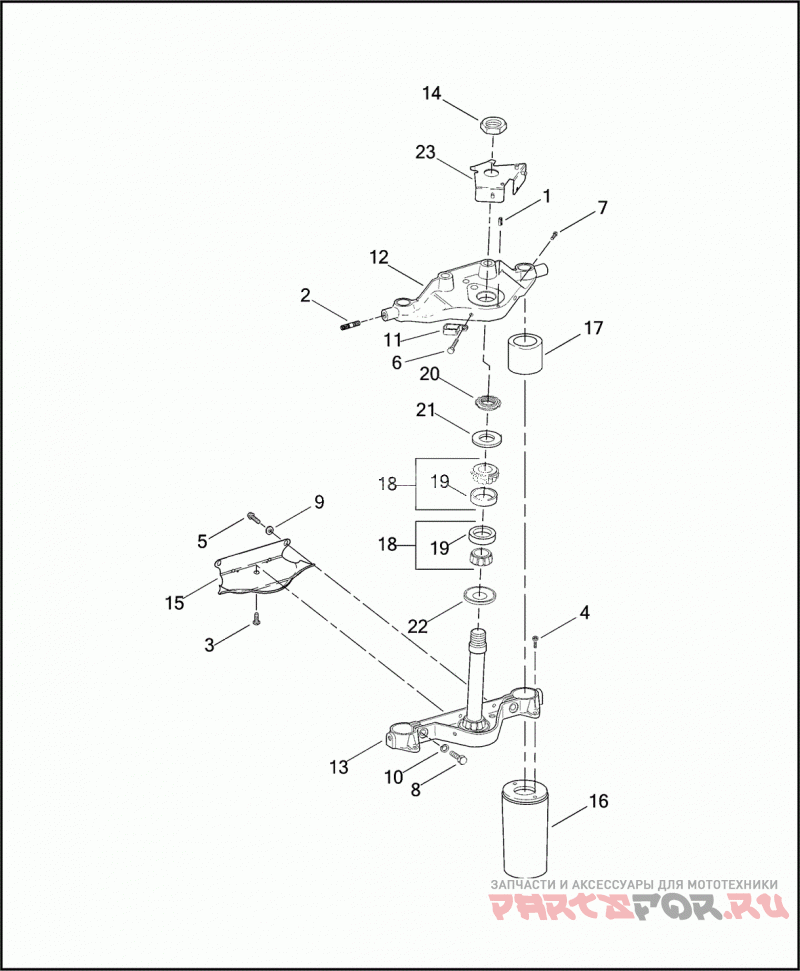

FRONT FORK - BRACKETS

Harley Davidson FLHRSEI2 1PGE CVO ROAD KING (2003)

Harley Davidson
#oem кодцена
1
608
PIN ROLL
2
3265A
Шпилька
3
3331
SCREW 5/16-18 X 1 TORX BUTTON HD., SELF-TAPPING (GRADE 5)
4
3739
SCREW 1/4 X 5/8 HEX HD., W/LOCKPATCH, SELF-TAPPING
5
3892
SCREW 1/4 X 5/8 SELF-TAPPING
6
4124
SCREW NO. 10 X 5/8 SELF-TAPPING
7
4240
SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER
8
4752
BOLT 7/16-14 X 1-1/4 HEX HD. (GRADE 8)
9
6703
WASHER 1/4 X 5/8 X 1/16
10
7039
LOCKWASHER 7/16
11
27070-02
Зажим
12
45435-95
BRACKET UPPER FORK
13
45446-87A
BRACKET KIT FORK STEM, W/ 3265A, 3892, 4752, 48365-48A & BUSHING GUIDE
14
45718-60
NUT 1-24 X 1.5 X 0.47
15
45780-03
COVER FORK BRACKET (CHROME)
16
46205-00
COVER SLIDER (CHROME)
17
47530-79B
STOP FORK (RUBBER)
18
48300-60
BEARING KIT ROLLER, W/ 48315-60
19
48315-60
CUP ROLLER BEARING
20
48333-80
ADJUSTER BEARING
21
48361-80
SHIELD DUST, UPPER BEARING
22
48365-48A
SHIELD DUST, LOWER BEARING
23
72332-02A
BRACKET MOUNTING
