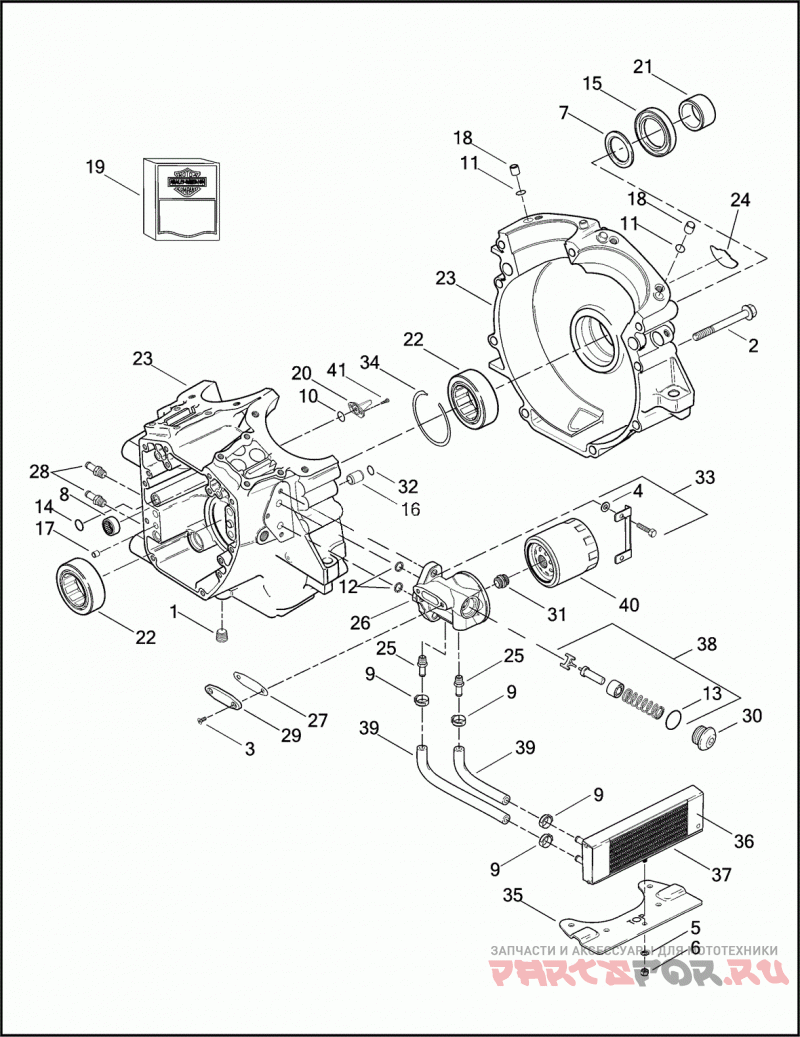

CRANKCASE AND ENGINE OIL FILTER & COOLER - 1690

Harley Davidson FLHRSEI2 1PGE CVO ROAD KING (2003)

Harley Davidson
#oem кодцена
1
765
Заглушка
2
895
SCREW 5/16-18 X 3.0 HEX FLANGE HD. (GRADE 5)
3
3793A
SCREW 1/4-20 X 5/8 TORX HD. (GRADE 8)
4
6099
WASHER 1/4 X 7/16 X 1/16
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7671
LOCKNUT 1/4-20 NYLON
7
8972
WASHER 1-1/4 X 1-53/64 X 1/8
8
9198
BEARING NEEDLE, LEFT SIDE, CAMSHAFT
9
10198
Зажим
10
11140
Уплотнительное кольцо
11
11273
Уплотнительное кольцо
12
11293
Уплотнительное кольцо
13
11296
Уплотнительное кольцо
14
11301
Уплотнительное кольцо
15
12068
SEAL OIL
16
16574-99A
DOWEL RING
17
16589-99A
DOWEL RING
18
16595-99A
DOWEL RING
19
17045-99D
GASKET KIT CAM SERVICE, W/ 9198, 11293 & 11301
19
17052-99C
GASKET KIT TOP END, W/ 11273 & 11293
19
17053-99C
GASKET KIT ENGINE OVERHAUL, W/ 10, 11, 12, 14, 15 & 32
20
22307-99
JET COOLING, PISTON, W/ 1140
20
24004-03B
BEARING KIT LEFT SIDE W/ 8972, 24605-07 & 35114-02
21
24008-03
SPACER SPROCKET SHAFT
22
24605-07
BEARING MAIN
23
24596-99C
CRANKCASE SET W/ 765, 895, 16574-99A, 16589-99A, 16595-99A, 22307-99, & 24604-00C (SILVER)
24
24709-03
MEDALLION KIT CRANKCASE
25
25259-93A
FITTING STRAIGHT, BARBED (BRASS)
26
26013-03
MOUNT KIT OIL FILTER W/ 3, 4, 12, 13, 25, 27, 29, 30, 31 & 33 (SILVER)
27
26021-03
GASKET BYPASS COVER
28
26314-99
FITTING STRAIGHT
29
26330-03
COVER BYPASS
30
26029-03
CAP END, OIL FILTER MOUNT
31
26352-95A
ADAPTOR OIL FILTER
32
26432-76A
Уплотнительное кольцо
33
35071-99A
LOCK TAB KIT OIL FILTER MOUNT, W/ 6099, 11293 & 3 SCREWS
34
35114-02
RING RETAINING, INTERNAL
35
62108-03
BRACKET MOUNTING, OIL COOLER
36
62110-03
GUARD OIL-COOLER
37
62831-03
COOLER OIL, W/ 62110-03
38
62898-03
THERMOSTAT KIT OIL FILTER MOUNT, W/ 11296, SPRING, VALVE & SUPPORT
39
62899-03B
HOSE KIT OIL COOLER W/ UPPER & LOWER HOSE
40
63798-99A
FILTER OIL (CHROME)
41
68042-99
SCREW NO. 8-32 X 3/8 TORX HD.
