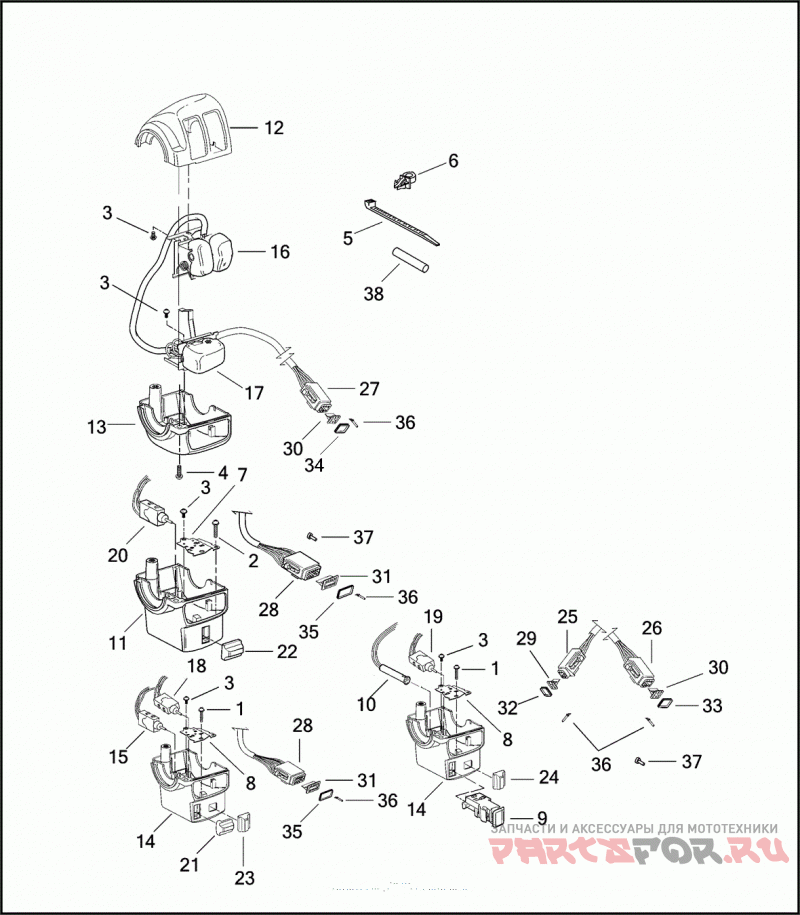

HANDLEBAR SWITCHES - LEFT

Harley Davidson FLHRCI 1FRW ROAD KING CLASSIC (2003)

Harley Davidson
#oem кодцена
1
2559
Деталь SCREW NO. 6-32 X 3/4 PHILLIPS PAN HD., W/LOCKWASHER
3
2955
Деталь SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
4
3658
Деталь SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
5
10181
Деталь CABLE STRAP (AS REQUIRED)
6
70345-84
Деталь RETAINER WIRING
9
71184-02
Деталь LENS RED
10
71185-02
Деталь LAMP ASSEMBLY (RED)
12
71567-96
Деталь HOUSING UPPER - LEFT
14
71594-98A
Деталь HOUSING LOWER - LEFT
16
71682-06A
Деталь SWITCH KIT DIMMER/HORN, W/ 10181 & 72266-94
17
71685-06A
Деталь SWITCH KIT LEFT TURN SIGNAL, W/ 10181 & 72266-94
18
71735-08
Деталь SWITCH KIT SQ +/-, PTT, W/ 10181 & 72266-94
19
71752-08
Деталь SWITCH KIT CRUISE - ON/OFF
24
71828-02
Деталь KNOB CRUISE - ON/OFF
25
72114-94BK
Деталь SOCKET HOUSING SEALED 4-WAY (BLACK) (REPLACES GRAY CONNECTOR)
26
72116-94BK
Деталь SOCKET HOUSING SEALED 6-WAY (BLACK) (REPLACES GRAY CONNECTOR)
27
72116-94BK
Деталь PLUG 6-WAY SOCKET
29
72154-94
Деталь SOCKET LOCK SECONDARY, 4-WAY
30
72156-94
Деталь SOCKET LOCK SECONDARY, 6-WAY
32
72174-94
Деталь FRONT SEAL 4-WAY PLUG
33
72176-94
Деталь FRONT SEAL 6-WAY PLUG
36
72191-94
Деталь TERMINAL SOCKET (AS REQUIRED)
37
72195-94
Деталь SEAL PIN
38
72266-94
Деталь HEAT SHRINK TUBE DUAL WALL, .3 X 2 INCH (AS REQUIRED)
