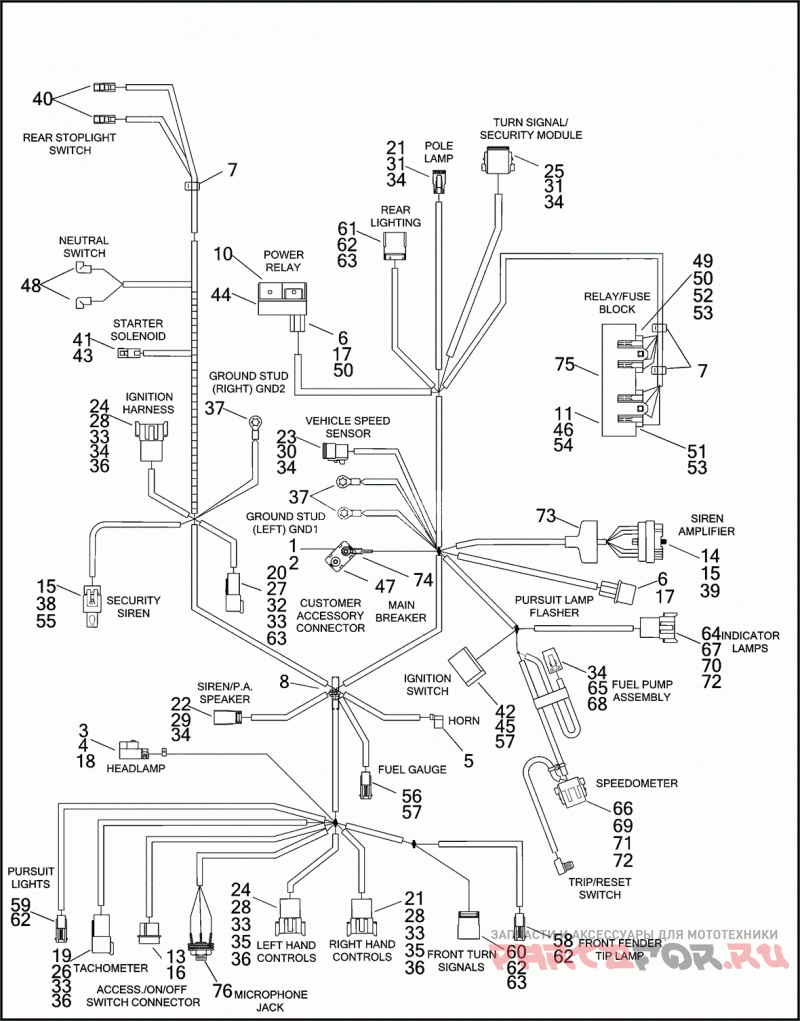

WIRING HARNESS, MAIN - FLHPI & FLHPEI

Harley Davidson FLHPEI 1FTW ROAD KING POLICE ESCORT (2003)

Harley Davidson
#oem кодцена
70260-03
WIRING HARNESS MAIN
1
7629
NUT NO. 10-32 X 3/8 KEPS
2
9840
TERMINAL 10 RING
3
9847
WIRE TERMINAL FEMALE SPADE, R.H.
4
9848
WIRE TERMINAL FEMALE SPADE, L.H
5
9898
TERMINAL FEMALE FLAG, 14-16 WIRE
6
9937
TERMINAL 1/4 INCH FEMALE SPADE, 14-16 GAUGE
7
10065
CABLE STRAP
8
10136
ANCHOR T-STUD
9
10227
CLIP (NOT ILLUSTRATED)
10
31504-91B
RELAY W/ DIODE
11
31522-00C
RELAY W/ DIODE
12
68750-93
CLAMP (NOT ILLUSTRATED)
13
70291-89
HOUSING 4 PIN
14
72032-93
SEAL PIN
15
72033-93
TERMINAL SOCKET
16
72039-71A
PIN SINGLE SOCKET
17
72046-79
CONNECTOR SPADE TERMINALS
18
72056-92
HOUSING FEMALE 3-PLACE
19
72103-94BK
HOUSING 3-WAY (BLACK)
20
72104-94BK
RECEPTACLE 4-WAY PIN (BLACK)
21
72109-94BK
RECEPTACLE 12-WAY PIN (BLACK)
22
72112-94BK
PLUG 2-WAY SOCKET (BLACK)
23
72113-94BK
PLUG 3-WAY SOCKET (BLACK)
24
72129-94GY
PLUG 12-WAY PIN (GRAY)
25
72139-94GY
PLUG 8-WAY SOCKET (GRAY)
26
72143-94
PIN LOCK SECONDARY, 3-WAY
27
72144-94
PIN LOCK SECONDARY, 4-WAY
28
72149-94
PIN LOCK SECONDARY, 12-WAY
29
72152-94
SOCKET LOCK 2-WAY
30
72153-94
SOCKET LOCK SECONDARY, 3-WAY
31
72159-94
SOCKET LOCK
32
72164-94A
WEATHER PLUG 4-WAY PIN
33
72190-94
TERMINAL PIN
34
72191-94
TERMINAL SOCKET
35
72195-94
SEAL PIN
36
72199-94
ATTACHMENT CLIP
37
72242-94
TERMINAL 1/4 INCH RING W/ INTERNAL STAR, 10-12 GAUGE
37
70260-03
WIRING HARNESS MAIN
38
72280-95
HOUSING 3-WAY SOCKET
39
72281-93
HOUSING 18-WAY SOCKET
40
72290-94
TERMINAL 1/4 INCH FEMALE
41
72291-94
TERMINAL FEMALE SPADE, 14-16 GAUGE
42
72292-94
TERMINAL FEMALE, 12 GAUGE
43
72295-94
CONNECTOR STARTER
44
72325-97
RELAY HOLDER
45
72327-03A
HOUSING FEMALE, 3-WAY
46
72330-95
FUSE 15 AMP
47
72366-95
HEAT SHRINK TUBE
48
72405-98BK
TERMINAL WIRE ASSEMBLY W/ CONNECTOR & WIRE
49
72428-00
TERMINAL 14-18 AWG
50
72429-00
TERMINAL 12-14 AWG
51
72430-00
MOUNTING BLOCK TYPE 0
52
72432-00
MOUNTING BLOCK TYPE 2
53
72434-00
TERMINAL 14-16 AWG
54
72462-00
FUSE 10 AMP
55
72516-01
Пылезащитный колпачок
56
72914-01BK
SOCKET HOUSING 4-WAY
57
72991-01
SOCKET TERMINAL 14-20 AWG
58
73102-96BK
PIN HOUSING 2-PLACE (BLACK)
59
73102-96WE
PIN HOUSING 2-PLACE (WHITE)
60
73106-96BK
PIN HOUSING 6-PLACE (BLACK)
61
73108-96BK
PIN HOUSING 8-PLACE (BLACK)
62
73190-96
PIN TERMINAL
63
73198-96
CONNECTOR ANCHOR
64
74108-98BK
PIN HOUSING 8-PLACE (BLACK)
65
74113-98BK
SOCKET HOUSING 3-WAY (BLACK)
66
74119-98BK
SOCKET HOUSING 12-WAY (BLACK)
67
74148-98
SOCKET LOCK SECONDARY, 8-WAY
68
74153-98
SOCKET LOCK SECONDARY, 3-WAY SOCKET
69
74159-98
SOCKET LOCK 12-WAY
70
74190-98
PIN TERMINAL
71
74191-98
TERMINAL SOCKET
72
74195-98
SEAL PIN
73
74413-93
BOOT SIREN AMPLIFIER CONNECTOR
74
74600-94
CIRCUIT BREAKER 40 AMP
75
72531-03
COVER FUSE BLOCK
76
76233-85
MICROPHONE JACK
