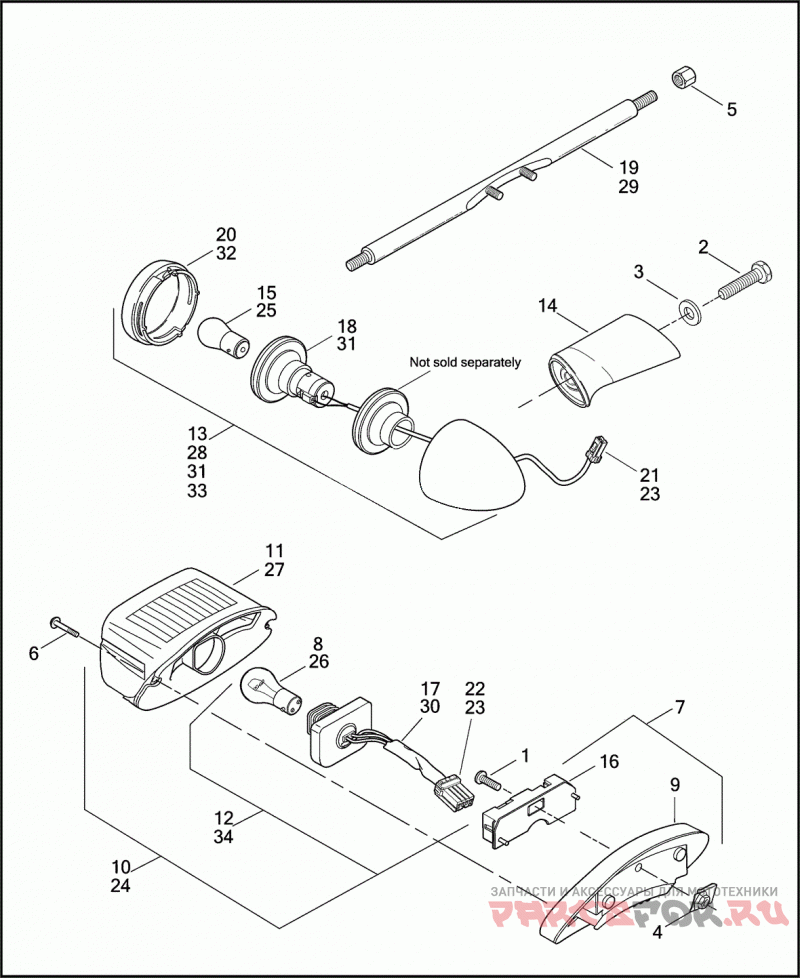

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FXDXT 1GLV DYNA SUPER GLIDE T-SPORT (2002)

Harley Davidson
#oem кодцена
1
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
4
7964
J-NUT
5
7985
Гайка
6
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
7
68066-99A
BASE ASSEMBLY CHROME
8
68168-89A
BULB TAIL LAMP (USED W/ 68140-99)
9
68296-99A
BASE TAIL LIGHT CHROME
10
68140-04
LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A
11
68369-03
LENS TAIL LAMP W/ 68026-99 (USED W/ 68140-04)
12
68370-03A
SOCKET ASSEMBLY TAIL LAMP (USED W/ 68140-04)
13
68425-01
TURN SIGNAL ASSEMBLY REAR
15
68572-64B
BULB REAR TURN SIGNAL
16
68830-99A
CIRCUIT BOARD/COVER ASSEMBLY
17
68140-04
LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A
18
68905-00
SOCKET ASSEMBLY
19
68963-00A
TURN SIGNAL BAR
20
68973-00
Линза
21
73152-96BK
SOCKET HOUSING 2-PLACE
22
73154-96BK
SOCKET HOUSING 4-PLACE
23
73191-96
CONTACT SOCKET 16-20 GAUGE (AS REQUIRED)
24
68141-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68372-03, & 69187-03A (HDI)
25
68163-84
BULB (HDI)
26
68169-90A
BULB TAIL LAMP (HDI ONLY)
27
68372-03
LENS TAIL LAMP (HDI ONLY)
28
68420-01
TURN SIGNAL ASSEMBLY REAR (HDI ONLY)
29
68430-89A
TURN SIGNAL BAR (HDI, ENGLAND)
30
68142-04
LIGHT ASSEMBLY, tail lamp, w/ 68558 & 69187-03A - INTERNATIONAL MODELS ONLY
32
68973-00
LENS (HDI ONLY)
34
69187-03A
SOCKET & BULB ASSEMBLY TAIL LAMP, W/ 68169-90A (USED W/ 68142-04)
