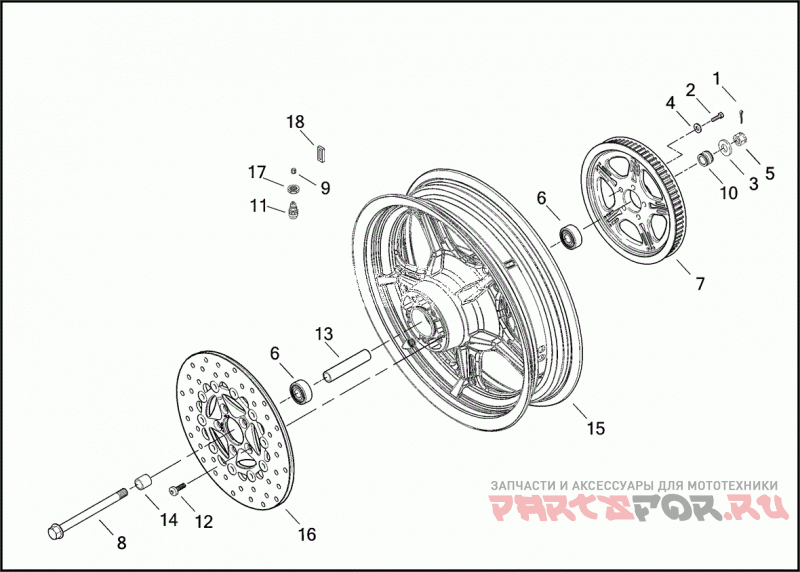

REAR WHEEL - CAST

Harley Davidson FXDWG3 1PEV CVO DYNA WIDE GLIDE (2002)

Harley Davidson
#oem кодцена
1
510
CLIP SPRING
2
3737A
SCREW 7/16-14 X 2-1/4 HEX HD., W/LOCKPATCH (GRADE 5)
3
5756
WASHER 21/32 X 1-5/16 X 5/8
4
6516HW
WASHER 7/16 X 1-1/8 X 1/8
5
7987
NUT 5/8-18 X 15/16 SLOTTED (GRADE 8)
6
9267
BEARING ROLLER
7
40512-00
SPROCKET 70T
8
41114-90
Мост
9
41123-79
CAP VALVE
10
41591-00A
SPACER SPROCKET SIDE
11
43206-01
STEM ASSEMBLY VALVE
12
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
13
43608-00
Проставка
14
43654-00A
SPACER DISC SIDE
15
43785-00
WHEEL ASSEMBLY 16 INCH REAR (CAST), W/ 9267 & 43608-00
16
44368-00A
DISC BRAKE, W/ 43567-92
17
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
18
95595-84B
WHEEL WEIGHT 5 grams (plain)
