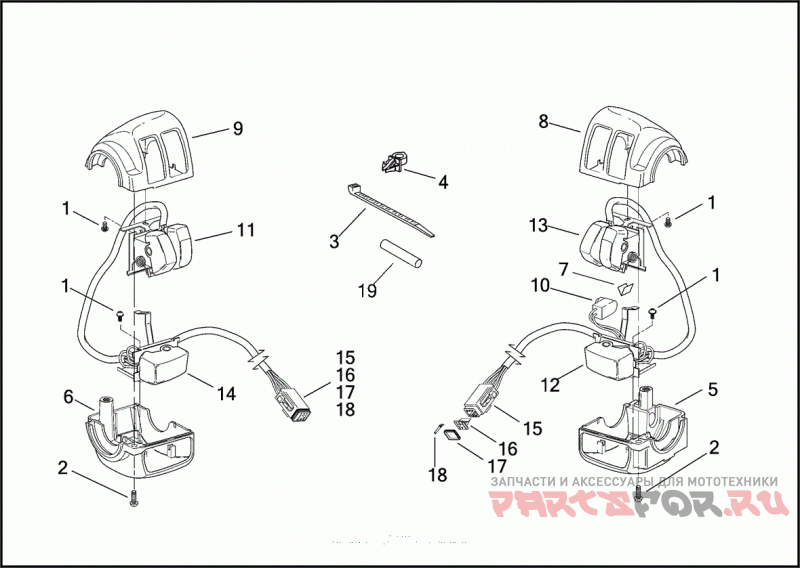

HANDLEBAR SWITCHES

Harley Davidson FXDWG3 1PEV CVO DYNA WIDE GLIDE (2002)

Harley Davidson
#oem кодцена
1
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
2
3658
SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
3
10181
STRAP CABLE (AS REQUIRED)
4
70345-84
Седло
5
71529-96
HOUSING LOWER, R.H. (CHROME)
6
71538-96
HOUSING LOWER, L.H. (CHROME)
7
71587-04
V-CLIP
8
71614-96
HOUSING UPPER, R.H. (CHROME)
9
71615-96
HOUSING UPPER, L.H. (CHROME)
10
71621-08
SWITCH KIT FRONT, STOPLAMP, W/ 10181 & 72266-94
11
71682-06A
SWITCH KIT HORN, W/ 10181 & 72266-94
12
71683-06A
SWITCH KIT TURN SIGNAL, RH, W/ 10181 & 72266-94
13
71684-06A
SWITCH KIT RUN/STOP/START, W/ 10181 & 72266-94
14
71685-06A
SWITCH KIT TURN SIGNAL, L.H., W/ 10181 & 72266-94
15
72116-94BK
PLUG 6-WAY SOCKET (BLACK)
16
72156-94
LOCK SOCKET, SECONDARY, 6-WAY
17
72176-94
SEAL FRONT, 6-WAY PLUG
18
72191-94
TERMINAL SOCKET
19
72266-94
TUBE HEAT SHRINK, DUAL WALL, .3 X 2 INCH (AS REQUIRED)
