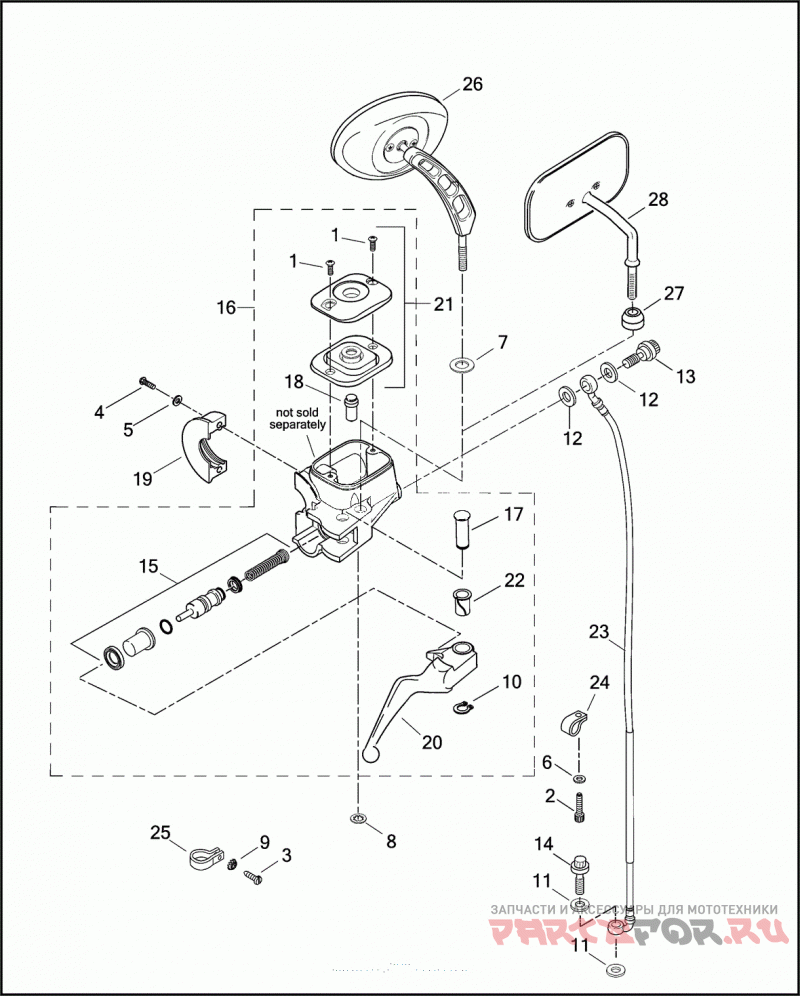

FRONT BRAKE CONTROL

Harley Davidson FXDWG3 1PEV CVO DYNA WIDE GLIDE (2002)

Harley Davidson
#oem кодцена
1
2573
SCREW NO. 8-32 X 5/8 PAN HD.
2
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
3
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
4
4132
SCREW 1/4-20 X 1-1/8 TORX BUTTON HD. (GRADE 5) (BLACK)
5
6101
WASHER 17/64 X 27/64 X 1/16
6
6703
WASHER 1/4 X 5/8 X 1/16
7
6771A
WASHER 5/16 X 1/2 X 1/16
8
7127
LOCKWASHER 5/16 INTERNAL TOOTH
9
7220
LOCKWASHER NO. 10 EXTERNAL TOOTH
10
11143
RING RETAINING
11
41731-01
GASKET BANJO BOLT
12
41733-88
GASKET MASTER CYLINDER, SINGLE DISC
13
41739-84A
FITTING MASTER CYLINDER, SINGLE DISC
14
41747-82A
BOLT BANJO
15
45006-96E
REPAIR KIT MASTER CYLINDER (9/16 IN BORE)
16
45025-99B
MASTER CYLINDER ASSEMBLY 9/16 INCH BORE, W/ 11143, 45006-96C, 45032-82, 45076-96 & 45078-96D (REPLACES 45025-99)
17
45032-82
PIN PIVOT
18
45042-96
GLASS SIGHT (USED W/45025-99)
19
45044-96A
CLAMP MASTER CYLINDER
20
45076-96
LEVER ASSEMBLY HAND, W/ 45423-96 (CHROME)
21
45078-96D
KIT, COVER ASSEMBLY RESERVOIR, W/ 2573 (CHROME)
22
45423-96
BUSHING LEVER PIVOT
23
46230-01A
LINE BRAKE
24
68562-84
CLAMP BRAKE LINE
25
71795-63A
CLAMP BRAKE LINE
26
91515-99
MIRROR R.H.
27
5774
SPACER (HDI)
28
91875-88A
MIRROR RIGHT (HDI)
