Фара

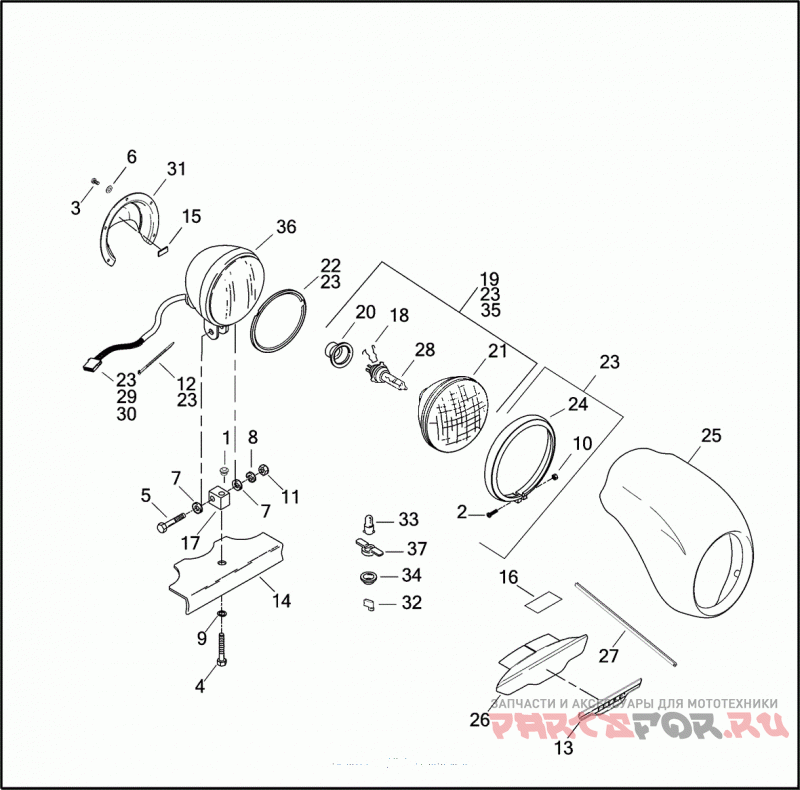

Harley Davidson FXDWG3 1PEV CVO DYNA WIDE GLIDE (2002)

Harley Davidson
#oem кодцена
1
740
PLUG BLACK PLASTIC
2
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
3
4363
SCREW 1/4-20 X 1/2 SOCKET BUTTON HD.
4
4722
BOLT 3/8-16 X 2-1/4 HEX HD. (GRADE 5)
5
4724
BOLT 3/8-24 X 1-1/2 HEX HD. (GRADE 5)
6
6424
WASHER 9/32 X 5/8 X 1/16
7
6701
WASHER 3/8 X 13/16 X 1/16
8
7038
LOCKWASHER 3/8
9
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
10
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
11
7800W
NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)
12
10006
STRAP CABLE
13
13563-02
DECAL HEAD LAMP, VISOR TRIM (BLUE TEXT)
13
13584-02
DECAL HEAD LAMP, VISOR TRIM (RED TEXT)
14
45685-93
PLATE MOUNTING
15
66013-01
TAPE FOAM
16
66249-01
TAPE ADHESIVE, DOUBLE-SIDED
17
67627-97
BLOCK MOUNTING
18
67685-92
CLIP BULB
19
67698-81D
LENS ASSEMBLY W/ 67685-92, 67705-92, 67757-92 & 68329-03
20
67705-92
BOOT CONNECTOR
21
67757-92
LENS (USE 67777-80A)
22
67769-93
RING MOUNTING
23
67777-80A
HEADLAMP & WIRING HARNESS KIT W/ 2, 10, 12, 13, 19, 22 & 24
24
67790-93A
BEZEL HEADLAMP, TRIM RING (CHROME)
25
68038-02BCA
VISOR HEADLAMP (NAVY PEARL W/ SILVER LEAF FLAMES)
25
68038-02BEA
VISOR HEADLAMP (VIVID BLACK W/ GOLD LEAF FLAMES)
26
68039-01
TRIM INNER, HEAD LAMP VISOR
27
68134-97
Уплотнение
28
68329-03
BULB HALOGEN-H-4
29
73154-96BK
SOCKET HOUSING, 4-PLACE
30
73191-96
SOCKET CONTACT, 16-20 GAUGE
31
90338-01
BRACKET VISOR
32
9898
TERMINAL FEMALE FLAG (HDI)
33
53438-92
BULB POSITION LAMP (HDI)
34
67691-92
GROMMET POSITION LAMP (HDI)
35
67763-92A
LENS ASSEMBLY W/ 67685-92, 67691-92, 67705-92, 68329-03 & LENS, R.H. DIP
35
67781-92A
LENS ASSEMBLY W/ 67685-92, 67691-92, 67705-92, 68329-03 & LENS, L.H. DIP (HDI)
37
68650-92
SOCKET POSITION LAMP (HDI)
