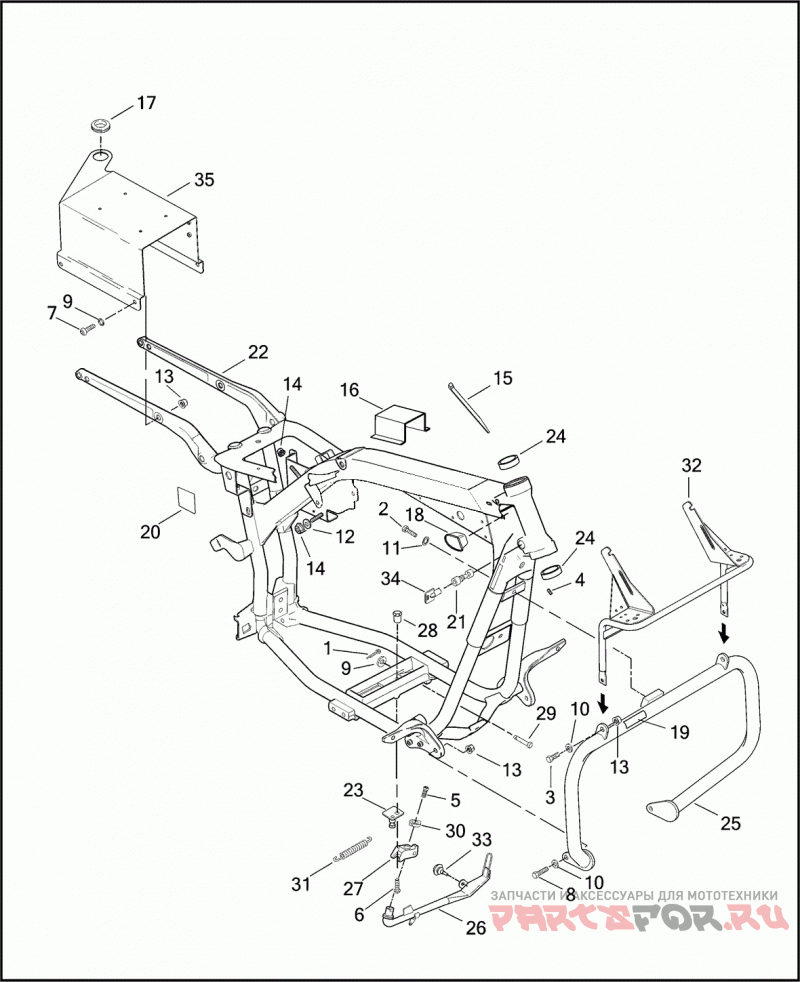

FRAME & JIFFY STAND

Harley Davidson FXDP 1GKV DYNA DEFENDER (2002)

Harley Davidson
#oem кодцена
1
554A
Шплинт
2
2851
BOLT 3/8-16 X 7/8 HEX HD. (GRADE 5)
3
2879W
BOLT 3/8-16 X 1 HEX HD. (GRADE 5)
4
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
5
3487
BOLT 5/16-24 X 5/8 HEX HD., W/LOCKPATCH
6
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
7
4103
BOLT 3/8-16 X 1-3/8 HEX BUTTON HD. (GRADE 8)
8
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
9
6379W
WASHER 3/8 X 5/8 X 3/64
10
6701
WASHER 3/8 X 13/16 X 1/16
11
7038
LOCKWASHER 3/8
12
7127
LOCKWASHER 5/16 INTERNAL TOOTH
13
7601
LOCKNUT 3/8-16 FLANGE
14
7796
NUT 5/16-18 X 1/4 EXTERNAL-TOOTH WASHER (GRADE 2)
15
10006
CABLE STRAP
15
10039
CABLE STRAP
15
10073
CABLE STRAP
16
10186
CLIP WIRE SADDLE
17
11503
Стопорное кольцо
18
11457
PLUG STEERING HEAD
19
14148-86
Лейбл
20
14273-96
IGNITION LABEL HOLE COVER
21
45680-90
LOCK FORK (SPECIFY KEY CODE)
22
47456-02
FRAME 28 DEGREE RAKE
23
47318-98
Фиксатор
24
48315-60
BEARING CUP STEERING HEAD
25
49009-01A
GUARD ENGINE ASSEMBLY
26
49710-94B
LEG JIFFY STAND, LONG
27
49720-90
PIVOT BLOCK
28
49723-98
THREADED SPACER
29
50003-89B
Штифт
30
50053-90
CATCH
31
50057-02
Пружина
32
58021-01
BRACKET MOUNTING WINDSHIELD/LAMP
33
62123-66A
Амортизатор ударов
35
76162-02
BRACKET MOUNTING RADIO
