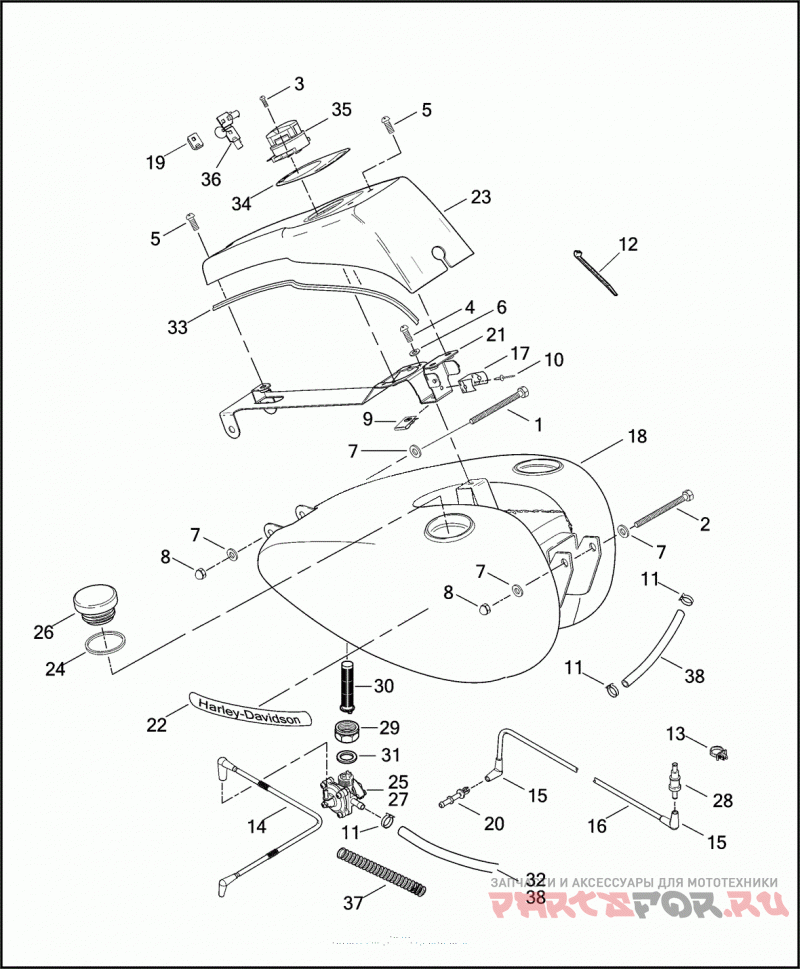

Топливный бак

Harley Davidson FXDP 1GKV DYNA DEFENDER (2002)

Harley Davidson
#oem кодцена
1
3427
BOLT 5/16-18 X 3-1/2 HEX HD. (GRADE 5)
2
4288
Болт
3
3656
SCREW NO. 8-32 X 3/8 TORX PAN HD. (GRADE 5)
4
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
5
4363
SCREW 1/4-20 X 1/2 SOCKET BUTTON HD.
6
6016
WASHER 11/32 X 11/16 X 1/16
7
6139
WASHER 3/8 X 7/8 X 1/16
8
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
9
8102
SPEEDNUT 5/16-18
10
8483A
заклёпка
11
10014
Зажим
12
10073
CABLE STRAP
13
10108
CLIP VAPOR VALVE
14
26567-99
HOSE VACUUM CARBURETOR
15
27250-96B
CONNECTOR 90 DEGREE ELBOW
16
27296-96
TUBE VALVE TO ATMOSPHERE, W/ 27250-96
17
27386-97A
CLIP FLASHER
18
61039-96
FUEL TANK (PRIME)
19
61081-92
COVER KEY HEAD SET
20
61131-92
CONNECTOR VENT LINE
21
61142-01
CONSOLE ASSEMBLY
22
61168-81A
Наклейка
23
61182-01
CONSOLE OUTER ASSEMBLY
24
61192-96A
GASKET FILLER CAP
25
61200-97
DIAPHRAGM FUEL VALVE
26
61272-92C
FILLER CAP VACUUM VENT
27
61338-02
VALVE BODY
28
62150-85
VAPOR VALVE
29
62161-02
Гайка
30
62170-02
Фильтр
31
62172-02
GASKET FUEL FILTER
32
63501-68B
HOSE 1/4 I.D. (25 ft. long) (black)
33
71301-01
GASKET OUTER CONSOLE
34
71305-01
NAMEPLATE IGNITION SWITCH
35
71313-96A
IGNITION SWITCH (SPECIFY KEY CODE)
37
62555-95
INSULATOR 1/2 INCH I.D. (NYLON) (8 FEET)
38
63501-68B
HOSE 1/4 INCH I.D. X 5/8 INCH O.D. (RUBBER) (25 FEET)
