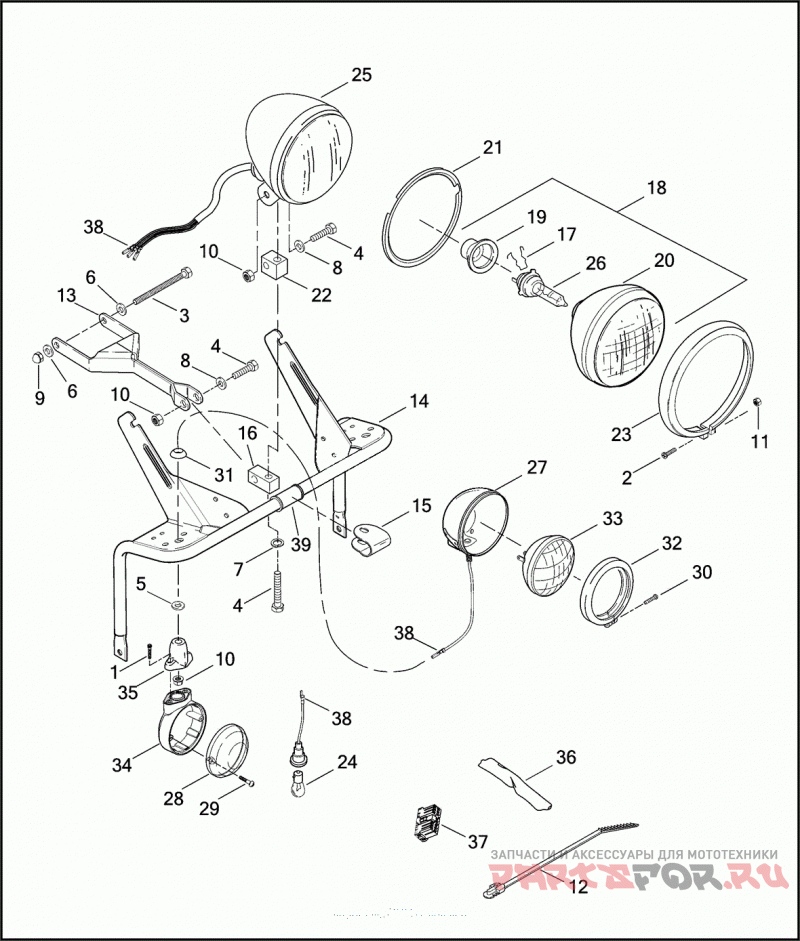

Фара

Harley Davidson FXDP 1GKV DYNA DEFENDER (2002)

Harley Davidson
#oem кодцена
1
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
2
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
3
4288
Болт
4
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
5
6019
WASHER 3/8 X 29/32 X 1/16
6
6139
WASHER 3/8 X 7/8 X 1/16
7
6400HB
WASHER 5/16 X 13/16 X 3/32
8
6701
WASHER 3/8 X 13/16 X 1/16
9
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
10
7601
LOCKNUT 3/8-16 FLANGE
11
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
12
10006
CABLE STRAP
13
58020-01
BRACKET WINDSHIELD MOUNT
14
58021-01
BRACKET ASSEMBLY WINDSHIELD/LAMP MOUNTING
15
58671-01
STRAP PURSUIT LIGHT
16
58673-01
BLOCK PURSUIT LIGHT
17
67685-92
CLIP BULB
18
67698-81D
HEADLAMP ASSEMBLY W/ BULB, BOOT & CLIP, 5-3/4 INCH, (REPLACES 67757-92)
19
67705-92
BOOT CONNECTOR
20
67757-92
LENS W/ 67685-92 (USE 67698-81D)
21
67769-93
MOUNTING RING
22
67772-97
MOUNTING BLOCK
23
67790-93A
TRIM RING (CHROME)
24
68168-89A
BULB
25
68292-01A
HEADLAMP ASSEMBLY W/ HOUSING & WIRING, 5-3/4 INCH
26
68329-03
BULB HALOGEN-H-4
27
68300-01A
AUXILIARY/PURSUIT LAMP LEFT SIDE (RED)
27
68301-01A
AUXILIARY/PURSUIT LAMP RIGHT SIDE (BLUE)
28
68440-86
Линза
29
68452-86
Винт
30
68672-38
Винт
31
68721-62
BLOCK SWIVEL
32
68725-62A
MOLDING
33
68727-64D
LAMP SEAL UNIT 12V (RED)
33
68728-64C
LAMP SEAL UNIT 12V (BLUE)
34
69098-01
DIRECTIONAL LAMP ASSEMBLY (BLACK) (USE 68766-94)
34
68766-94
DIRECTIONAL LAMP ASSEMBLY (CHROME) (REPLACES 69098-01)
35
69711-01
BRACKET LAMP MOUNTING
36
70556-71
TUBING 5/16 (CUT TO LENGTH)
37
73164-96BK
SOCKET HOUSING 14-WAY (BLACK)
38
73191-96
CONTACT SOCKET 16-20 GAUGE (REQUIRES (3) FOR 68766-94)
39
90545-01
SLEEVE RUBBER
