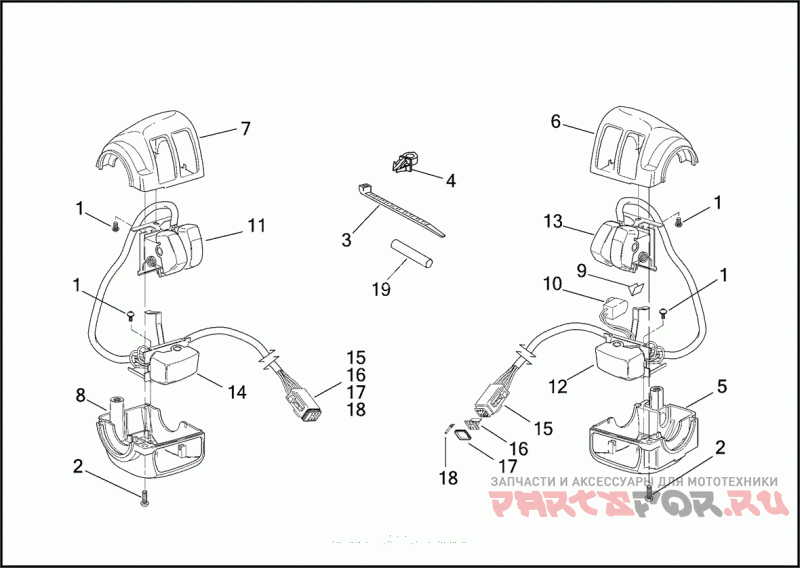

HANDLEBAR SWITCHES

Harley Davidson FXD 1GHV DYNA SUPER GLIDE (2002)

Harley Davidson
#oem кодцена
1
2955
Деталь SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
2
3658
Деталь SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
3
10181
Деталь CABLE STRAP (AS REQUIRED)
4
70345-84
Седло
5
71563-96
Деталь HOUSING LOWER - RIGHT
6
71564-96
Деталь HOUSING UPPER - RIGHT
7
71567-96
Деталь HOUSING UPPER - LEFT
8
71568-96A
Деталь HOUSING LOWER - LEFT
9
71587-04
Деталь V-CLIP
10
71621-08
Деталь STOPLAMP SWITCH KIT W/ 10181 & 72266-94
11
71682-06A
Деталь SWITCH KIT DIMMER & HORN, W/ 10181 & 72266-94
12
71683-06A
Деталь SWITCH KIT RIGHT TURN SIGNAL, W/ 10181 & 72266-94
13
71684-06A
Деталь SWITCH KIT ENGINE STOP/START, W/ 10181 & 72266-94
14
71685-06A
Деталь SWITCH KIT LEFT TURN SIGNAL, W/ 10181 & 72266-94
15
72116-94BK
Деталь PLUG 6-WAY SOCKET (BLACK)
16
72156-94
Деталь SOCKET LOCK SECONDARY, 6-WAY
17
72176-94
Деталь FRONT SEAL 6-WAY PLUG
18
72191-94
Деталь TERMINAL SOCKET
19
72266-94
Деталь HEAT SHRINK TUBE DUAL WALL, .3 X 2 INCH (AS REQUIRED)
