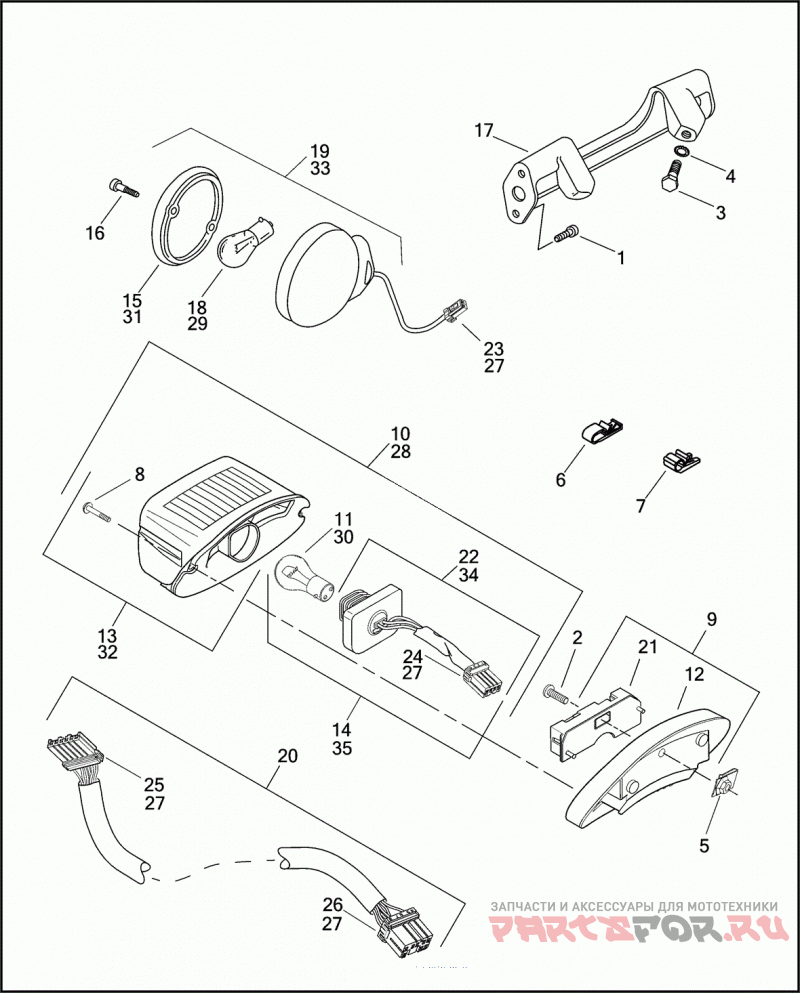

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2002)

Harley Davidson
#oem кодцена
1
2692WB
Деталь SCREW NO. 10-24 X 1/2 SOCKET FILLISTER HD. (GRADE 8)
2
3022A
Деталь SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
3
3576
Деталь SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
4
7230
Деталь LOCKWASHER 1/4 EXTERNAL TOOTH
5
7964
Деталь J-NUT
6
10183
Деталь CLIP T-STUD
7
10184
Деталь CLIP T-STUD
8
68026-99
Деталь SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
9
68066-99A
Деталь BASE ASSEMBLY TAIL LAMP, W/ 68296-99A & 68830-99A
10
68140-04
Деталь LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A
11
68168-89A
Деталь BULB TAIL LAMP
12
68296-99A
Деталь BASE TAIL LAMP (CHROME)
13
68369-03
Деталь ENVELOPE TAIL LAMP, W/ 68026-99 (USED W/ 68140-04)
14
68370-03A
Деталь SOCKET & BULB ASSEMBLY TAIL LAMP, W/ 68168-89A, 68832-99 & 73154-96BK (USED W/ 68140-04)
15
68440-86
Деталь LENS TURN SIGNAL
16
68452-86
Винт
17
68510-74C
Деталь BRACKET REAR TURN SIGNAL
18
68572-64B
Деталь BULB REAR TURN SIGNAL
19
68713-94A
Деталь LAMP ASSEMBLY REAR, W/ WIRE, LENS, BULB & LENS SCREWS (AMBER)
20
68772-99
Деталь HARNESS REAR LAMPS, W/ 73156-96BK, 73158-96BK & 73191-96
21
68830-99A
Деталь COVER CIRCUIT BOARD
22
68140-04
Деталь LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A
23
73152-96BK
Деталь HOUSING SOCKET, 2-PLACE
24
73154-96BK
Деталь HOUSING SOCKET, 4-PLACE
25
73156-96BK
Деталь HOUSING SOCKET, 6-PLACE
26
73158-96BK
Деталь HOUSING SOCKET, 8-PLACE
27
73191-96
Деталь SOCKET CONTACT, 16-20 AWG (20)
28
68142-04
Деталь LIGHT ASSEMBLY, tail lamp, w/ 68558 & 69187-03A - INTERNATIONAL MODELS ONLY
29
68163-84
Деталь BULB REAR TURN SIGNAL (USED W/68765-94A) (HDI)
29
68562-84
Деталь BULB REAR TURN SIGNAL (HDI)
30
68169-90A
Деталь BULB TAIL LAMP (HDI)
31
68506-92
Деталь LENS TURN SIGNAL (AMBER) (HDI)
32
68558-03
Деталь ENVELOPE TAIL LAMP, W/ 68026-99 (USED W/ 68142-04) (AMBER) (HDI)
33
68765-94A
Деталь LAMP ASSEMBLY REAR, W/ 68163-84, 68452-86 & 68506-92 (AMBER) (HDI)
34
68142-04
Деталь LIGHT ASSEMBLY, tail lamp, w/ 68558 & 69187-03A - INTERNATIONAL MODELS ONLY
35
69187-03A
Деталь SOCKET & BULB ASSEMBLY TAIL LAMP, W/ 68167-04 (USED W/ 68142-04) (HDI)
