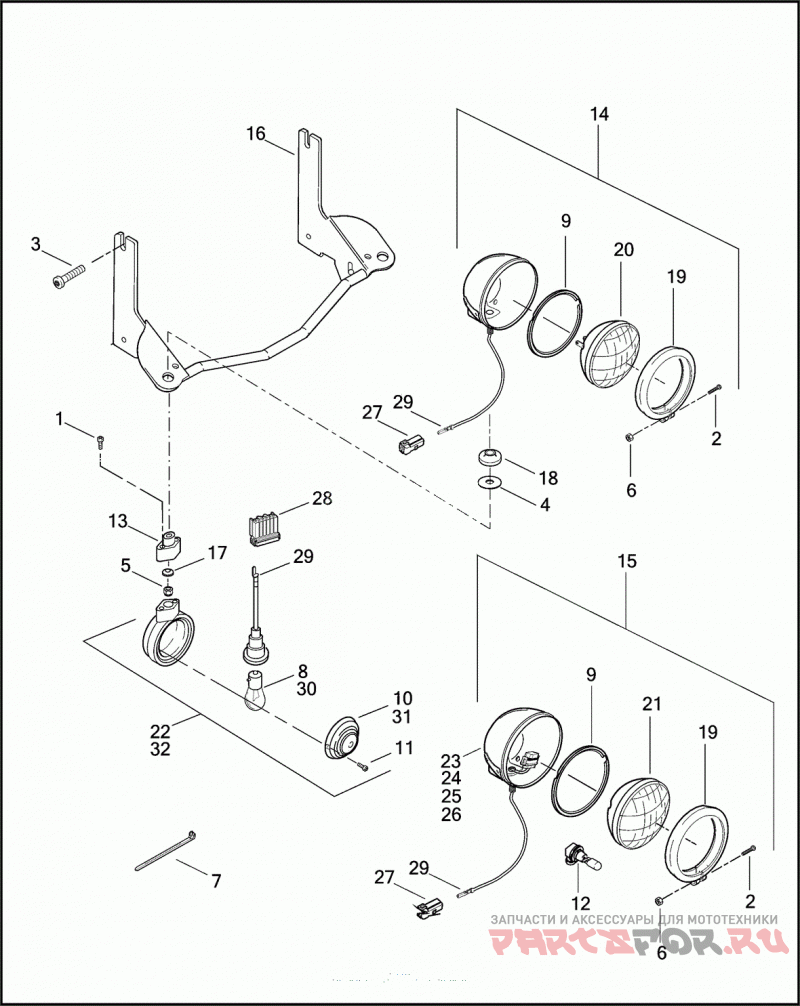

PASSING LAMPS & FRONT TURN SIGNALS

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2002)

Harley Davidson
#oem кодцена
1
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
2
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
3
3684
SCREW 5/16-18 X 1 TORX PAN HD.
4
6072
WASHER 3/8 X 1 1/4 X 5/64
5
7601
LOCKNUT 3/8-16 FLANGE
6
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
7
10006
STRAP CABLE
8
68168-89A
BULB TURN SIGNAL
9
68331-02
RING PASSING LAMPS
10
68440-86
LENS TURN SIGNAL (AMBER)
11
68452-86
Винт
12
68000056
BULB (HDI)
13
68519-68A
BRACKET MOUNTING
14
68663-64G
PURSUIT LAMP ASSEMBLY red
14
68665-84F
PURSUIT LAMP ASSEMBLY blue
15
68663-64G
LAMP PURSUIT, W/ 3514, 7606, 68331-02, 68725-62A, 68727-09A & 72160-06 (REPLACES 68663-64D) (RED)
15
68665-84F
LAMP PURSUIT, W/ 3514, 7606, 68331-02, 68725-62A, 68728-09A & 72160-06 (REPLACES 68665-84C) (BLUE)
16
68712-94A
BRACKET PURSUIT LAMPS
17
68720-62
BLOCK CLAMP, PURSUIT LAMPS
18
68721-62
BLOCK SWIVEL, PURSUIT LAMPS
19
68725-62A
MOLDING PURSUIT LAMPS
20
68727-64D
LAMP PURSUIT, SEALED UNIT (USED W/ 68663-64D) (RED)
20
68728-64C
LAMP PURSUIT, SEALED UNIT (USED W/ 68665-84C) (BLUE)
21
68727-09A
LAMP PURSUIT, HALOGEN, W/ 68453-05 (USED W/ 68663-64G) (RED)
21
68728-09A
LAMP PURSUIT, HALOGEN, W/ 68453-05 (USED W/ 68665-84F) (BLUE)
22
68766-94
TURN SIGNAL ASSEMBLY W/ 68168-89A, 68440-86 & 68452-86
23
72160-06
HOUSING AUXILIARY LAMP, W/ 72161-06, 72298-95 & 72356-95 (USED W/ 68663-64G & 68665-84F)
24
72161-06
HOUSING SOCKET, 2-WAY (USED W/ 68663-64G & 68665-84F)
25
72298-95
SEAL CABLE (USED W/ 68663-64G & 68665-84F) (GREEN)
26
72356-95
TERMINAL SOCKET, 18-20 GAUGE (USED W/ 68663-64G & 68665-84F)
27
73152-96WE
HOUSING SOCKET, 2-WAY (WHITE)
28
73156-96BK
HOUSING SOCKET, 6-WAY (BLACK)
29
73191-96
CONTACT SOCKET
30
68163-84
BULB TURN SIGNAL (JAPAN)
31
68505-90
LENS TURN SIGNAL (AMBER) (JAPAN)
32
68767-94
TURN SIGNAL ASSEMBLY W/ 68440-86, 72160-06 & 72298-95 (JAPAN)
