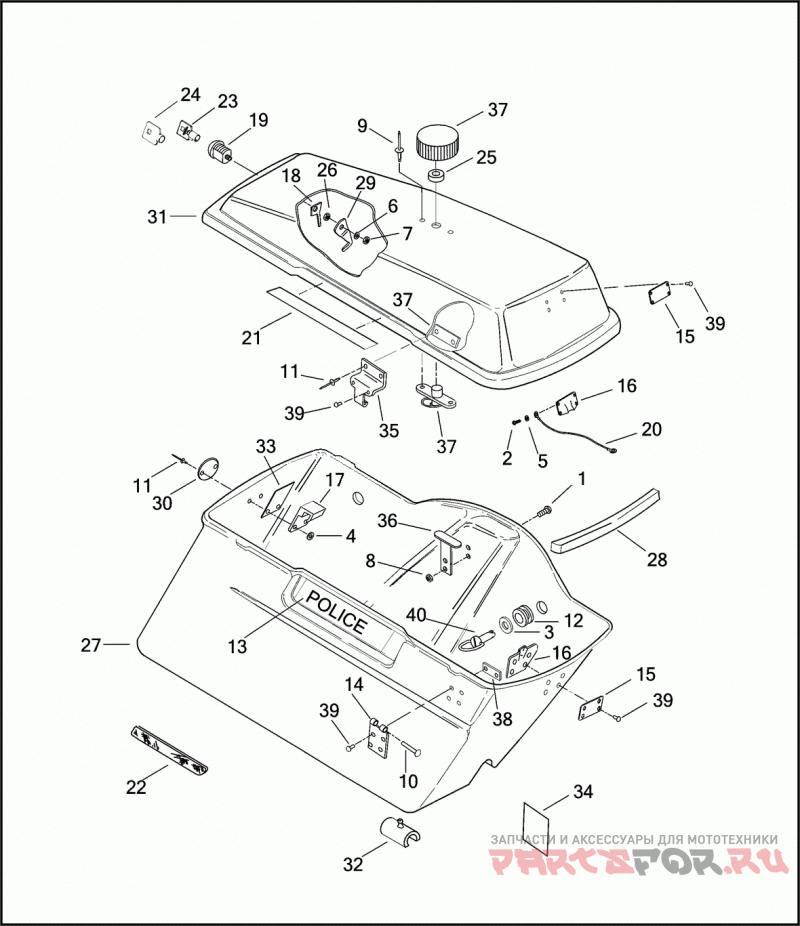

Кофры боковые

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2002)

Harley Davidson
#oem кодцена
1
2664
SCREW NO. 10-24 X 7/16 POZIDRIV PAN HD. (GRADE 2)
2
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
3
6229W
WASHER 5/16 X 1-1/16 X 3/64
4
6368
WASHER 1/8 X 3/8 X 1/16
5
6970
WASHER 1/4 X 1/2 X 1/16 SPRING
6
7128
LOCKWASHER 9/32 INTERNAL TOOTH
7
7586
JAMNUT 9/32-28 X 1/4
8
7838
NUT NO. 10-24 KEPS
9
8483A
заклёпка
10
8502
заклёпка
11
8551
заклёпка
12
11464
GROMMET ISOLATOR
13
14274-93A
DECAL RIGHT (POLICE)
13
14275-93A
DECAL LEFT (POLICE)
13
59223-93A
DECAL RIGHT (SHERIFF)
13
59224-93A
DECAL LEFT (SHERIFF)
14
53427-80
HINGE
15
53478-80
PLATE BACKING
16
53563-82
BRACKET CABLE BRACE MOUNTING
17
53616-85
CATCH
18
53617-85
GUIDE LATCH
19
53848-00
LOCK SET T-PAK, (SPECIFY 4-DIGIT CODE)
19
53562-93A
LOCK SET COMPLETE W/ KEYS, KEY COVERS, CAM LOCK, IGNITION SWITCH, FORK LOCK, CAM LOCK & 10065
20
53861-93
BRACE CABLE, COVER
21
59221-93
COVER DECAL, LEFT
21
59222-93
COVER DECAL, RIGHT
22
59287-92
REFLECTOR RIGHT (RED)
22
59288-92
REFLECTOR LEFT (RED)
24
61081-92
COVER KEY HEAD SET
25
79048-98
SEAL LATCH
26
84850-92
NUT 3/4-24 X 5/32
27
90634-93
BOTTOM SADDLEBAG, RIGHT (PRIMED)
27
90796-93
BOTTOM SADDLEBAG, LEFT (PRIMED)
28
90675-93A
GASKET SADDLEBAG COVER
29
90686-92
HOOK CAM
30
90687-85
PLATE REINFORCING
31
90754-93
COVER SADDLEBAG, RIGHT (PRIMED)
31
90776-93
COVER SADDLEBAG, LEFT (PRIMED)
32
90764-93
CUSHION SADDLEBAG SUPPORT
33
90798-99
Прокладка
34
90820-93D
LABEL LOAD LIMITS
35
90902-93
HINGE PLATE
36
90926-84
BRACKET SPRING LATCH
37
90929-84
LATCH SPRING, W/ KNOB
38
90964-63
PLATE BACKING
39
90965-63
заклёпка
40
10900026
BAIL HEAD STUD (NOTE: REMOVE BAIL FOR HDI SALE, EXCLUDING JAPAN)
