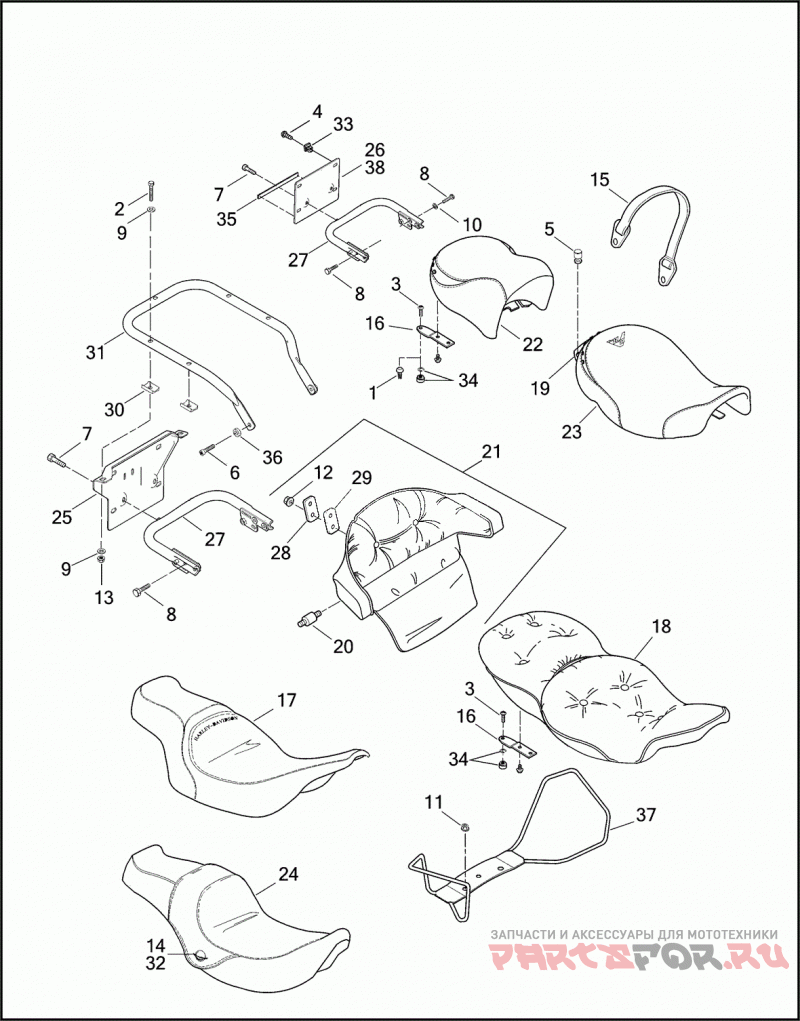

SEATS & REAR FRAME RAILS

Harley Davidson FLHTCUI 1FCW ULTRA CLASSIC (2002)

Harley Davidson
#oem кодцена
2
2821
SCREW 1/4-20 X 2-1/4 HEX HD. (GRADE 5)
3
2952A
SCREW 1/4-20 X 1/2 SEMS TRUSS HD.
4
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
7
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
8
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
9
6703
WASHER 1/4 X 5/8 X 1/16
10
7127
LOCKWASHER 5/16 INTERNAL TOOTH
11
7499
NUT 1/4-20 LARGE FLANGE
12
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
13
7887
LOCKNUT 1/4-20 NYLON
16
51652-97A
BRACKET PASSENGER SEAT
18
51704-05
SEAT (BLACK) W/ BRACKET & SCREWS
19
52015-97A
BRACKET KIT SEAT MOUNTING
20
52192-86A
ISOLATOR SET PASSENGER BACKREST
21
52201-97C
BACKREST KIT W/ 10 & 16 (BLACK)
25
53375-97A
LICENSE PLATE HOLDER
27
53422-97
SUPPORT TUBE BOTTOM
28
53515-86
BACKING PLATE
29
53517-86
CUSHION PLATE
30
53799-99
Проставка
31
53801-98
SUPPORT TUBE TOP
33
59292-94
NUT LICENSE PLATE (PLASTIC)
34
59768-97
SEAT NUT KIT W/ RETENTION WASHER
35
59988-72A
REFLECTOR (RED)
36
61135-57
Проставка
37
91583-99
HANDRAIL PASSENGER
