  5. FLHTCI 1FFW ELECTRA GLIDE CLASSIC (2002)

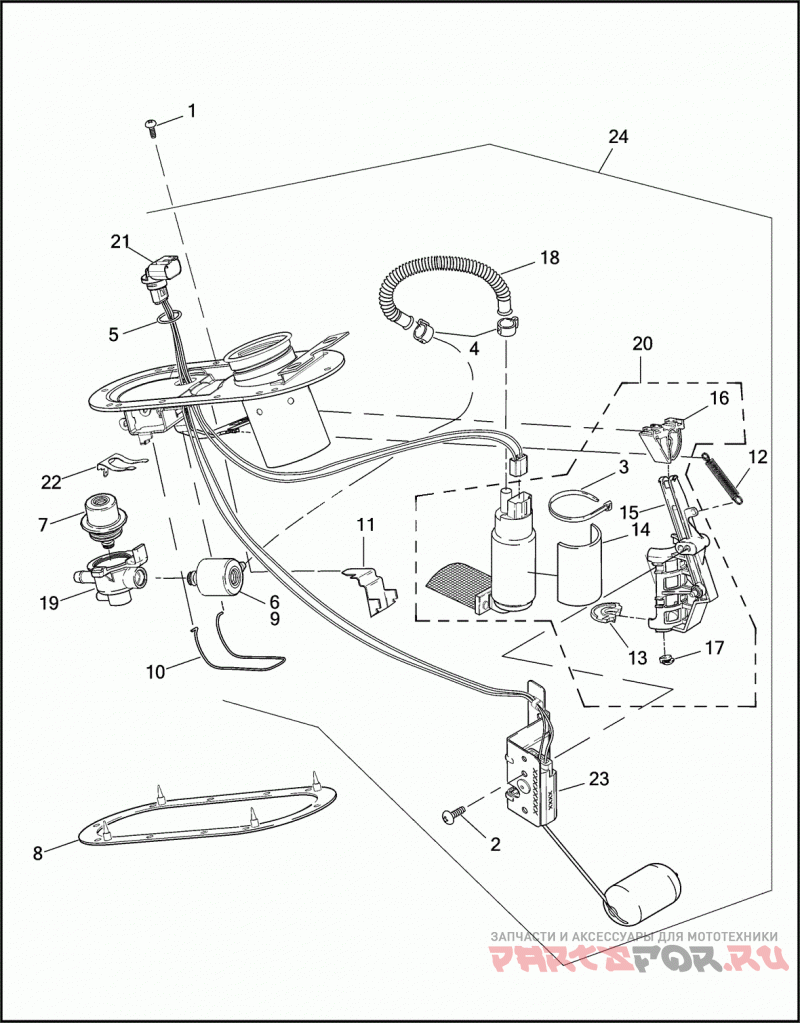

FUEL PUMP, FUEL INJECTED - FLHTCUI, FLHTCI & FLTRI

Harley Davidson FLHTCI 1FFW ELECTRA GLIDE CLASSIC (2002)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
1314
SCREW K50-2.24 X 17.25MM TORX TRUSS HD.
3
10006
CABLE STRAP PUMP
4
10222
CLAMP 8MM
5
11117A
Уплотнительное кольцо
6
11351
Уплотнительное кольцо
7
27408-01
Регулятор
8
61402-02
GASKET SENDING UNIT
9
61001-01
FUEL FILTER KIT
10
61209-01A
BAIL
11
61231-01
BRACKET BAIL
12
61583-02
Пружина
13
61960-00
RUBBER CUSHION
14
61961-00
RUBBER SLEEVE
15
62163-01A
HOUSING FUEL PUMP
16
62165-01
ENDCAP HOUSING FUEL PUMP
17
62188-01
SPACER RUBBER
18
62357-00
HOSE PUMP TO FILTER
19
62373-01
REGULATOR HOUSING
20
62897-01B
PUMP ASSEMBLY FUEL, W/ 3, 13, 14, 15, 16 & 17
21
72439-00B
HEADER ASSEMBLY 3-WAY
22
72458-00
CLIP CONNECTOR
23
75071-02
SENDING UNIT FUEL GAUGE
24
75126-02C
FUEL PUMP SENDER & FILTER MODULE, (INCLUDES ALL OF ABOVE EXCEPT 1 & 8, BUT INCLUDING TOP PLATE)
