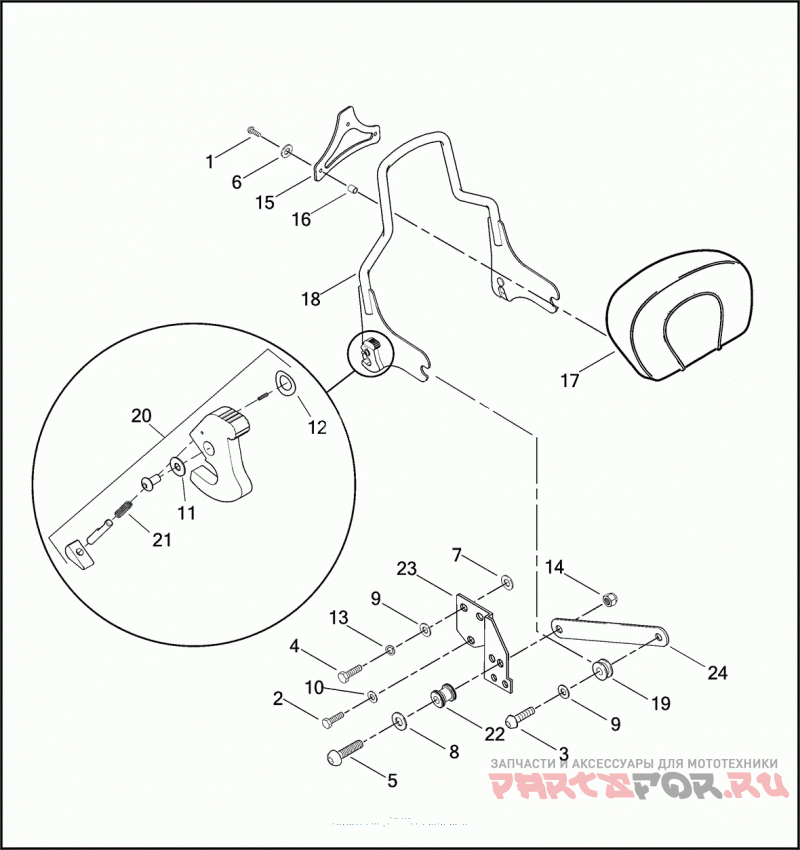

PASSENGER BACKREST

Harley Davidson FLHRSEI 1PDC CVO ROAD KING (2002)

Harley Davidson
#oem кодцена
1
1327
SCREW 1/4-20 X 1-1/4 SOCKET BUTTON HD.
2
3802W
BOLT 1/4-20 X 7/8 HEX HD. (GRADE 5)
3
4016
SCREW 5/16-18 X 1.0 SOCKET BUTTON HD.
4
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
5
4224
Винт
6
6099
WASHER 1/4 X 7/16 X 1/16
7
6116
WASHER 5/16 X 16/16 X 1/8
8
6701
WASHER 3/8 X 13/16 X 1/16
9
6702
WASHER 5/16 X 11/16 X 1/16
10
6703
WASHER 1/4 X 5/8 X 1/16
11
6827
WASHER 13/16 X 1/2 X 1/32
12
6828
Шайба
13
7041
LOCKWASHER 5/16
14
7667
NUT 3/8-16 X 9/32 X 9/16 NYLON INSERT
15
52565-94
BRACKET MOUNTING, PAD
16
52576-94
Проставка
17
52600-02A
PAD BACKREST, PASSENGER
18
52933-97C
BACKREST KIT, DETACH, STANDARD HEIGHT
19
53123-96
BUSHING DOCKING POINT, FRONT
20
50300108
KIT-SERVICE,LATCH,DETACH
21
53602-95
SPRING COMPRESSION
22
53684-96A
BUSHING DOCKING POINT, REAR
23
53758-96B
BRACKET MOUNTING, DOCKING POINT, LEFT
23
53759-96B
BRACKET MOUNTING, DOCKING POINT, RIGHT
24
53805-99
BRACKET DOCKING POINT
