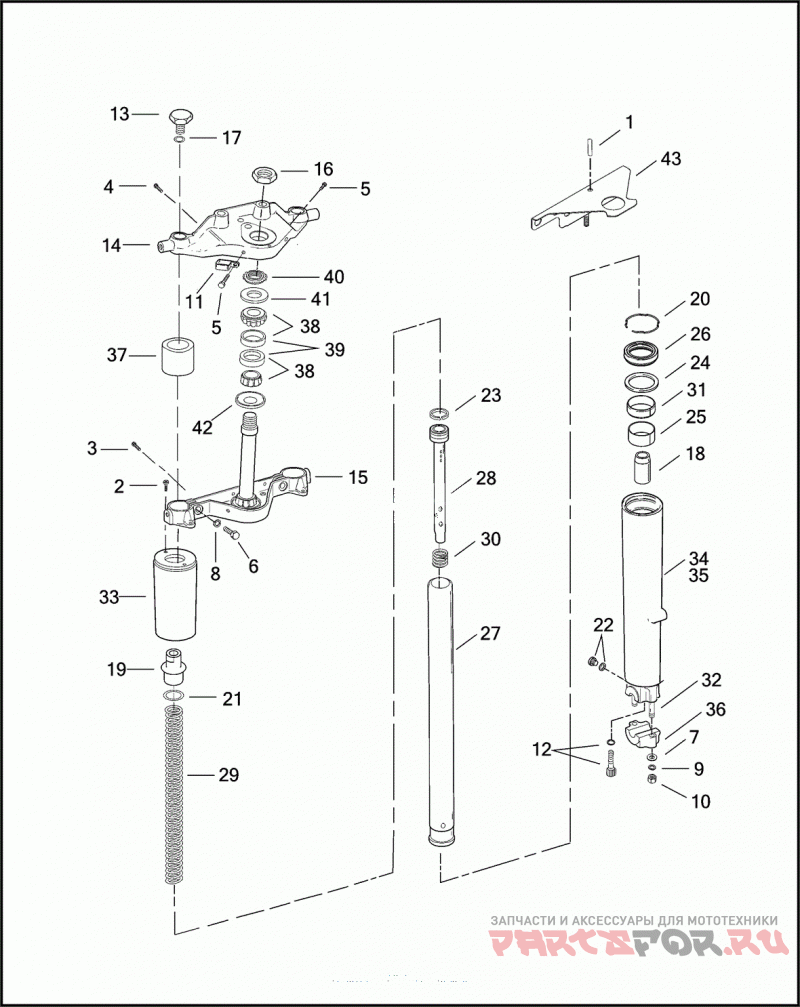

FRONT FORK - RIGHT

Harley Davidson FLHRSEI 1PDC CVO ROAD KING (2002)

Harley Davidson
#oem кодцена
1
608
PIN ROLL
2
3537
SCREW 1/4-28 X 1/2 FLANGE HD., W/LOCKPATCH
3
3892
SCREW 1/4 X 5/8 SELF-TAPPING
4
4124
SCREW NO. 10 X 5/8 SELF-TAPPING
5
4240
SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER
6
4752
BOLT 7/16-14 X 1-1/4 HEX HD. (GRADE 8)
7
6702
WASHER 5/16 X 11/16 X 1/16
8
7039
LOCKWASHER 7/16
9
7041
LOCKWASHER 5/16
10
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
11
27070-02
Зажим
12
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
13
45419-80
BOLT FORK
14
45435-95
BRACKET UPPER FORK
15
45446-87A
BRACKET KIT FORK STEM, W/ 3265A, 3892, 4752, 48365-48A & BEARING CONE
16
45718-60
NUT 1-24 X 1.5 X 0.47
17
45733-48
WASHER RUBBER
18
45803-97
LOWER LOWER
19
45838-77
BOLT FRONT FORK
20
45842-77A
RING RETAINING, OIL SEAL
21
45845-77
O-RING SLIDER TUBE PLUG
22
45858-77
SCREW DRAIN
23
45859-77A
RING DAMPER TUBE
24
45865-84
SPACER SLIDER
25
45866-84
BUSHING SLIDER
26
45875-84A
SEAL OIL
27
45890-97
TUBE SLIDER
28
45891-97
TUBE DAMPER
29
45892-02
Пружина
30
45933-86
SPRING REBOUND
31
45940-84
BUSHING SLIDER
32
45998-73
Шпилька
33
46205-00
COVER SLIDER (CHROME)
34
46241-02A
FORK ASSEMBLY COMPLETE, RIGHT
36
46499-00
HOLDER AXLE, RIGHT SLIDER
37
47530-79B
STOP FORK (RUBBER)
38
48300-60
BEARING KIT ROLLER, W/ 48315-60
39
48315-60
CUP BEARING
40
48333-80
ADJUSTER BEARING
41
48361-80
SHIELD DUST, BEARING, UPPER
42
48365-48A
SHIELD DUST, BEARING, LOWER
43
72332-02A
BRACKET MOUNTING
