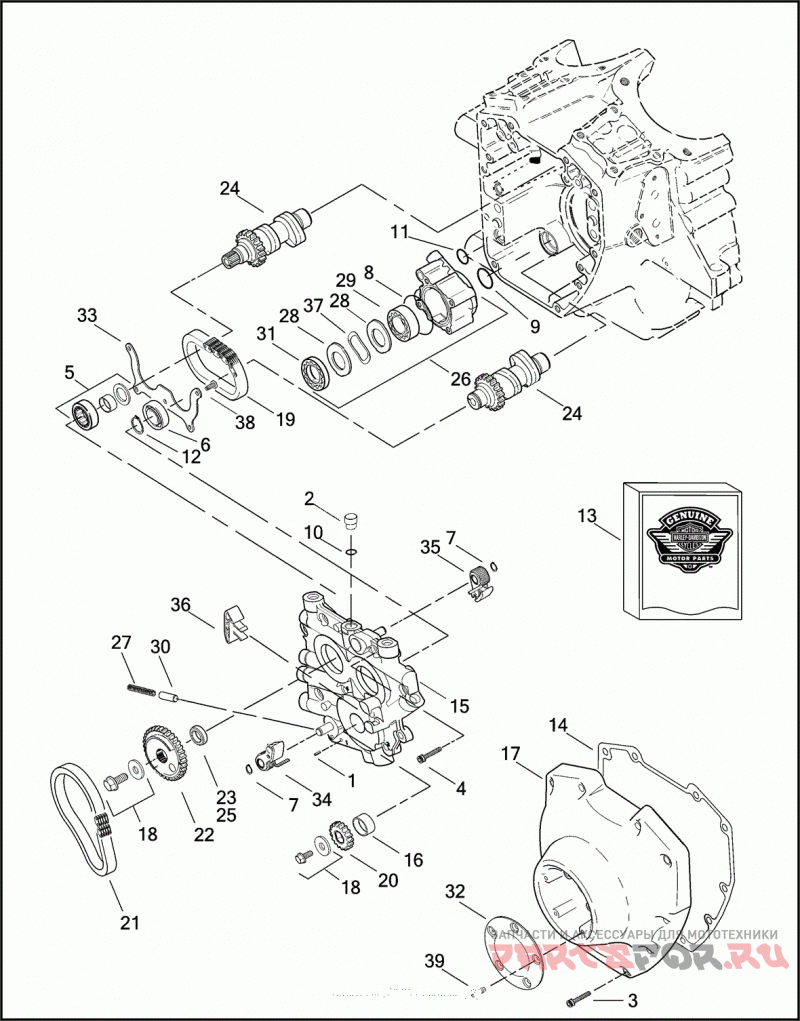

CAMSHAFTS AND CAM COVER - 1550

Harley Davidson FLHRSEI 1PDC CVO ROAD KING (2002)

Harley Davidson
#oem кодцена
1
601
Деталь PIN ROLL
2
3290
Деталь PLUG CAM SUPPORT PLATE
3
4740A
Деталь SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8)
4
4741A
Деталь SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH
5
8983
Деталь BEARING ASSEMBLY ROLLER, REAR CAMSHAFT, W/ THRUST WASHER & O-RING
6
8990A
Деталь BEARING BALL, FRONT CAMSHAFT
7
11031
Деталь RING RETAINING
8
11286
Уплотнительное кольцо
9
11293
Уплотнительное кольцо
10
11298
Деталь O-RING VITON
11
11301
Уплотнительное кольцо
12
11494
Деталь RING RETAINING
13
17045-99D
Деталь GASKET KIT CAM SERVICE, W/ 1, 5, 6, 7, 8, 10, 11, 12 & 14
14
25244-99A
Деталь GASKET CAM COVER
15
25284-11
Деталь KIT-CAM PLATE,HYBRID,W/HI-VOL OILPMP
16
25344-99
Деталь BUSHING CRANKSHAFT
17
25369-01B
Деталь COVER CAM (CHROME)
18
25533-99A
Деталь HARDWARE KIT DRIVE SPROCKET, CAMSHAFT, W/ 2 SCREWS & WASHERS
19
25607-99
Деталь CHAIN SECONDARY CAM DRIVE
20
25609-99
Деталь SPROCKET CAM DRIVE ON CRANKSHAFT, 17-TOOTH
21
25610-99
Деталь CHAIN PRIMARY CAM DRIVE
22
25716-99
Деталь SPROCKET CAM DRIVE, 34-TOOTH
23
25717-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.327 INCH THICK (USE AS REQUIRED)
23
25719-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.317 INCH THICK (USE AS REQUIRED)
23
25721-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.307 INCH THICK (USE AS REQUIRED)
23
25722-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.287 INCH THICK (USE AS REQUIRED)
23
25723-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.297 INCH THICK (USE AS REQUIRED)
24
25937-99B
Деталь CAMSHAFT KIT SE203, INCLUDES FRONT & REAR CAMSHAFT
25
25938-00
Деталь SPACER KIT ALIGNMENT, DRIVE SPROCKET, W/ ALL OF INDEX 23
26
26035-99B
Деталь PUMP ASSEMBLY OIL, W/ 26248-00, 26255-00, 26464-99 & 40323-00
27
26210-99
Деталь SPRING RELIEF VALVE
28
26248-00
Деталь PLATE SEPARATOR, GEROTOR
29
26255-00
Деталь GEROTOR ASSEMBLY SCAVENGE
30
26400-82B
Деталь VALVE RELIEF, OIL PUMP
31
26464-99
Деталь GEROTOR ASSEMBLY PRESSURE
32
32573-02
Деталь COVER SENSOR, CAM POSITION (BRANDY WINE)
32
32575-02
Деталь COVER SENSOR, CAM POSITION (PURPLE)
33
35060-00
Деталь PLATE BEARING RETAINING
34
39954-99A
Деталь TENSIONER CHAIN, PRIMARY CAM DRIVE CHAIN
35
39964-99A
Деталь TENSIONER CHAIN, SECONDARY CAM DRIVE CHAIN
36
39965-99
Деталь GUIDE GUIDE
37
40323-00
Деталь SPRING SEPARATOR
38
68042-99
Деталь SCREW NO. 8-32 X 3/8 TORX HD.
39
68120-00
Деталь SCREW NO. 8-32 X 1-2 TORX HD., SELF-TAPPING
