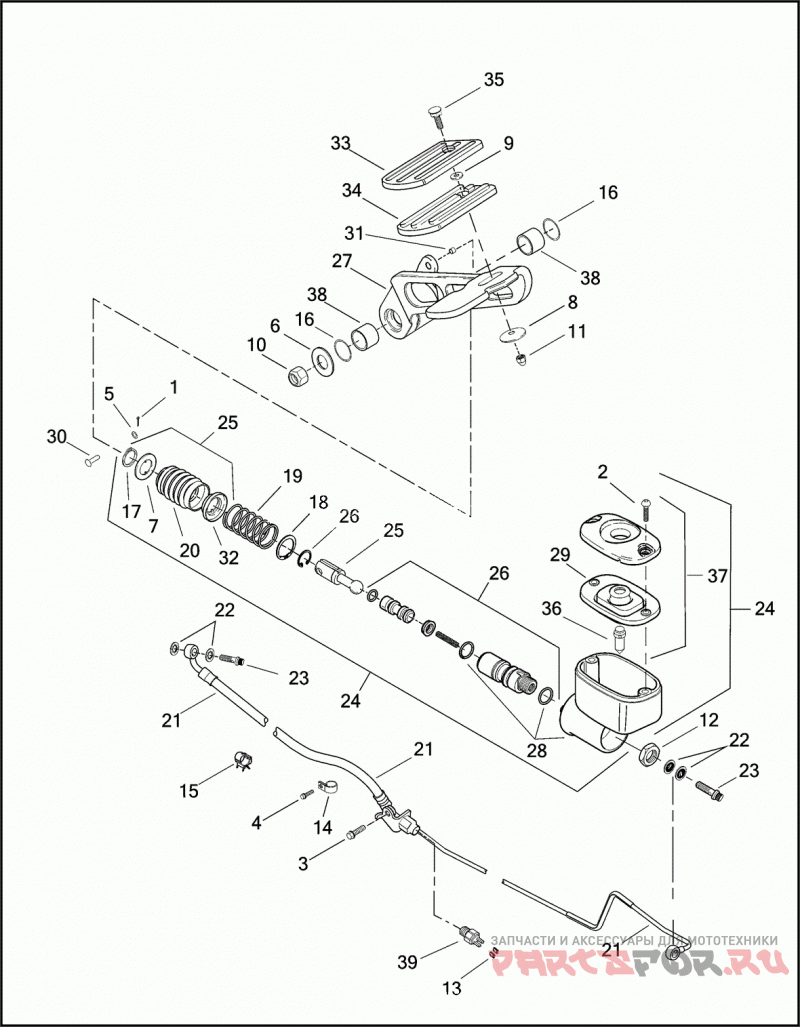

Тормозной цилиндр задний

Harley Davidson FLHRSEI 1PDC CVO ROAD KING (2002)

Harley Davidson
#oem кодцена
1
515
PIN COTTER
2
2573
SCREW NO. 8-32 X 5/8 PAN HD.
2
2579A
SCREW NO. 8-32 X 5/16 POZIDRIV OVAL HD.
3
3588
SCREW 1/4-20 X 1/2 HEX FLANGE HD.
4
4240
SCREW NO. 10-24 X 3/16 HEX HD., W/WASHER
5
6220W
WASHER 1/4 X 7/16 X 1/32
6
6334
WASHER 7/16 X 29/32 X 1/16
7
6366
WASHER 1/2 X 1-1/4 X 3/32
8
6421
WASHER 21/64 X 1-1/2 X 1/16 OFFSET 7/32
9
6422
Шайба
10
7825
LOCKNUT 7/16-20 X 7/16 X 5/8
11
7946
ACORN NUT 5/16-18
12
7951
JAMNUT 3/4-16 X 17/64 X 1-7/64 (GRADE 2)
13
9907
TERMINAL WIRE
14
10031
Зажим
15
10108
CLIP BRAKE HOSE
16
11364
Уплотнительное кольцо
17
11688
RING RETAINING
18
40918-87
RING RETAINING
19
40920-87
SPRING BRAKE, ROD RETURN
20
40922-87A
BOOT REAR MASTER CYLINDER
21
40971-00B
BRAKE LINE ASSEMBLY REAR
22
41731-01
Прокладка
23
41747-82A
BOLT BANJO
24
41754-00F
MSTR CYL ASY,RR BRAKE/CHRM
25
41957-97A
PUSH ROD KIT W/ 11688
26
42382-87E
REPAIR KIT master cylinder
27
42407-02
LEVER FOOT BRAKE, W/ 57217-02
28
42454-99A
RESERVOIR MASTER CYLINDER, W/ O-RINGS
29
46458-05
COVER KIT RESERVOIR, W/ 42568-05A
29
42568-05A
GASKET MASTER CYLINDER RESERVOIR (USED W/ 45149-99C)
30
42460-80B
PIN CLEVIS (USED W/ 41754-00)
31
42644-00
BUSHING BRAKE LEVER
32
44126-87
RETAINER BRAKE RETURN SPRING
33
44227-95
COVER BRAKE PEDAL (CHROME)
34
44228-95
TREAD BRAKE PEDAL, RUBBER (USE 42676-02)
35
44229-95
BOLT BLACK, W/ BAR & SHIELD LOGO
36
45042-96
SIGHT GLASS RESERVOIR (USED W/ 41754-00)
37
45149-99C
COVER KIT RESERVOIR (CHROME)
38
57217-02A
BUSHING BRAKE LEVER
39
72023-51E
SWITCH STOP LAMP, REAR, W/ 9907
