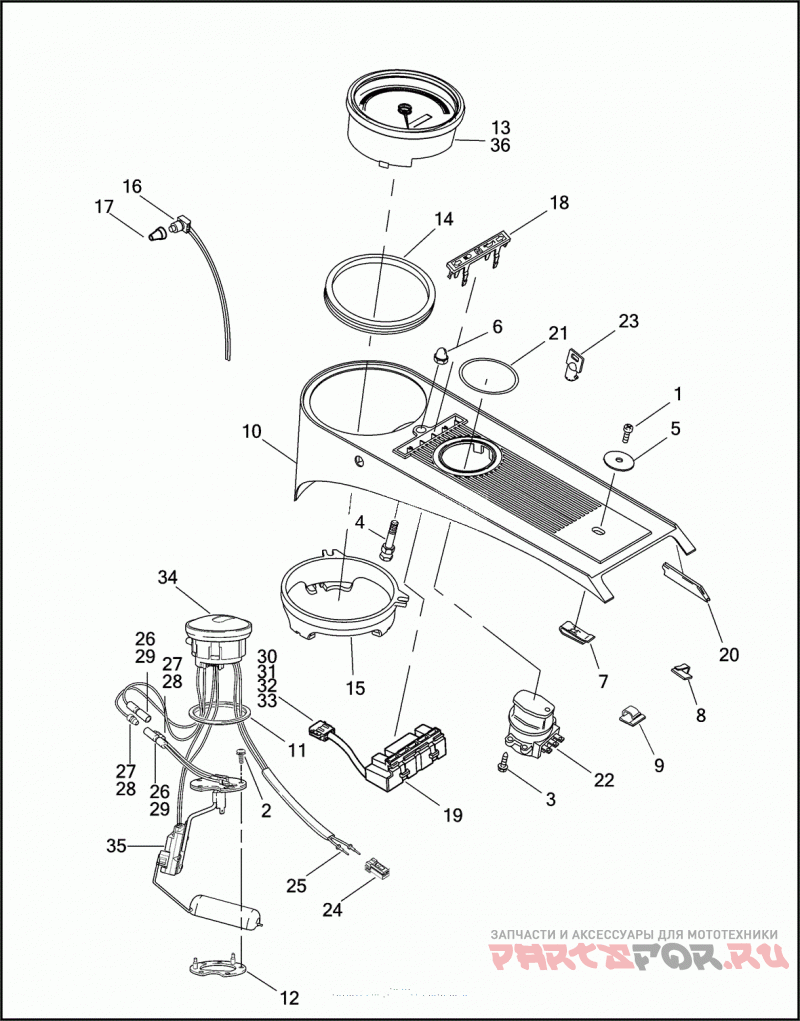

FUEL TANK INSTRUMENTS - FLHR

Harley Davidson FLHR 1FDV ROAD KING (2002)

Harley Davidson
#oem кодцена
1
1000
SCREW 1/4-20 X 5/8 PAN HD.
2
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
3
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
4
3317
Шпилька
5
6279A
WASHER 1/4 X 1-1/2 X 1/16
6
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
7
7964
STAKED NUT J-TYPE
8
10103
Зажим
9
10120
Зажим
10
60960-99
INSTRUMENT PANEL
11
61192-96A
GASKET FUEL GAUGE
12
61324-01
GASKET FUEL SENDER
13
67033-99A
SPEEDOMETER ASSEMBLY MPH
14
67190-89
SEAL SPEEDOMETER
15
67271-99
BACK CLAMP
16
67854-98
SWITCH ODOMETER RESET
17
67880-94
BOOT ODOMETER RESET SWITCH
18
68112-99A
INDICATOR BEZEL
19
68113-99C
HOUSING ASSEMBLY W/ LED LIGHTS, ELECTRICAL CONNECTOR & BEZEL
20
71001-94
Планка
21
71307-94A
NAMEPLATE IGNITION SWITCH
22
71313-96A
IGNITION SWITCH W/ KEY (SPECIFY KEY CODE)
24
72904-01BK
PIN HOUSING 4-WAY
25
72990-01
PIN TERMINAL
26
73165-01
TERMINAL SOCKET
27
73166-01
TERMINAL PIN
28
73167-01
TERMINAL BOOT, MALE
29
73168-01
TERMINAL BOOT, FEMALE
30
74118-98BK
SOCKET HOUSING 8-WAY, BLACK
31
74158-98
SECONDARY LOCK 8-WAY SOCKET HOUSING
32
74191-98
SOCKET TERMINAL
33
74195-98
SEAL PIN
34
75049-01A
FUEL GAUGE
35
75062-01
SENDING UNIT W/ GASKET
36
67197-99A
SPEEDOMETER KPH (HDI ONLY)
36
67196-99A
SPEEDOMETER MPH/KPH (HDI ONLY)
