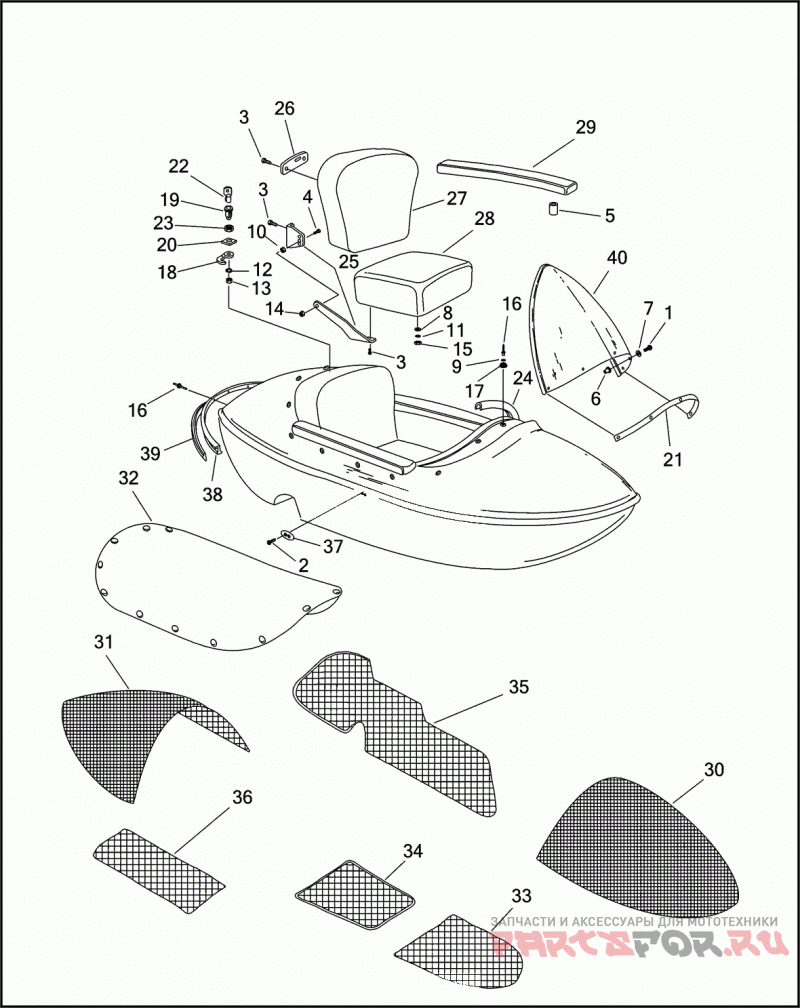

SIDECAR BODY

Harley Davidson SIDECAR FOR FLHT/I 8SLX FLHT/I SIDECAR (2001)

Harley Davidson
#oem кодцена
1
933
SCREW NO. 10-32 X 15/16 POZIDRIV TRUSS HD. (GRADE 2)
2
2216W
SCREW NO. 4-24 X 1/2 PHILLIPS OVAL COUNTERSINK HD., SELF-TAPPING
3
2420
SCREW 1/4-20 X 3/4 TRUSS HD. (GRADE 2)
4
2773
SCREW 1/4-20 X 1/2 POZIDRIV PAN HD. (GRADE 2)
5
2920
SCREW 1/4-20 X 3/4 PAN HD.
6
5207
WELL NUT
7
6054
WASHER 3/16 X 9/16 X 1/16 NYLON (BLACK)
8
6238
WASHER 11/32 X 1-1/8 X 5/64
9
6335
WASHER NO. 4 X 5/16 X 1/32
10
6410
WASHER 1/4 X 9/16 X 1/16 NYLON
11
7036
WASHER 1/4 X 31/64 X 1/16
12
7128
LOCKWASHER 9/32 INTERNAL TOOTH
13
7586
JAMNUT 9/32-28 X 1/4
14
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
15
7688
NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
16
8700
Поп-Заклепки
17
47076-72
SNAP BASE
18
53583-92
CAM HOOK
19
53848-00
LOCK W/ 12 & 13 (SPECIFY KEY CODE)
20
53617-85
GUIDE LOCK
21
58717-79
FOAM STRIP
23
84850-92
NUT 3/4-24 X 5/32
24
88425-67
TRIM STRIP BODY TOP (BLACK)
25
88426-91
HINGE ASSEMBLY SEAT, RIGHT
25
88427-91
HINGE ASSEMBLY SEAT, LEFT
26
88428-91
LOCKPLATE
27
88481-91
BACK CUSHION
28
88487-91
SEAT CUSHION
29
88503-91A
ARM REST CUSHION LEFT
29
88504-91A
ARM REST CUSHION RIGHT
30
88526-91
CARPET TOP FRONT
31
88527-91
CARPET TOP REAR
32
88528-91
COVER SIDECAR BODY
33
88531-91
CARPET NOSE
34
88536-91
CARPET FRONT LOWER
35
88537-91
CARPET LEFT SIDE
35
88538-91
CARPET RIGHT SIDE
36
88539-91
CARPET REAR LOWER
37
88695-67
RETAINER CLIP SIDECAR TRIM STRIP
38
88696-67
TRIM CHANNEL KIT (5-PIECE)
39
88698-67
CHANNEL INSERT TRIM STRIP (BLACK VINYL)
40
88862-91
WINDSHIELD ONLY
