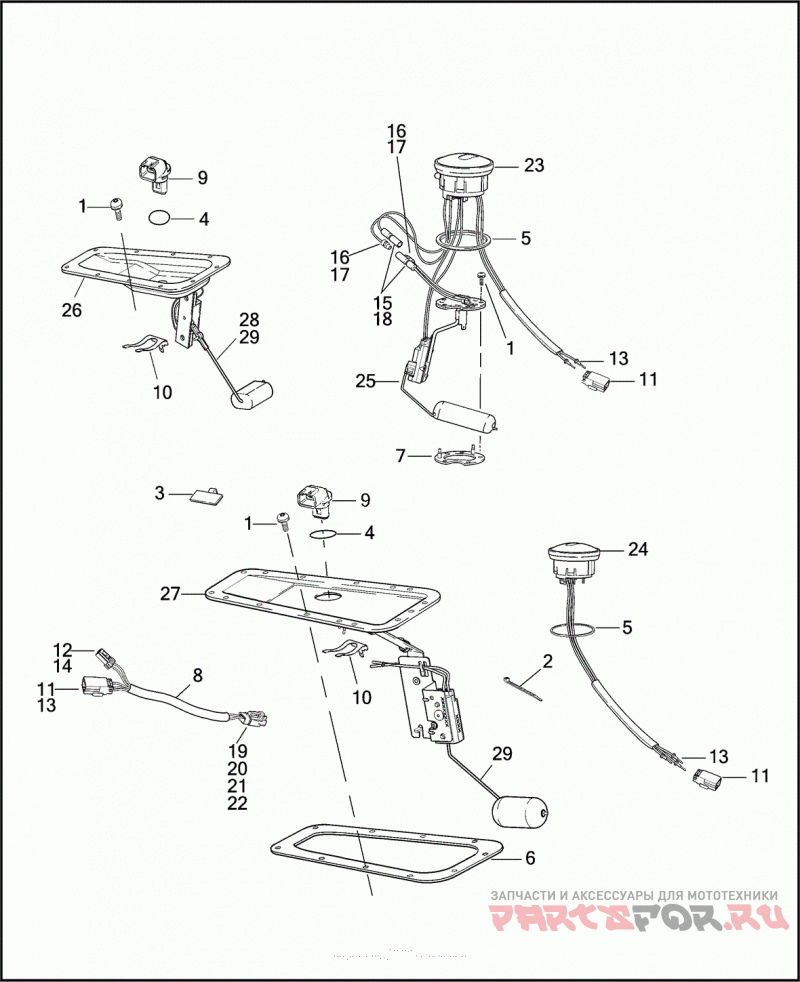

SENDING UNITS - CARBURETED MODELS

Harley Davidson FXSTD 1BSY SOFTAIL DEUCE (2001)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
10065
CABLE STRAP
3
10102
CLIP ADHESIVE BACK
3
10103
CLIP ADHESIVE BACK
4
11117A
O-RING (USED W/ 75129-00A)
4
11380
O-RING (USED W/ 75129-00C)
5
61192-96A
GASKET CAP GAUGE
6
61623-00
GASKET TOP PLATE
8
70280-01
HARNESS FUEL GAUGE TO SENDING UNIT
9
72439-00B
CONNECTOR ASSEMBLY KIT 3-WAY, W/ 72458-00
10
72458-00
CONNECTOR KIT W/ 11380
11
72904-01BK
PIN HOUSING 4-WAY
12
72914-01BK
SOCKET HOUSING 4-WAY
13
72990-01
PIN TERMINAL
14
72991-01
TERMINAL SOCKET
19
74113-98BK
SOCKET HOUSING 3-WAY (BLACK)
20
74153-98
SECONDARY LOCK 3-WAY SOCKET
21
74191-98
SOCKET TERMINAL
22
74195-98
SEAL PIN
24
75053-01B
FUEL GAUGE
26
75129-00C
TOP PLATE FUEL LEVEL SENDER W/ 10065, 11380, 72435-00 & 72437-00
27
75129-00C
TOP PLATE ASSEMBLY W/ 10065, 11380, 72439-00B & SENDING UNIT (REPLACES 75129-00A)
28
75142-01A
FUEL GAUGE SENDING UNIT
29
75206-01A
FUEL LEVEL SENDER KIT W/ 75142-01
