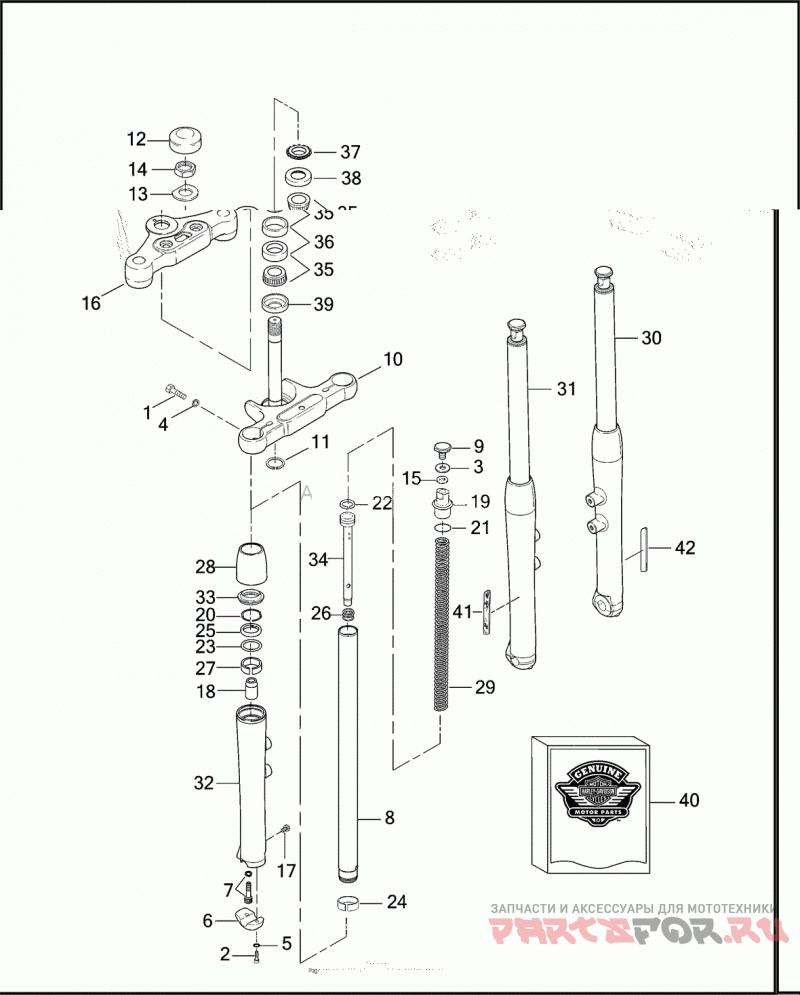

FRONT FORK - FXSTD/I

Harley Davidson FXSTD 1BSY SOFTAIL DEUCE (2001)

Harley Davidson
#oem кодцена
1
992
SCREW 7/16-20 X 1-1/2 TORX BUTTON HD.
2
4213
SCREW M8 X 1.25 X 30 BUTTON HD.
3
5710
WASHER 63/64 X 1-1/2 X 5/64
4
7039
LOCKWASHER 7/16
5
7062
LOCKWASHER M8.4 X 13 X 1.2
6
45066-00
AXLE HOLDER RIGHT
7
45405-75A
SCREW M8 X 1.25 X 27 HEX SOCKET HD.
8
45417-00
SLIDER TUBE
9
45419-80
CAP SLIDER TUBE
10
45475-00A
STEM & BRACKET W/ BEARING & SHIELD
11
45611-86
Стопорное кольцо
12
45670-80A
CAP FORK STEM
13
45717-63
LOCKWASHER 1 X 2 X 0.035 KEYED SPECIAL
14
45718-60
NUT 1-24 X 1.5 X 0.47
15
45733-48
OIL SEAL FORK TUBE PLUG
16
45769-00
BRACKET UPPER
17
45790-80
Винт
18
45803-97
LOWER STOP
19
45838-77
PLUG FORK TUBE
20
45842-77A
RETAINING RING OIL SEAL
21
45845-77
O-RING SLIDER TUBE PLUG
22
45859-77A
RING DAMPER TUBE
23
45865-84
WASHER SLIDER
24
45866-84
BUSHING SLIDER TUBE
25
45875-84A
OIL SEAL SLIDER
26
45933-86
SPRING DAMPER TUBE
27
45940-84
BUSHING SLIDER
28
46000-00
CAP FORK SLIDER
29
46048-00
Пружина
30
46064-00
FORK ASSEMBLY LEFT
31
46066-00
FORK ASSEMBLY RIGHT
32
46067-00
SLIDER LEFT
32
46068-00
SLIDER RIGHT
33
46175-00
DUST SHIELD
34
46176-00
DAMPER TUBE COMPLETE TUBE
35
48300-60
ROLLER BEARING W/ CUP
36
48315-60
BEARING CUP
37
48324-00A
Гайка
38
48361-80
DUST SHIELD BEARING, UPPER
39
48365-48A
DUST SHIELD BEARING, LOWER
40
49377-09A
FORK REBUILD KIT W/ 7, 20, 21, 22, 23, 24, 25, 27 & 33
41
59481-00
REFLECTOR AMBER, RIGHT
42
59482-00
REFLECTOR AMBER, LEFT
