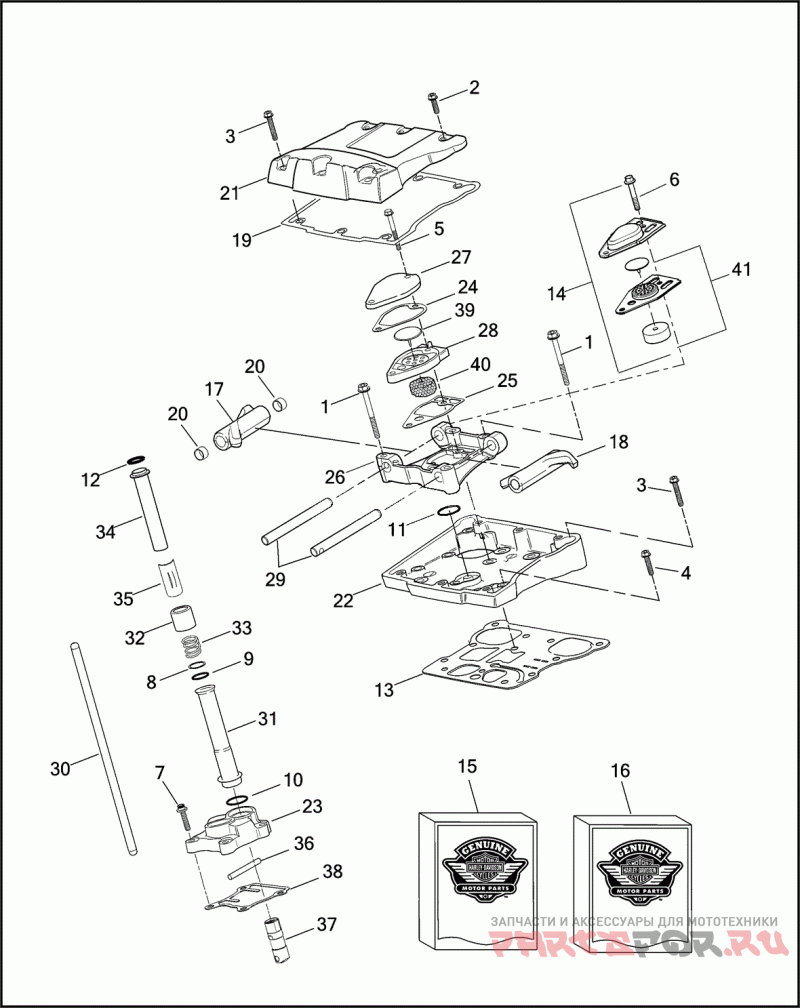

ROCKER ARM ASSEMBLY & PUSH RODS - TWIN CAM 88B ™

Harley Davidson FXSTB 1BTY NIGHT TRAIN (2001)

Harley Davidson
#oem кодцена
1
1039
Деталь SCREW 5/16-18 X 2-1/2 HEX FLANGE HD. (GRADE 8)
2
3692A
Деталь SCREW 5/16-18 X 1.0 HEX HD., W/LOCKPATCH
3
3693A
Деталь SCREW 5/16-18 X 1-3/4 HEX HD., W/LOCKPATCH
4
3736B
Деталь SCREW 5/16-18 X 1-1/4 hex flange hd., w/lockpatch
5
3746A
Деталь SCREW 1/4-20 X 2-1/4 HEX FLANGE HD. (GRADE 8)
6
4400
Деталь BOLT 1/4-20 X 1-11/16 HEX HD. W/SCOTCH GRIP (GRADE 8)
7
4741A
Деталь SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH
8
6762B
Деталь WASHER 11/16 X 29/32 X 1/32
9
11132A
Деталь O-RING PUSH ROD COVER
10
11145A
Деталь O-RING PUSH ROD COVER
11
11270
Уплотнительное кольцо
12
11293
Уплотнительное кольцо
13
16719-99B
Деталь GASKET ROCKER HOUSING
14
17025-03A
Деталь BREATHER ASSEMBLY KIT W/ 4400 & 26500002 (REPLACES 17595-99 & 17596-99)
15
17045-99D
Деталь GASKET KIT CAM SERVICE
16
17162-03
Деталь GASKET KIT BREATHER, W/ 26858-99 & 63815-99 (REPLACES 17591-99 & 17592-99)
17
17360-83A
Деталь ROCKER ARM FRONT INTAKE, REAR EXHAUST, W/ 17429-91
18
17375-83A
Деталь ROCKER ARM REAR INTAKE, FRONT EXHAUST, W/ 17429-91
19
17386-99A
Деталь GASKET ROCKER COVER
20
17429-91
Деталь BEARING ROCKER ARM
21
17620-99
Деталь ROCKER COVER BLACK TEXTURE
22
17618-99A
Деталь ROCKER HOUSING BLACK TEXTURE
23
17964-99
Деталь LIFTER COVER FRONT, CHROME
23
17966-99
Деталь LIFTER COVER REAR, CHROME
24
17162-03
Деталь GASKET KIT, breather assembly, w/ 26858-99, 63815-99, & gaskets
25
17162-03
Деталь GASKET KIT, breather assembly, w/ 26858-99, 63815-99, & gaskets
26
17594-99
Деталь SUPPORT ROCKER ARM
27
17025-03A
Деталь BREATHER ASSEMBLY w/ 4400
28
17025-03A
Деталь BREATHER ASSEMBLY w/ 4400
29
17611-83
Деталь SHAFT ROCKER ARM
30
17922-99
Деталь PUSHROD EXHAUST, 10.536 INCH LONG (BLACK OXIDE FINISH)
30
17923-99
Деталь PUSHROD INTAKE, 10.418 INCH LONG (PLAIN FINISH)
31
17939-99
Деталь COVER PUSH ROD, LOWER
32
17945-36B
Деталь CAP COVER SPRING
33
17947-36
Деталь SPRING PUSH ROD COVER
34
17948-99
Деталь COVER PUSH ROD, UPPER
35
17968-99
Деталь RETAINER SPRING CAP
36
18535-99
Деталь PIN ANTI-ROTATION
37
18538-99C
Деталь HYDRAULIC LIFTER
38
18635-99B
Деталь GASKET LIFTER COVER
39
26858-99
Деталь VALVE UMBRELLA (USED W/ 17162-03)
40
63815-99
Деталь FILTER ELEMENT BREATHER (USED W/ 17162-03)
41
26500002
Деталь BAFFLE ASSEMBLY BREATHER, W/ BREATHER VALVE & FILTER (USED W/ 17025-03A)
