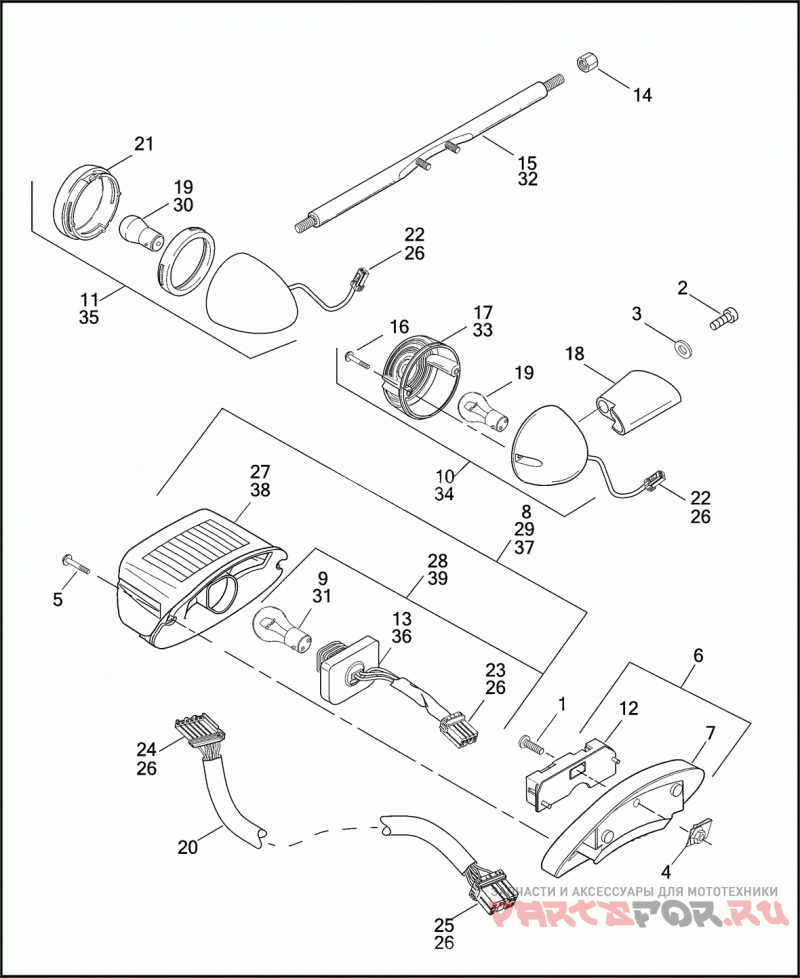

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FXDXT 1GLV DYNA SUPER GLIDE T-SPORT (2001)

Harley Davidson
#oem кодцена
1
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
4
7964
J-NUT
5
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
6
68066-99A
BASE ASSEMBLY CHROME
7
68296-99A
BASE TAIL LIGHT CHROME
8
68140-04
LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A
9
68168-89A
BULB TAIL LAMP (USED W/ 68140-99A)
9
68167-04
BULB TAIL LAMP, WEDGE MOUNT (USED W/ 68140-04 & 68142-04)
11
68425-01
LAMP W/ WIRE, REAR (AMBER)
12
68830-99A
CIRCUIT BOARD/COVER ASSEMBLY
13
68140-04
LIGHT ASSEMBLY, tail lamp, w/ 68369-03 & 68370-03A
14
68424-01
Гайка
15
68963-00A
TURN SIGNAL BAR
19
68572-64B
BULB REAR TURN SIGNAL
20
68762-99
HARNESS REAR LIGHTING
21
68973-00
Линза
22
73152-96BK
SOCKET HOUSING 2-PLACE
23
73154-96BK
SOCKET HOUSING 4-PLACE
24
73156-96BK
SOCKET HOUSING 6-PLACE
25
73158-96BK
SOCKET HOUSING 8-PLACE
26
73191-96
CONTACT SOCKET 16-20 GAUGE (AS REQUIRED)
27
68369-03
LENS TAIL LAMP W/ 68026-99 (USED W/ 68140-04)
28
68370-03A
SOCKET ASSEMBLY TAIL LAMP (USED W/ 68140-04)
29
68141-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68372-03, & 69187-03A (HDI)
30
68163-84
BULB (HDI)
31
68169-90A
BULB TAIL LAMP (HDI)
32
68430-89A
TURN SIGNAL BAR (HDI, ENGLAND)
35
68420-01
LAMP W/ WIRE, REAR (AMBER) (HDI)
36
68142-04
LIGHT ASSEMBLY, tail lamp, w/ 68558 & 69187-03A - INTERNATIONAL MODELS ONLY
37
68142-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68558-03 & 69187-03A (HDI)
38
68558-03
LENS TAIL LAMP (USED W/ 68142-04) (HDI)
39
69187-03A
SOCKET ASSEMBLY TAIL LAMP (USED W/ 68142-04) (HDI)
