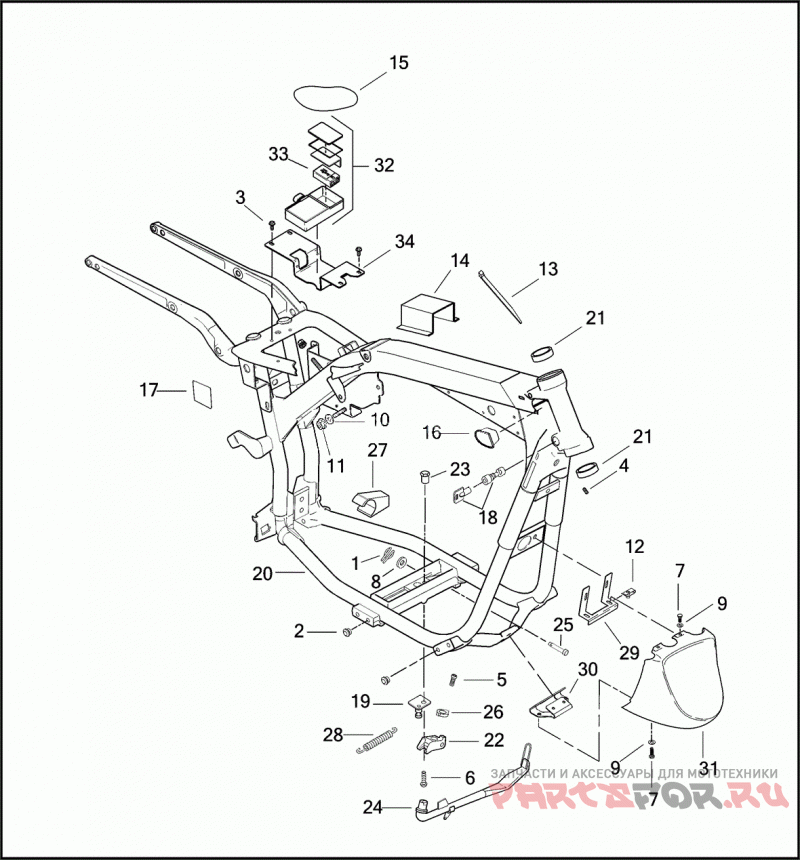

FRAME & JIFFY STAND

Harley Davidson FXDWG2 1PBV CVO DYNA WIDE GLIDE (2001)

Harley Davidson
#oem кодцена
1
554A
PRETZEL CLIP
2
740
Заглушка
3
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
4
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
5
3487
BOLT 5/16-24 X 5/8 HEX HD., W/LOCKPATCH
6
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
7
4751
SCREW 1/4-20 X 3/4 HEX HD., W/LOCKPATCH (GRADE 8) (ZINC)
8
6379W
WASHER 3/8 X 5/8 X 3/64
9
6703
WASHER 1/4 X 5/8 X 1/16
10
7127
LOCKWASHER 5/16 INTERNAL TOOTH
11
7796
NUT 5/16-18 X 1/4 EXTERNAL-TOOTH WASHER (GRADE 2)
12
7900
CLIP NUT 1/4-20
13
10006
CABLE STRAP
13
10039
CABLE STRAP
13
10073
CABLE STRAP
14
10186
CLIP WIRE SADDLE
15
11359
Уплотнительное кольцо
16
11457
PLUG STEERING HEAD
17
14273-96
IGNITION LABEL HOLE COVER
18
45680-90
FORK LOCK (SPECIFY KEY CODE)
19
47318-98
Фиксатор
20
47425-01
FRAME 32 DEGREE RAKE (SCARLET RED)
21
48315-60
BEARING CUP STEERING HEAD
22
49720-90
BLOCK PIVOT
23
49723-98
THREADED SPACER
24
49745-01A
LEG JIFFY STAND (SHORT)
25
50003-89B
Штифт
26
50053-90
CATCH
27
50054-01
Амортизатор ударов
28
50057-02
Пружина
29
58532-01
BRACKET UPPER SPOILER MOUNTING
30
58666-01
BRACKET ASSEMBLY CANISTER/SPOILER MOUNTING
31
58670-01WU
SPOILER (SCARLET RED, W/ GOLD LEAF FLAMES)
32
68958-07C
SIREN SECURITY SYSTEM, W/ 69309-10
33
69309-10
BATTERY SIREN
