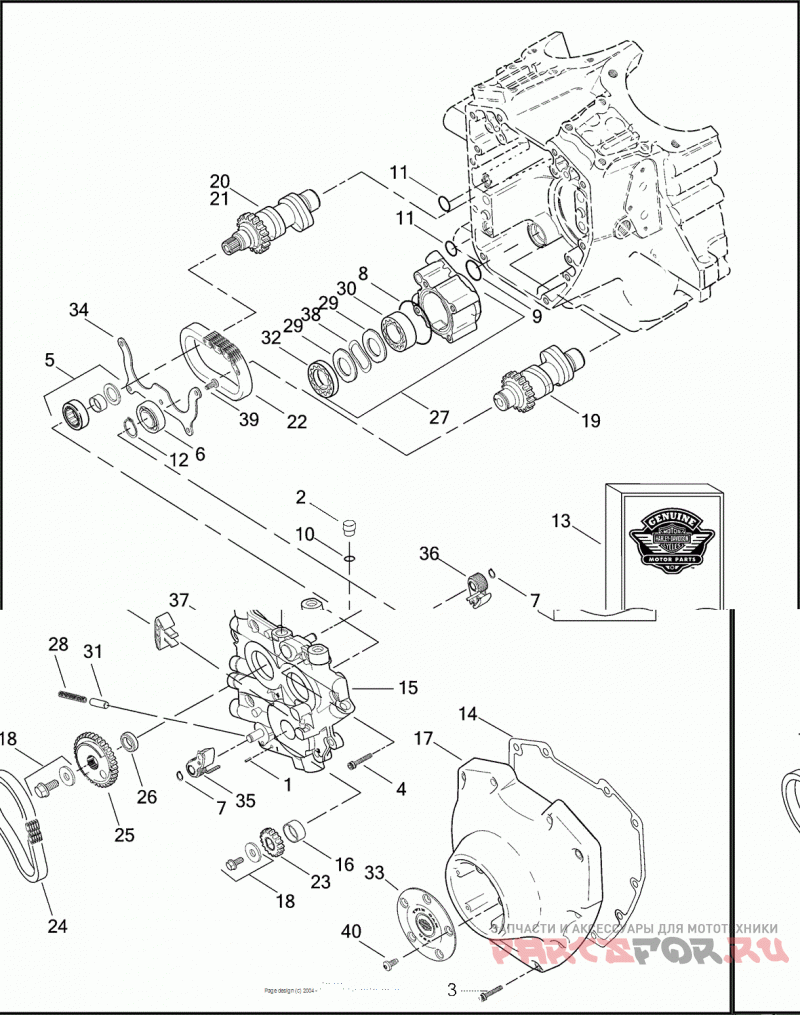

CAMSHAFTS & CAM COVER - TWIN CAM 88 ™

Harley Davidson FXDWG2 1PBV CVO DYNA WIDE GLIDE (2001)

Harley Davidson
#oem кодцена
1
601
Палец
2
3290
PLUG CAM SUPPORT PLATE
3
4740A
SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8)
4
4741A
SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH
5
8983
BEARING ASSEMBLY W/ INNER RACE, WASHER, BEARING & O-RING
6
8990A
BALL BEARING FRONT CAMSHAFT
7
11031
Стопорное кольцо
8
11286
Уплотнительное кольцо
9
11293
Уплотнительное кольцо
10
11298
O-RING VITON
11
11301
Уплотнительное кольцо
12
11494
Стопорное кольцо
13
17045-99D
GASKET KIT CAM SERVICE, W/ 1, 5, 6, 7, 8, 9, 10, 11, 12 & 14
14
25244-99A
GASKET CAM COVER
15
25284-11
KIT-CAM PLATE,HYBRID,W/HI-VOL OILPMP
16
25344-99
BUSHING CRANKSHAFT
17
25369-01B
CAM COVER (CHROME)
18
25533-99A
HARDWARE KIT DRIVE SPROCKET, CAMSHAFT, W/ 2 SCREWS & WASHERS
19
25534-99
CAMSHAFT FRONT (STAMPED A)
20
25544-00
CAMSHAFT REAR (STAMPED A)
21
25544-99B
CAMSHAFT REPLACEMENT KIT INCLUDES 25533-99A, 25544-00, 25938-00 & 25716-99
22
25607-99
CHAIN SECONDARY CAM DRIVE
23
25609-99
SPROCKET CAM DRIVE ON CRANKSHAFT, 17-TOOTH
24
25610-99
CHAIN PRIMARY CAM DRIVE
25
25716-99
SPROCKET CAM DRIVE, 34-TOOTH
26
25938-00
SPACER KIT ALIGNMENT, DRIVE SPROCKET, W/ ALL OF INDEX 26
26
25717-00
SPACER ALIGNMENT, DRIVE SPROCKET, 0.327 INCH THICK (USE AS REQUIRED)
26
25719-00
SPACER ALIGNMENT, DRIVE SPROCKET, 0.317 INCH THICK (USE AS REQUIRED)
26
25721-00
SPACER ALIGNMENT, DRIVE SPROCKET, 0.307 INCH THICK (USE AS REQUIRED)
26
25722-00
SPACER ALIGNMENT, DRIVE SPROCKET, 0.287 INCH THICK (USE AS REQUIRED)
26
25723-00
SPACER ALIGNMENT, DRIVE SPROCKET, 0.297 INCH THICK (USE AS REQUIRED)
27
26035-99B
PUMP ASSEMBLY OIL, W/ BODY, BOTH GEROTOR ASSEMBLY AND SEPARATOR PLATE
28
26210-99
SPRING RELIEF VALVE
29
26248-00
SEPARATOR PLATE GEROTOR
30
26255-00
GEROTOR ASSEMBLY SCAVENGE
31
26400-82B
VALVE RELIEF, OIL PUMP
32
26464-99
GEROTOR ASSEMBLY PRESSURE
33
32685-99A
COVER TIMER (BLACK TEXT)
33
32700-01
COVER TIMER (USE 32685-99A) (RED TEXT)
34
35060-00
PLATE BEARING RETAINING
35
39954-99A
CHAIN TENSIONER CHAIN, PRIMARY CAM DRIVE
36
39964-99A
CHAIN TENSIONER CHAIN, SECONDARY CAM DRIVE
37
39965-99
Направляющая цепи
38
40323-00
SEPARATOR SPRING
39
68042-99
SCREW NO. 8-32 X 3/8 TORX HD.
40
68120-00
SCREW NO. 8-32 X 1-2 TORX HD., SELF-TAPPING
