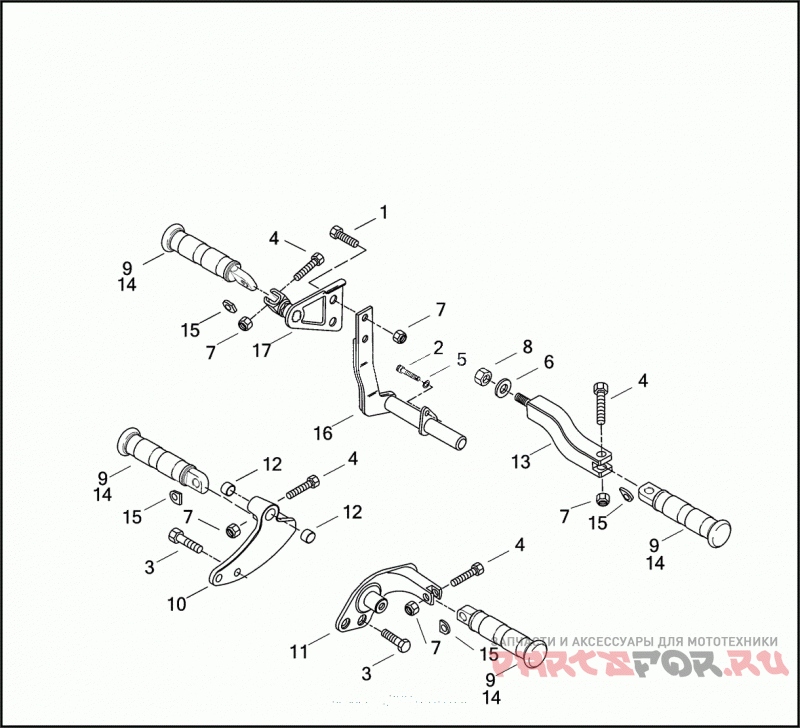

Подножки

Harley Davidson FXDWG2 1PBV CVO DYNA WIDE GLIDE (2001)

Harley Davidson
#oem кодцена
1
861A
SCREW 3/8-16 X 1 KNURLED HD. (GRADE 8)
2
3214
SCREW 3/8-16 X 1-1/4 SOCKET HD., THREAD-CUTTING
3
4059
SCREW 3/8-16 X 1 TORX HD., W/LOCKPATCH, SELF-TAPPING (GRADE 8)
4
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
5
7038
LOCKWASHER 3/8
6
7039
LOCKWASHER 7/16
7
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
8
7848W
JAMNUT 7/16-20 X 1/4 X 11/16 (GRADE 2)
9
11308
RING FOOTPEG (RUBBER)
10
33695-93
BRACKET SHIFTER & FOOTREST (CHROME)
11
33697-93
BRACKET BRAKE LEVER & FOOTREST (CHROME)
12
33708-94
BEARING SLEEVE
13
49165-90
FOOTREST SUPPORT
14
49308-99
FOOTREST ASSEMBLY W/ 11308
15
50912-72
SPRING WASHER (4)
16
52835-01
UPRIGHT BRACKET LEFT
17
52911-01
SUPPORT LEFT
