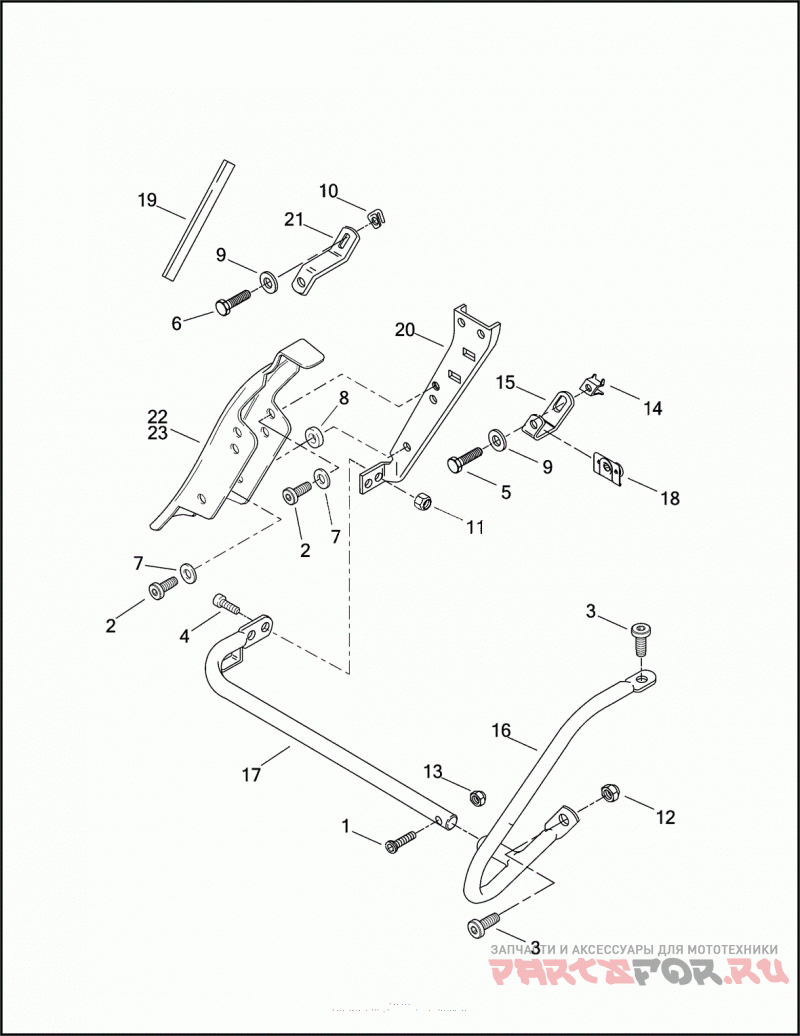

SADDLEBAG SUPPORTS

Harley Davidson FLTRSEI2 1PCC CVO ROAD GLIDE (2001)

Harley Davidson
#oem кодцена
1
3601
SCREW 1/4-20 X 1-1/4 KNURLED HD. (GRADE 8)
2
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
3
3678
SCREW 3/8-16 X 7/8 TORX PAN HD.
4
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
6
3802W
BOLT 1/4-20 X 7/8 HEX HD. (GRADE 5)
7
6116
WASHER 5/16 X 16/16 X 1/8
8
6378
WASHER 21/64 X 7/8 X 11/64
9
6703
WASHER 1/4 X 5/8 X 1/16
10
7490
CLIP NUT
11
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
12
7667
NUT 3/8-16 X 9/32 X 9/16 NYLON INSERT
13
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
14
7743A
CLIP NUT
15
47449-97
BRACKET SADDLEBAG MOUNTING FRONT
16
49187-97
GUARD LEFT
16
49176-97
GUARD RIGHT
17
49194-85
SUPPORT SADDLEBAG, LEFT
17
90781-93
SUPPORT SADDLEBAG, RIGHT
18
70909-95
RECEPTACLE
19
90594-85A
EDGE TRIM SUPPORT BRACKETS
20
90718-79C
SUPPORT BRACKET LEFT, W/ BOLT
20
90720-79C
SUPPORT BRACKET RIGHT, W/ BOLT
21
90801-95
BRACKET SADDLEBAG MOUNTING, REAR
22
91417-01KT
FILLER STRIP KIT SADDLEBAG (CHARCOAL SATIN BRITE)
23
91417-01MR
FILLER STRIP SADDLEBAG (STATES BLUE PEARL)
