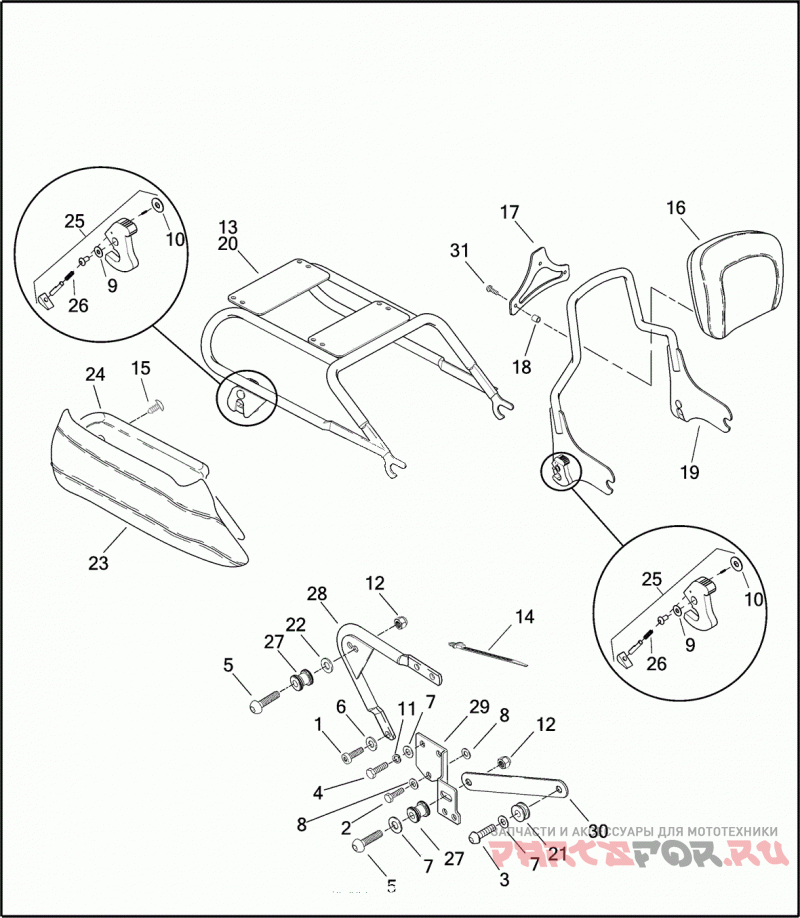

DETACHABLE TOUR-PAK RACK & PASSENGER BACKREST

Harley Davidson FLTRSEI2 1PCC CVO ROAD GLIDE (2001)

Harley Davidson
#oem кодцена
1
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
2
3802W
BOLT 1/4-20 X 7/8 HEX HD. (GRADE 5)
3
4016
SCREW 5/16-18 X 1.0 SOCKET BUTTON HD.
4
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
5
4224
Винт
6
6116
WASHER 5/16 X 16/16 X 1/8
7
6702
WASHER 5/16 X 11/16 X 1/16
8
6703
WASHER 1/4 X 5/8 X 1/16
9
6827
WASHER 13/16 X 1/2 X 1/32
10
6828
Шайба
11
7041
LOCKWASHER 5/16
12
7667
NUT 3/8-16 X 9/32 X 9/16 NYLON INSERT
13
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
14
10177
TIE WRAP
15
27295-00
FASTENER KIT CLIP, X-MAS TREE
16
52263-00A
PAD PASSENGER BACKREST
17
52565-94
BRACKET BACKREST MOUNTING
18
52576-94
SPACER BUSHING
19
52933-97C
BACKREST KIT, DETACH, STANDARD HEIGHT
20
53107-96
RACK ASSEMBLY DETACHABLE, W/ 7686, 53508-95 & 53509-95 (REPLACES 53054-00)
21
53123-96
BUSHING FRONT DOCKING POINT
22
53129-96
Шайба
23
53189-00
FILLER STRIP RIGHT
23
53190-00
FILLER STRIP LEFT
24
53198-00
SUPPORT PLATE FILLER STRIP, RIGHT, W/ CLIPS
24
53199-00
SUPPORT PLATE FILLER STRIP, LEFT, W/ CLIPS
25
50300108
KIT-SERVICE,LATCH,DETACH
26
53602-95
SPRING COMPRESSION
27
53684-96A
DOCKING POINT REAR
28
53705-95
BRACKET REAR DOCK POINT, RIGHT
28
53706-95
BRACKET REAR DOCK POINT, LEFT
29
53758-96
MOUNTING BRACKET DOCK POINT, LEFT
29
53759-96B
MOUNTING BRACKET DOCK POINT, RIGHT
30
53805-99
BRACKET DOCK POINT
31
94554-97
Винт
