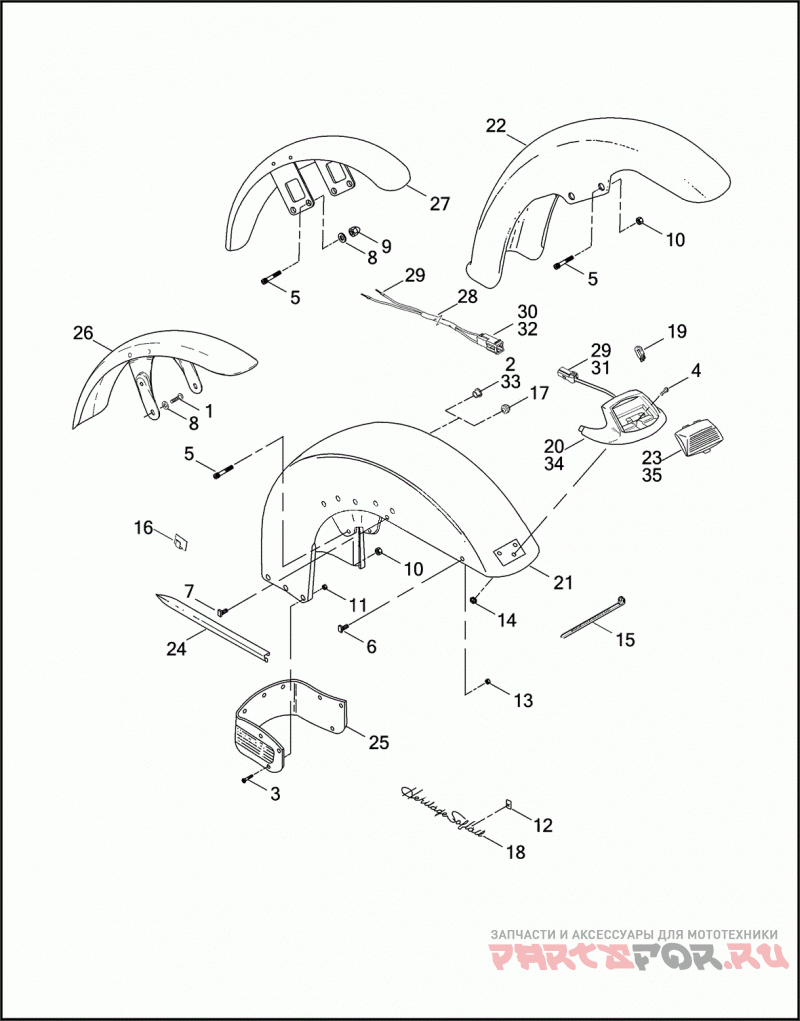

FRONT FENDER - FXST/I, FXSTB/I, FXSTD/I, FLSTC/I & FLSTF/I

Harley Davidson FLSTC 1BJY HERITAGE SOFTAIL CLASSIC (2001)

Harley Davidson
#oem кодцена
2
755
HOLE PLUG
3
2531
SCREW NO. 4-40 X 5/16 POZIDRIV PAN HD. (GRADE 2)
4
2604
SCREW NO. 10-32 X 1/2 POZIDRIV PAN HD. (GRADE 2)
5
3485A
SCREW 5/16-18 X 1-3/4 KNURLED HD. (GRADE 8)
6
3560WA
BOLT NO. 10-24 X 3/8
7
3561WC
BOLT NO. 10-24 X 3/8
10
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
11
7600
NUT NO. 4-40 KEPS
12
7613A
Гайка
13
7624
LOCKNUT NO. 10-24 X 1/4 X 3/8
14
7629
NUT NO. 10-32 X 3/8 KEPS
15
10065
CABLE STRAP
16
10102
Зажим
17
11437
Уплотнитель резиновый
18
14142-86A
TRIM in.HERITAGE SOFTAILin.
19
68193-95
BULB FENDER TIP LAMP
20
68706-00
LAMP ASSEMBLY FENDER TIP, INCLUDES LENS, BULB & CONNECTOR ASSEMBLY
21
59129-86A
FENDER (PRIME)
23
59180-80
LENS FENDER LAMP (AMBER)
24
59211-74A
SIDE TRIM
25
59235-86
TRIM SKIRT LOWER
28
70196-00
HARNESS ASSEMBLY FRONT FENDER TIP LIGHT
29
73191-96
SOCKET CONTACT 16-20 GAUGE
30
73102-96BK
PIN HOUSING 2-PLACE
31
73152-96BK
SOCKET HOUSING 2-PLACE
32
73190-96
PIN TERMINAL 16-20 GAUGE
33
755
HOLE PLUG (HDI)
34
59116-96
FENDER TIP ASSEMBLY (HDI)
35
59201-96
LENS FENDER TIP (CHROME) (HDI)
