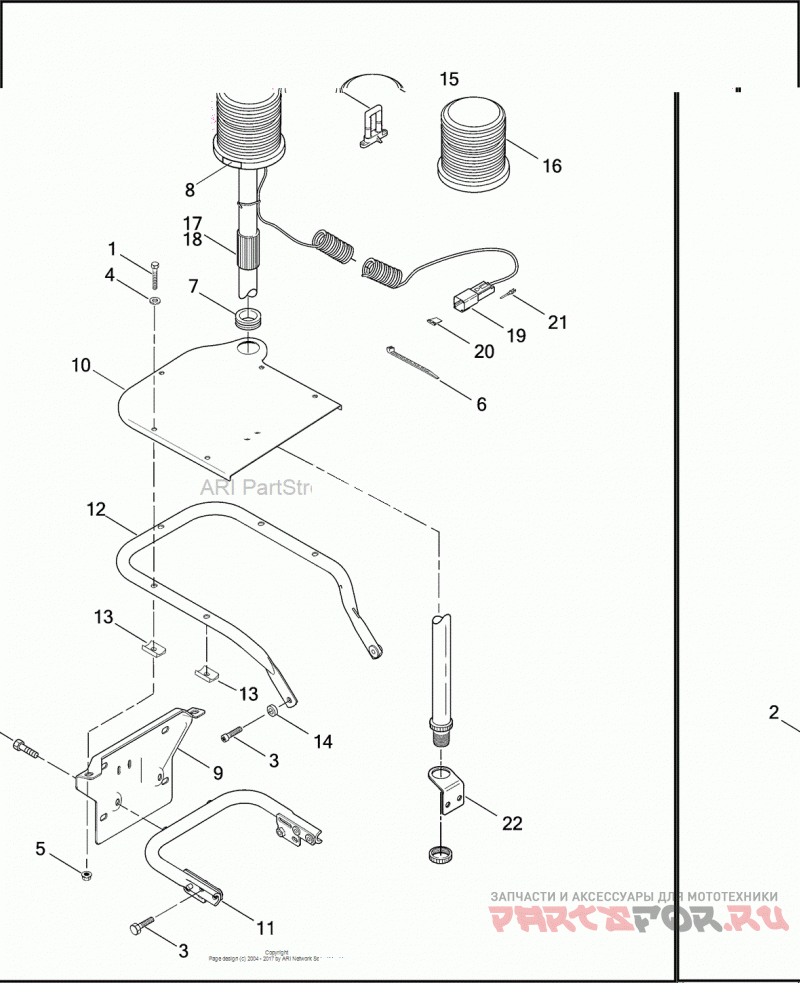

STROBE LAMPS - REAR, LICENSE PLATE HOLDER

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2001)

Harley Davidson
#oem кодцена
1
2872W
BOLT 1/4-20 X 1-1/2 HEX HD. (GRADE 5)
2
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
3
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
4
6703
WASHER 1/4 X 5/8 X 1/16
5
7887
LOCKNUT 1/4-20 NYLON
6
10006
CABLE STRAP (AS REQUIRED)
7
11503
Уплотнитель резиновый
9
53375-97A
LICENSE PLATE HOLDER
10
53419-97A
MOUNTING PLATE
11
53422-97
SUPPORT TUBE BOTTOM
12
53801-98
SUPPORT TUBE TOP
13
53799-99
SPACER LUGGAGE RACK, LICENSE PLATE
14
61135-57
Проставка
15
67598-88
FLASH TUBE ASSEMBLY (SELF-CONTAINED)
16
67599-88
LENS (RED)
16
67688-88
LENS (BLUE)
17
68000135
STROBE LAMP w/ connections (blue)
17
68000136
KIT-EMERG POLE LITE,RED
18
72043-71A
HOUSING CAP
19
72102-94BK
RECEPTACLE 2-WAY PIN
20
72142-94
PIN LOCK SECONDARY, 2-WAY
21
72190-94
TERMINAL PIN
22
91137-97
BRACKET LOWER
23
9863
TERMINAL RING TYPE, 1/4 INCH DIAMETER HOLE (NOT SHOWN)
