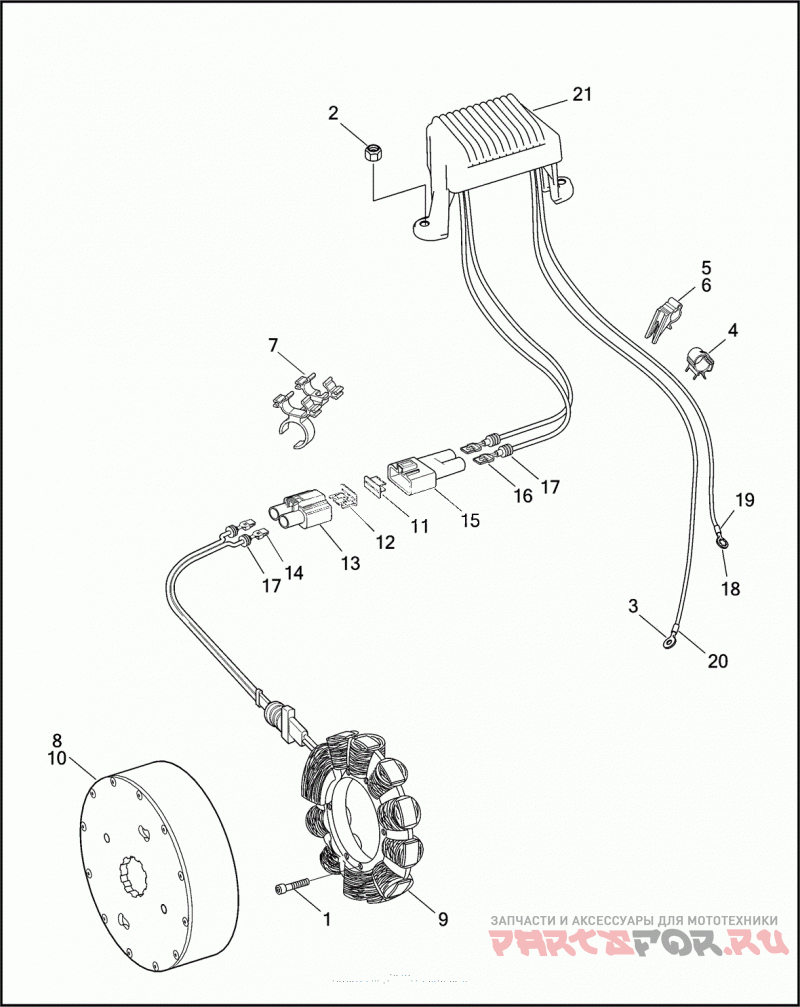

ALTERNATOR & REGULATOR

Harley Davidson FLHTC 1DJV ELECTRA GLIDE CLASSIC (2001)

Harley Davidson
#oem кодцена
1
2918
SCREW NO. 10-24 X 1-1/4 TORX HD.
2
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
3
9843
TERMINAL RING TYPE, #10
4
10108
CLIP T-STUD
5
10110
CLIP T-STUD
6
10116
CLIP T-STUD
7
10215
CLIP REGULATOR CONNECTOR
8
29981-95
ROTOR 38 AMP
9
29987-99B
STATOR ASSEMBLY W/ CONNECTOR
11
70201-97
LOCK PIN TERMINAL
12
70202-97
LOCK SOCKET TERMINAL
13
72030-97
SOCKET HOUSING 2-PLACE
14
72031-97
TERMINAL SOCKET
15
72042-97
PIN HOUSING 2-PLACE
16
72058-97
TERMINAL PIN
17
72069-97
SEAL CABLE
18
72242-94
TERMINAL 1/4 INCH, W/ INTERNAL STAR, 10-12 GAUGE
19
72249-94
HEAT SHRINK TUBING 0.3 X 1 INCH
20
72366-95
HEAT SHRINK TUBING YELLOW
21
74505-97A
REGULATOR ASSEMBLY
