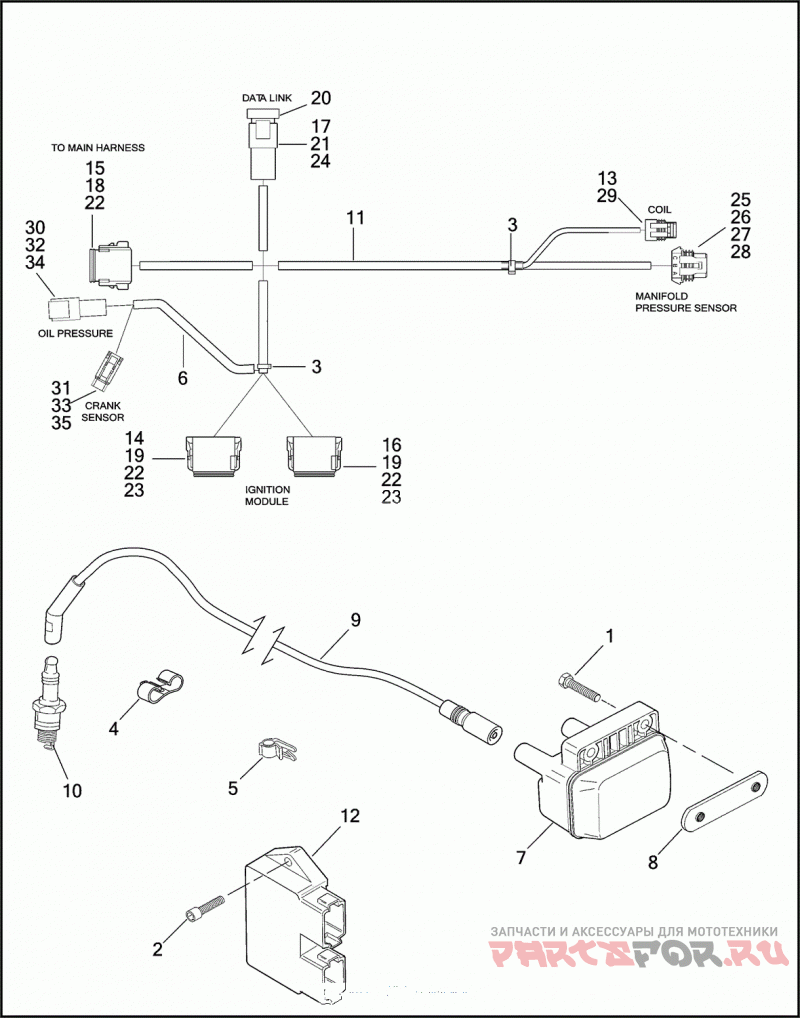

IGNITION MODULE & COIL

Harley Davidson FLHT 1DDV ELECTRA GLIDE STANDARD (2001)

Harley Davidson
#oem кодцена
1
3993
BOLT 1/4-20 X 1-1/4 HEX HD. (GRADE 5)
2
4741A
SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH
3
10065
CABLE STRAP
4
10113
CLIP DOUBLE
5
10114
CLIP SINGLE
6
10136
ANCHOR T-STUD
7
31639-99
IGNITION COIL DUAL
8
31727-85
NUT PLATE
9
31992-99B
SPARK PLUG CABLE FRONT & REAR CYLINDER
10
32362-04A
SPARK PLUG
11
32435-01
WIRING HARNESS IGNITION
12
32478-99C
IGNITION MODULE
13
72033-93
SOCKET TERMINAL
14
72119-94BK
SOCKET HOUSING SEALED
15
72138-94GY
SOCKET HOUSING 8-PLACE
16
72139-94GY
SOCKET HOUSING SEALED 12-PLACE
17
72144-94
PIN LOCK SECONDARY, 4-WAY
18
72158-94
SOCKET LOCK 8-WAY
19
72159-94
SOCKET LOCK SECONDARY, 12-WAY
20
72164-94A
PLUG 4-WAY
21
72190-94
TERMINAL PIN
22
72191-94
TERMINAL SOCKET
23
72195-94
SEAL PIN
24
72199-94
CONNECTOR ANCHOR
25
72213-94
TERMINAL 18-20 GAUGE
26
72214-94
Провода Печать
27
72230-98
HOUSING SOCKET CONNECTOR, 3-WAY
28
72231-98
SECONDARY LOCK 3-WAY SOCKET CONNECTOR
29
72280-95
CONNECTOR 3-WAY
30
74102-98BK
PIN HOUSING 2-WAY
31
74112-98BK
SOCKET HOUSING 2-WAY
32
74142-98
PIN LOCK 2-WAY
33
74152-98
SOCKET LOCK 2-WAY
34
74190-98
PIN TERMINAL
35
74191-98
SOCKET TERMINAL
