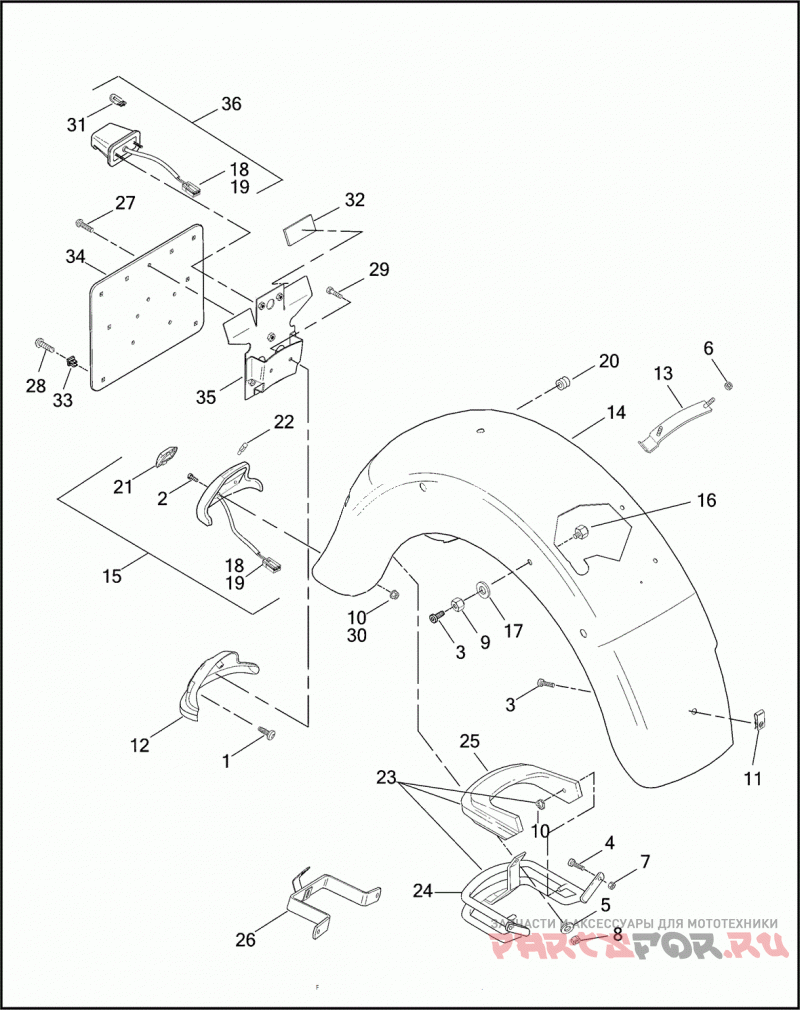

Задний бампер

Harley Davidson FLHRCI 1FRW ROAD KING CLASSIC (2001)

Harley Davidson
#oem кодцена
1
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
3
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
4
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
6036
WASHER 17/64 X 1 X 1/16
6
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
7
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
8
7683
LOCKNUT 1/4-28 X 5/16 X 7/16
9
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
11
8144
LOCKNUT 5/16-18
12
59052-98
REAR FENDER TIP KIT W/ 3612 SCREWS
13
59174-99
STUD PLATE
14
59579-01B
FENDER REAR (PRIMED)
16
59786-01
FENDER MOUNTING BOSS INNER
17
59788-01
FENDER MOUNTING WASHER
20
67266-94
GROMMET TURN SIGNAL
26
91140-98A
BRACKET SADDLEBAG TO FENDER SUPPORT
27
2420
SCREW 1/4-20 X 3/4 TRUSS HD. (GRADE 2)
28
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
29
3574
SCREW 1/4-20 X 3/4 FLANGE
30
7499
NUT 1/4-20 LARGE FLANGE
31
53436-97
BULB WEDGE (HDI)
32
59259-90
REFLECTOR RED (HDI)
33
59292-94
NUT PLASTIC (HDI)
34
60026-97
PLATE LICENSE BACK (HDI)
35
60039-97
BRACKET LICENSE PLATE MOUNTING (HDI)
36
68180-99
LAMP ASSEMBLY LICENSE PLATE ILLUMINATION (HDI)
