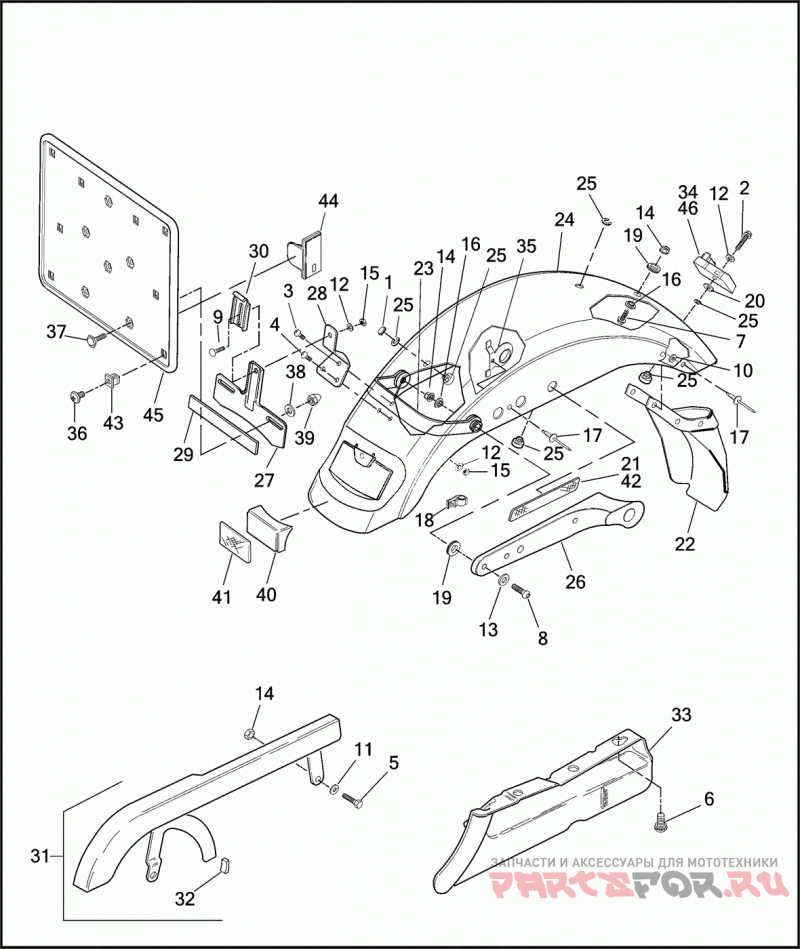

REAR FENDER & BELT GUARDS

Harley Davidson XL883HUG 4CEM SPORTSTER 883 HUGGER (2000)

Harley Davidson
#oem кодцена
1
761
PLUG BLACK
2
2551W
BOLT 1/4-20 X 1 HEX HD. (GRADE 5)
3
2607
SCREW 1/4-20 X 3/4 POZIDRIV PAN HD. (GRADE 2)
4
2773
SCREW 1/4-20 X 1/2 POZIDRIV PAN HD. (GRADE 2)
5
3201WA
SCREW 5/16-18 X 1-1/4 KNURLED HD.
6
3579A
SCREW 1/4-28 X 1/4 SEMS HEX HD., SELF-TAPPING (GRADE 2)
7
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
8
4767
SCREW 5/16-18 X 1-1/4 BUTTON HD. (STAINLESS)
9
5403B
BOLT 1/4-20 X 3/8 CARRIAGE
10
6192
WASHER NO. 8 X 7/16 X 3/64
11
6702
WASHER 5/16 X 11/16 X 1/16
12
6703
WASHER 1/4 X 5/8 X 1/16
13
6798
WASHER 5/16 X 1/2 X 1/32
14
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
15
7792
NUT 1/4-20 X 1/4 (GRADE 2)
16
7882
TEE SPACER
17
8692
заклёпка
18
10183
Зажим
19
11474
Уплотнитель резиновый
20
11512
DAMPER VIBRATION
21
59287-92
REFLECTOR RIGHT (RED)
21
59288-92
REFLECTOR LEFT (RED)
22
59594-82C
REAR FENDER EXTENSION
23
59671-98
FENDER SUPPORT KIT
24
59674-99
REAR FENDER (PRIME)
25
59768-97
KIT FENDER SEAT NUT ASSEMBLY
26
59896-94
COVER REAR FENDER SUPPORT, RIGHT (CHROME)
26
59897-94
COVER REAR FENDER SUPPORT, LEFT (CHROME)
27
59984-73
BRACKET LICENSE PLATE
28
59986-75
SUPPORT LICENSE PLATE BRACKET
29
59988-72A
REFLECTOR LICENSE PLATE BRACKET
30
60001-55
CLAMP LICENSE PLATE BRACKET
31
60381-00
BELT GUARD KIT W/ 60419-91 (BLACK)
32
60419-91
Амортизатор ударов
33
60436-91
DEBRIS DEFLECTOR
34
68540-96
TURN SIGNAL CANCELLER W/ CONNECTOR ASSEMBLY
35
10200
BRACKET WIRE RETENTION
36
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
40
59251-90
REFLECTOR ASSEMBLY W/ 59259-90 (RED) (HDI)
41
59259-90
REFLECTOR (RED) (HDI)
42
59289-92
REFLECTOR LEFT (AMBER) (HDI)
42
59290-92
REFLECTOR RIGHT (AMBER) (HDI)
43
59292-94
NUT LICENSE PLATE BACKING (HDI)
44
59483-00
REFLECTOR AMBER (HDI)
45
60026-97
LICENSE PLATE BRACKET (HDI)
46
68441-00
TURN SIGNAL CANCELLER W/ CONNECTOR ASSEMBLY (HDI)
