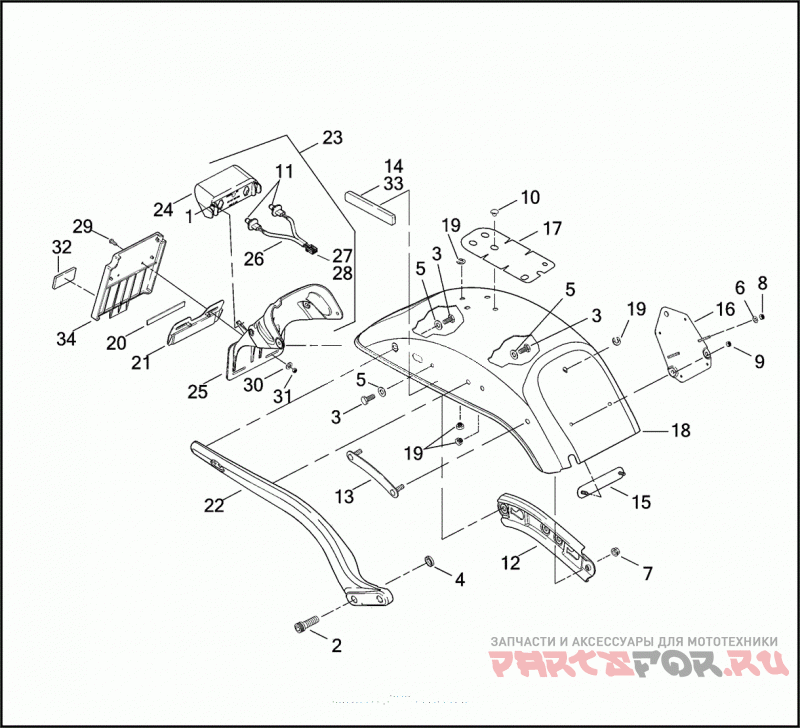

REAR FENDER, SUPPORTS & LICENSE PLATE BRACKET - FXSTD

Harley Davidson FXSTD 1BSY SOFTAIL DEUCE (2000)

Harley Davidson
#oem кодцена
1
2646
SCREW NO. 8-32 X 3/4 POZIDRIV PAN HD. (GRADE 2)
2
2917
Винт
3
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
4
6296
Проставка
5
6702
WASHER 5/16 X 11/16 X 1/16
6
6716
WASHER NO. 10 X 1/2 X 3/64
7
7601
LOCKNUT 3/8-16 FLANGE
8
7629
NUT NO. 10-32 X 3/8 KEPS
9
7792
NUT 1/4-20 X 1/4 (GRADE 2)
10
10228
Заглушка
11
53436-97
BULB WEDGE, #W5W
12
56627-00
FENDER REINFORCEMENT RIGHT
12
56628-00
FENDER REINFORCEMENT LEFT
13
59053-00
BRACKET FENDER MOUNTING
14
59287-92
REFLECTOR RIGHT (RED)
14
59288-92
REFLECTOR LEFT (RED)
15
59438-00
BRACKET ASSEMBLY ECM MOUNTING
16
59465-00
BRACKET ASSEMBLY IGNITION MODULE
17
59567-00C
PROTECTIVE TAPE
18
59759-00
FENDER (PRIME)
19
59768-97
FENDER SEAT NUT KIT
20
59988-72A
REFLECTOR (RED)
21
60019-93A
REFLECTOR BRACKET
22
60028-00
FENDER SUPPORT RIGHT (CHROME)
22
60035-00
FENDER SUPPORT LEFT (CHROME)
23
60120-00A
BRACKET LICENSE PLATE, W/ ILLUMINATOR
24
68889-00
ILLUMINATOR ASSEMBLY LICENSE PLATE
25
68890-00A
BRACKET LICENSE PLATE
26
68891-00
HARNESS ASSEMBLY LICENSE PLATE ILLUMINATOR
27
73154-96BK
SOCKET HOUSING 4-WAY
28
73191-96
SOCKET CONTACT 16-20 AWG
30
6703
WASHER 1/4 X 5/8 X 1/16
31
7792
NUT 1/4-20 X 1/4 (GRADE 2)
32
59259-90
REFLECTOR (RED) (HDI)
33
59289-92
REFLECTOR RIGHT (AMBER) (HDI)
33
59290-92
REFLECTOR LEFT (AMBER) (HDI)
34
59994-93A
LICENSE PLATE BRACKET (HDI)
