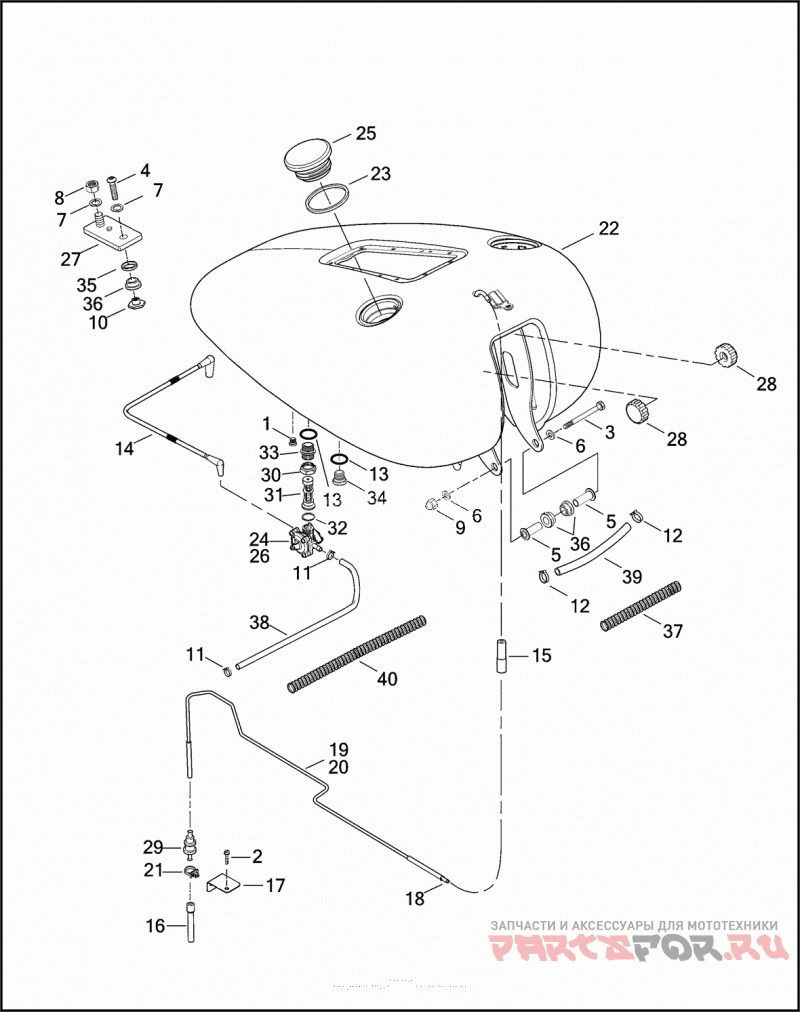

FUEL TANK - FXSTD

Harley Davidson FXSTD 1BSY SOFTAIL DEUCE (2000)

Harley Davidson
#oem кодцена
1
758
PLUG DRAIN
2
3893
SCREW 1/4-20 X 1/2 HEX HD., W/WASHER, SELF-TAPPING
3
4197
BOLT 3/8-16 X 3-3/4 HEX HD. (GRADE 5)
4
4763
SCREW 5/16-18 X 1-1/4 TORX BUTTON HD. (GRADE 5)
5
5818A
BUSHING FRONT TANK MOUNT
6
6474
WASHER 3/8 X 5/16 X 3/16 HARDENED
7
6702
WASHER 5/16 X 11/16 X 1/16
8
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
9
7862
ACORN NUT 3/8-16 (CHROME)
10
7965
TEE NUT
11
10014
CLAMP FUEL HOSE
12
10038A
CLAMP FUEL CROSSOVER HOSE
13
11323A
Уплотнительное кольцо
14
26567-99
VACUUM HOSE ASSEMBLY
15
27016-00
HOSE REDUCER
16
27072-00
HOSE VALVE TO ATMOSPHERE
17
27095-00A
BRACKET VAPOR VALVE
18
27249-96
CONNECTOR STRAIGHT
19
28828-00
TUBE TANK TO VALVE
20
28838-00
VENT LINE ASSEMBLY FUEL TANK TO VAPOR VALVE
21
56076-97
CLIP VAPOR VALVE
22
62082-00D
FUEL TANK W/ ADAPTER BRACKET, LOCKNUT & SCREW (PRIMED)
23
61109-85D
Прокладка
24
61200-97
DIAPHRAGM FUEL VALVE, KIT
25
61272-92C
CAP FUEL FILLER, RIGHT
26
61338-94D
FUEL VALVE VACUUM ACTUATED, W/ FILTER, 61338-94D, 62161-02 & 62172-02
27
61721-00A
BRACKET ASSEMBLY REAR
28
62146-00
FRONT TANK MOUNT
29
62150-85
VAPOR VALVE
30
62161-02
NUT FUEL VALVE
31
62166-81A
FILTER FUEL VALVE
32
62172-02
GASKET FUEL VALVE
33
62842-00
ADAPTER FUEL VALVE
34
62843-00
PLUG FUEL TANK
35
62880-00
GROMMET FUEL TANK, UPPER REAR
36
62881-00
GROMMET FUEL TANK, LOWER REAR & FRONT
37
62555-95
INSULATOR 5/8 INCH I.D. (NYLON) (8 FEET)
38
63501-68B
HOSE 1/4 INCH I.D. X 5/8 INCH O.D. (RUBBER) (25 FEET)
39
63521-95A
HOSE 5/16 INCH I.D. X 5/8 INCH O.D. (RUBBER) (25 FEET)
