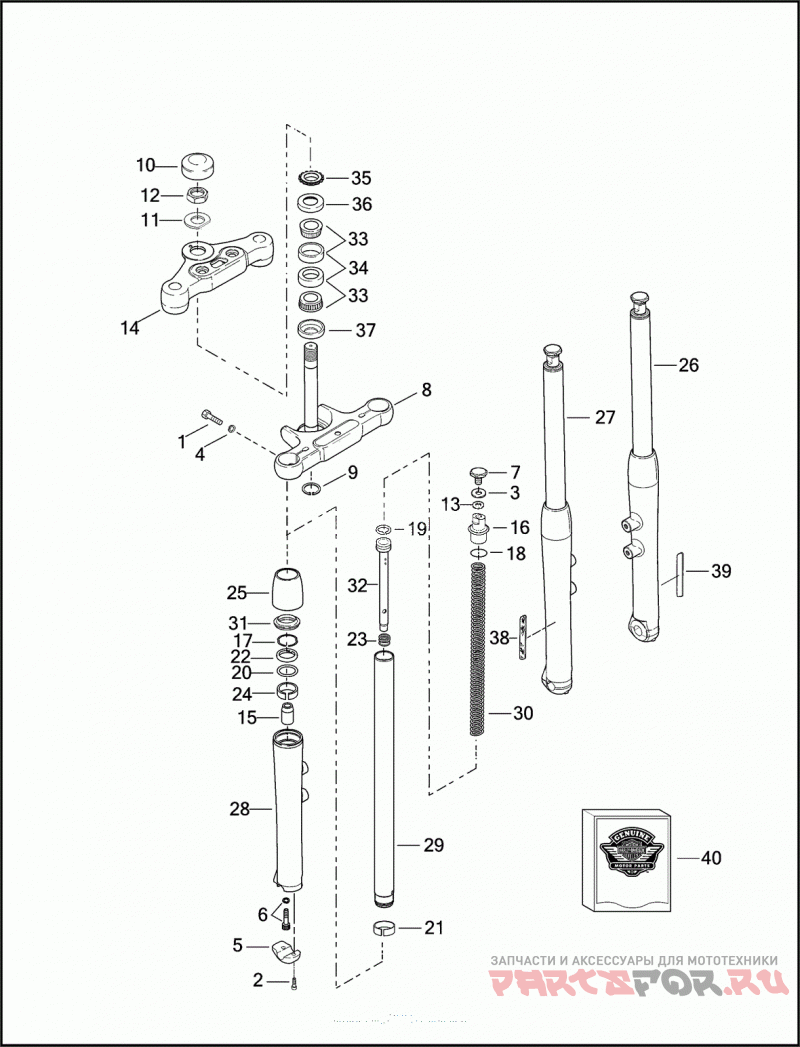

FRONT FORK - FXSTD

Harley Davidson FXSTD 1BSY SOFTAIL DEUCE (2000)

Harley Davidson
#oem кодцена
1
992
SCREW 7/16-20 X 1-1/2 TORX BUTTON HD.
2
4042
SCREW M8 X 1.25 X 35 HEX BUTTON HD.
3
5710
WASHER 63/64 X 1-1/2 X 5/64
4
7039
LOCKWASHER 7/16
5
45066-00
AXLE HOLDER RIGHT
6
4213
SCREW M8 X 1.25 X 30 BUTTON HD.
7
45419-80
CAP SLIDER TUBE
8
45475-00A
STEM & BRACKET W/ 48365-48A & SHIELD
9
45611-86
Стопорное кольцо
10
45670-80A
CAP FORK STEM
11
45717-63
LOCKWASHER 1 X 2 X 0.035 KEYED SPECIAL
12
45718-60
NUT 1-24 X 1.5 X 0.47
13
45733-48
OIL SEAL FORK TUBE PLUG
14
45769-00
BRACKET UPPER
15
45803-97
LOWER STOP
16
45838-77
PLUG FORK TUBE
17
45842-77A
RETAINING RING OIL SEAL
18
45845-77
O-RING SLIDER TUBE PLUG
19
45859-77A
RING DAMPER TUBE
20
45865-84
WASHER SLIDER
21
45866-84
BUSHING SLIDER TUBE
22
45875-84A
OIL SEAL SLIDER
23
45933-86
SPRING DAMPER TUBE
24
45940-84
BUSHING SLIDER
25
46000-00
CAP FORK SLIDER
26
46064-00
FORK ASSEMBLY LEFT
27
46066-00
FORK ASSEMBLY RIGHT
28
46067-00
SLIDER LEFT
28
46068-00
SLIDER RIGHT
29
45417-00
SLIDER TUBE W/ 45866-84
30
46048-00
Пружина
31
46175-00
DUST SHIELD
32
46176-00
DAMPER TUBE COMPLETE TUBE
33
48300-60
ROLLER BEARING W/ CUP
34
48315-60
BEARING CUP
35
48324-00A
Гайка
36
48361-80
DUST SHIELD BEARING, UPPER
37
48365-48A
DUST SHIELD BEARING, LOWER
38
59481-00
REFLECTOR AMBER, RIGHT
39
59482-00
REFLECTOR AMBER, LEFT
40
49377-09A
REBUILD KIT W/ 6, 17, 18, 19, 20, 21, 22, 24 & 31
