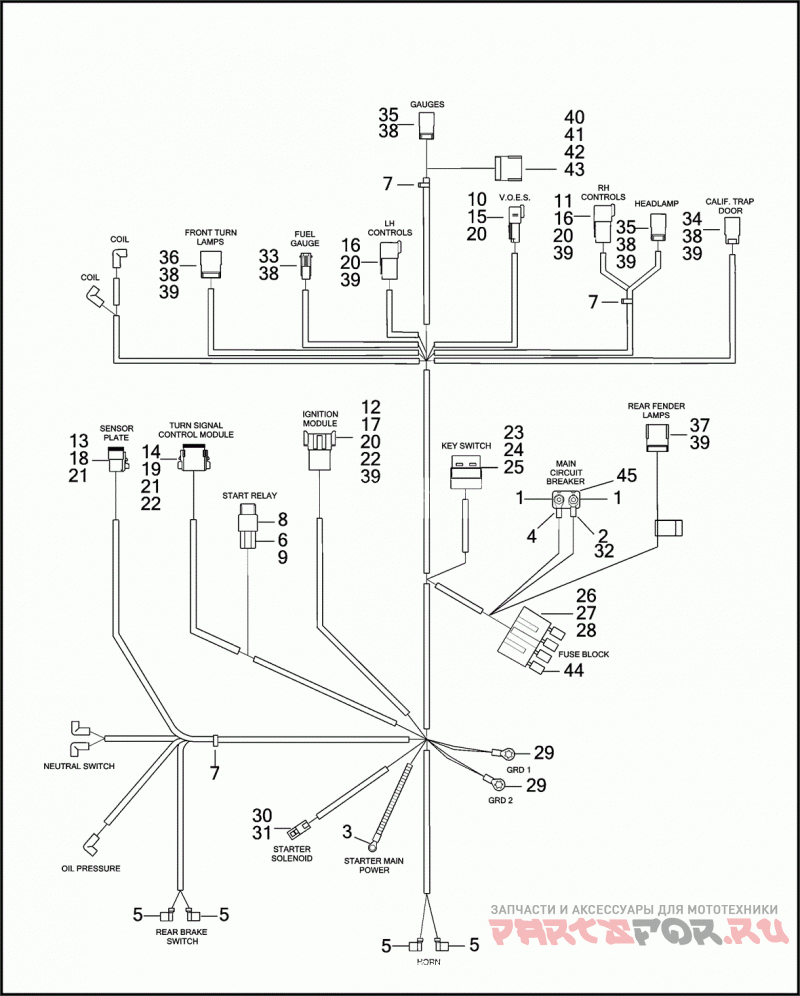

WIRING HARNESS, MAIN

Harley Davidson FXR4 1EVL CVO DYNA SUPER GLIDE (2000)

Harley Davidson
#oem кодцена
69565-99
MAIN WIRING HARNESS
1
7629
NUT NO. 10-32 X 3/8 KEPS
2
9840
TERMINAL RING
3
9842
TERMINAL RING
4
9843
TERMINAL RING
5
9898
TERMINAL FLAG
6
9937
Терминал
7
10065
CABLE STRAP
8
31504-91B
RELAY W/ DIODE
9
72046-79
SOCKET HOUSING
10
72102-94BK
PIN HOUSING SEALED, 2-PLACE (BLACK)
11
72106-94BK
PIN HOUSING SEALED, 6-PLACE (BLACK)
12
72108-94BK
PIN HOUSING SEALED, 8-PLACE (BLACK)
13
72113-94BK
SOCKET HOUSING 3-WAY (BLACK)
14
72138-94GY
SOCKET HOUSING 8-WAY (GRAY)
15
72142-94
SECONDARY LOCK 2-WAY
16
72146-94
SECONDARY LOCK 6-WAY
17
72148-94
SECONDARY LOCK 8-WAY
18
72153-94
SECONDARY LOCK 3-WAY
19
72158-94
SECONDARY LOCK 8-WAY
20
72190-94
TERMINAL PIN
21
72191-94
TERMINAL SOCKET
22
72195-94
SEAL PIN
23
72205-94
CONNECTOR 4-WAY
24
72208-94
TERMINAL MALE, 12 GAUGE
25
72210-94
TERMINAL MALE, 14 GAUGE
26
72216-94
FUSEBLOCK
27
72217-94
TERMINAL AUTO FUSE, 18 GAUGE
28
72218-94
TERMINAL AUTO FUSE, 14-16 GAUGE
29
72255-94
TERMINAL 1/4 RING
30
72291-94
TERMINAL 14-16 GAUGE
31
72295-94
TERMINAL HOUSING
32
72366-95
HEAT SHRINK TUBING
33
73102-96BK
PIN HOUSING 2-WAY (BLACK)
34
73103-96BK
PIN HOUSING 3-WAY (BLACK)
35
73104-96BK
PIN HOUSING 4-WAY (BLACK)
36
73106-96BK
PIN HOUSING 6-WAY (BLACK)
37
73108-96BK
PIN HOUSING 8-WAY (BLACK)
38
73190-96
PIN TERMINAL 20-16 GAUGE
39
73198-96
CONNECTOR ANCHOR
40
74109-98BK
PIN HOUSING 12-WAY
41
74149-98
PIN LOCK 12-WAY
42
74192-98
PIN TERMINAL
43
74195-98
SEAL PIN
44
74587-94
CIRCUIT BREAKER 15 AMP
45
74599-77B
CIRCUIT BREAKER 30 AMP
