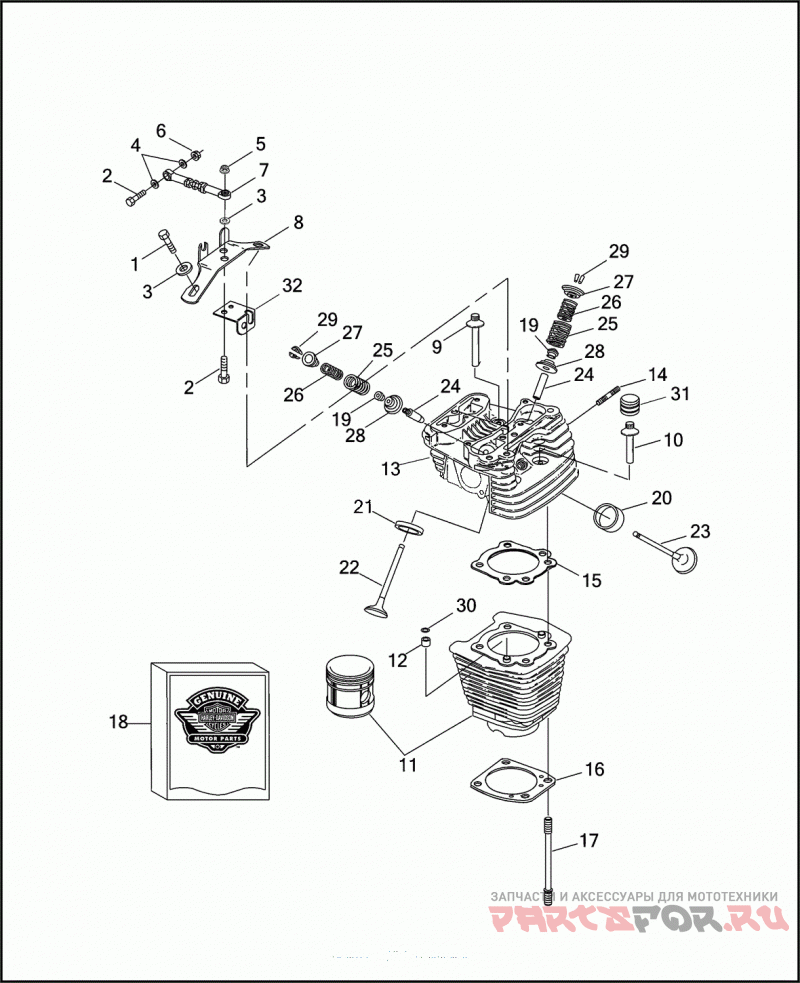

CYLINDERS, VALVES & HEADS - VВІ ™ EVOLUTION

Harley Davidson FXR4 1EVL CVO DYNA SUPER GLIDE (2000)

Harley Davidson
#oem кодцена
1
4716W
SCREW 3/8-16 X 1-1/4 HEX HD. (GRADE 5)
2
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
3
6019
WASHER 3/8 X 29/32 X 1/16
4
6701
WASHER 3/8 X 13/16 X 1/16
5
7601
LOCKNUT 3/8-16 FLANGE
6
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
7
16219-79C
STABILIZER LINK UPPER
8
16338-99
BRACKET ENGINE MOUNTING
9
16478-85A
SCREW INTERNAL THREAD
10
16480-92A
SCREW INTERNAL THREAD
11
16510-83A
CYLINDER W/ PISTON (SILVER TEXTURE)
12
16573-83A
INSERT CYLINDER STUD
13
16691-92B
HEAD FRONT CYLINDER, W/ GUIDES & SEATS (SILVER TEXTURE)
13
16690-92B
HEAD REAR CYLINDER, W/ GUIDES & SEATS (SILVER TEXTURE)
14
16715-83
STUD EXHAUST PORT
15
16770-84F
GASKET CYLINDER HEAD
16
16774-86D
GASKET CYLINDER BASE
17
16837-85C
STUD CYLINDER BASE
18
17040-92A
GASKET KIT TOP OVERHAUL
18
17041-92A
GASKET KIT ENGINE OVERHAUL
19
18001-83B
SEAL VALVE
20
18011-86
INSERT EXHAUST VALVE SEAT
21
18020-83
INSERT INTAKE VALVE SEAT
22
18074-83B
Клапан впускной
22
18076-83
INTAKE VALVE 0.03 SHORT
23
18082-83A
Клапан выпускной
23
18087-83
EXHAUST VALVE 0.030 SHORT
24
18101-83D
VALVE GUIDE INTAKE & EXHAUST
24
18130-83D
VALVE GUIDE INTAKE & EXHAUST, 0.001 O.S.
24
18131-83D
VALVE GUIDE INTAKE & EXHAUST, 0.003 O.S.
24
18133-83B
VALVE GUIDE INTAKE & EXHAUST, 0.002 O.S.
27
18219-83A
COLLAR VALVE SPRING, UPPER
29
18229-83A
RETAINER VALVE COLLAR
30
26432-76A
O-RING CYLINDER STUD INSERT
31
43891-93
COVER HEAD BOLT
32
16249-92
BRACKET V.O.E.S.
