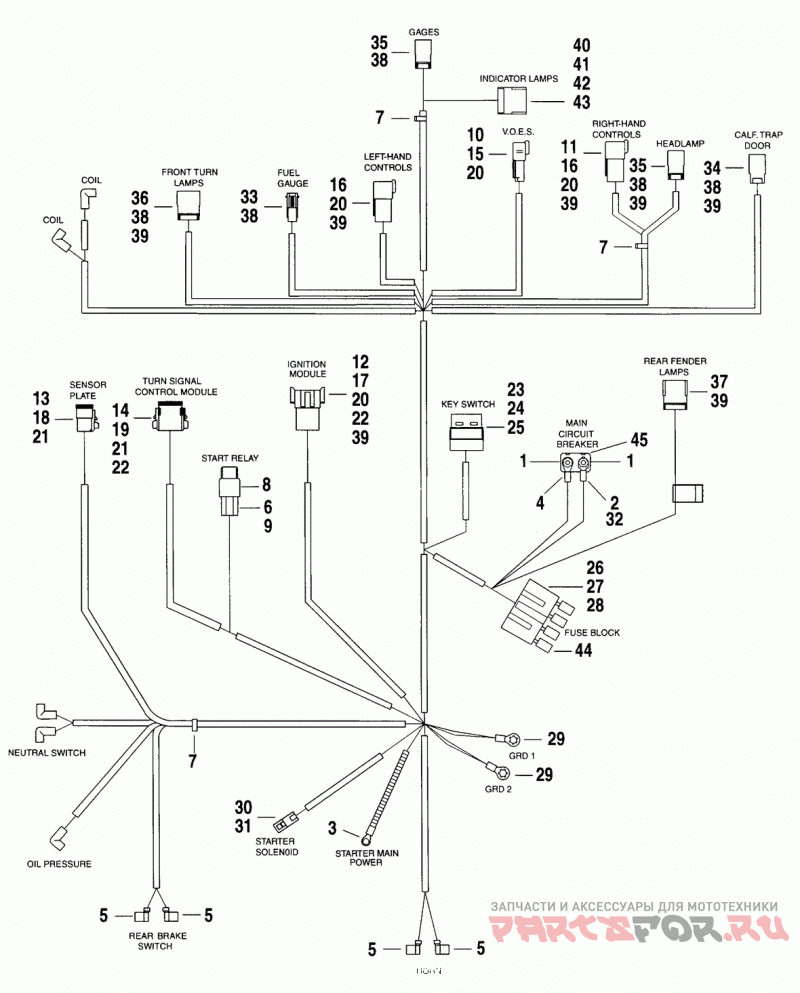

WIRING HARNESS, MAIN

Harley Davidson FXR3 EVLX FXR Super Glide (2000)

Harley Davidson
#oem кодцена
69565-99
MAIN WIRING HARNESS. Includes the following:
1
7629
NUT, #10-32 X 3/16 X 3/8 hex.
2
9840
TERMINAL RING
3
9842
TERMINAL RING
4
9843
TERMINAL RING
5
9898
TERMINAL FLAG
6
9937
Терминал
7
10065
CABLE STRAP
8
31504-91B
RELAY
9
72046-79
SOCKET HOUSING
10
72102-94BK
PIN HOUSING, SEALED - 2 place (black)
11
72106-94BK
PIN HOUSING, SEALED - 6 place (black)
12
72108-94BK
PIN HOUSING, SEALED - 8 place (black)
13
72113-94BK
SOCKET HOUSING, 3-way (black)
14
72138-94GY
SOCKET HOUSING, 8-way (gray)
15
72142-94
SECONDARY LOCK, 2-way
16
72146-94
SECONDARY LOCK, 6-way
17
72148-94
SECONDARY LOCK, 8-way
18
72153-94
SECONDARY LOCK, 3-way
19
72158-94
SECONDARY LOCK, 8-way
20
72190-94
TERMINAL, pin
21
72191-94
TERMINAL, socket
22
72195-94
SEAL PIN
23
72205-94
CONNECTOR 4-way
24
72208-94
TERMINAL, (12ga.) male
25
72210-94
TERMINAL, (14ga.) male
26
72216-94
FUSEBLOCK
27
72217-94
TERMINAL, auto fuse (18 ga.)
28
72218-94
TERMINAL, auto fuse (14-16 ga.)
29
72255-94
TERMINAL, 1/4 ring
30
72291-94
TERMINAL, (14-16 ga.)
31
72295-94
TERMINAL HOUSING
32
72366-95
HEAT SHRINK TUBING
33
73102-96BK
PIN HOUSING, 2-way (black)
34
73103-96BK
PIN HOUSING, 3-way (black)
35
73104-96BK
PIN HOUSING, 4-way (black)
36
73106-96BK
PIN HOUSING, 6-way (black)
37
73108-96BK
PIN HOUSING, 8-way (black)
38
73190-96
PIN TERMINAL, (20-16 ga.)
39
73198-96
CONNECTOR ANCHOR
40
74109-98BK
PIN HOUSING, 12-way
41
74149-98
PIN LOCK, 12-way
42
74192-98
PIN TERMINAL
43
74195-98
SEAL PIN
44
74587-94
CIRCUIT BREAKER 15A
45
74599-77B
CIRCUIT BREAKER 30A
