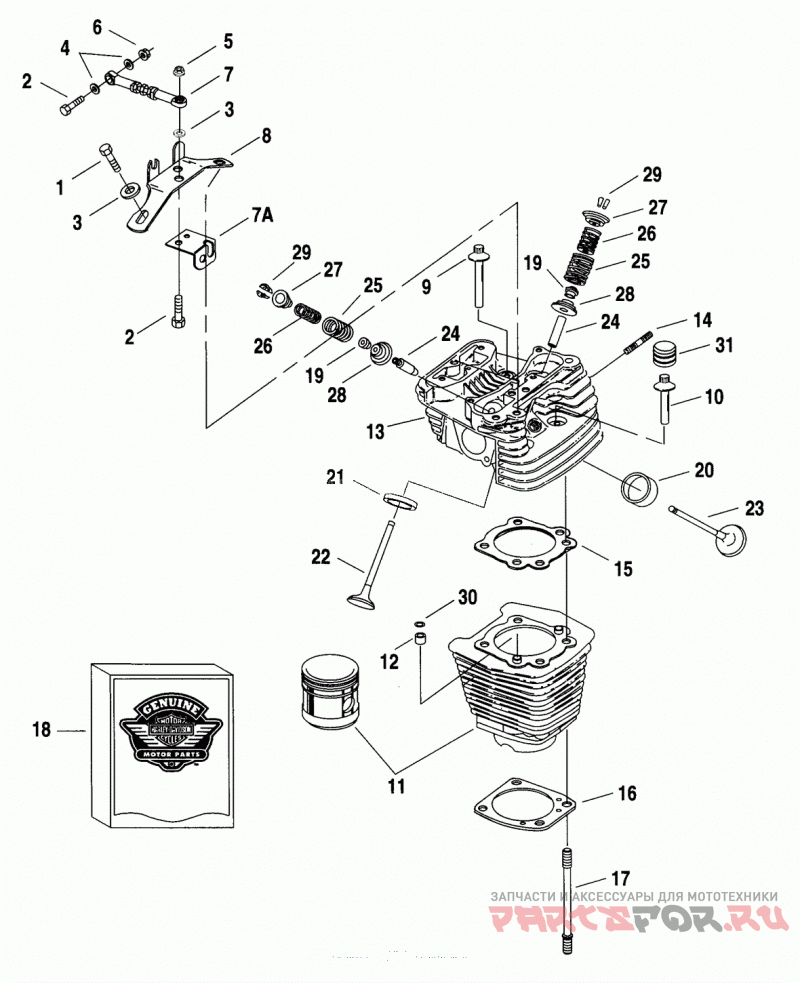

CYLINDERS, VALVES & HEADS - V2 (TM) EVOLUTION

Harley Davidson FXR3 EVLX FXR Super Glide (2000)

Harley Davidson
#oem кодцена
1
4716W
BOLT, 3/8-16 X 1-1/4 hex. hd.(Grade 5 steel)
2
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel)
3
6019
WASHER, 3/8 X 29/32 X 1/16
4
6701
WASHER, 3/8 X 13/16 X 1/16
5
7601
FLANGE LOCKNUT, 3/8-16
6
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex.
7
16219-79C
STABILIZER LINK top
7A
16249-92
BRACKET, V.O.E.S.
8
16338-99
BRACKET, engine mounting
9
16478-85A
SCREW, internal thread
10
16480-92A
SCREW, internal thread, 1-7/8 in. long
11
16510-83A
CYLINDER w/ PISTON (silver texture)
12
16573-83A
INSERT cylinder head stud
13
16691-92B
HEAD, front cylinder w/guides & seats (silver texture)
13
16690-92B
HEAD, rear cylinder w/guides & seats (silver texture)
14
16715-83
STUD, exhaust port
15
16770-84F
GASKET cylinder head
16
16774-86D
GASKET, cylinder base
17
16837-85C
STUD, cylinder base
18
17040-92A
GASKET KIT, top overhaul
18
17041-92A
GASKET KIT, engine overhaul
19
18001-83B
SEAL, valve
20
18011-86
INSERT, exhaust valve seat
21
18020-83
INSERT, intake valve seat
22
18074-83B
Клапан впускной
22
18076-83
INTAKE VALVE, 0.03 short
23
18082-83A
Клапан выпускной
23
18087-83
EXHAUST VALVE, 0.030 short
24
18101-83D
VALVE GUIDE intake & exhaust
24
18130-83D
VALVE GUIDE, intake & exhaust - 0.001 O.S.
24
18131-83D
VALVE GUIDE, intake & exhaust - 0.003 O.S.
24
18133-83B
VALVE GUIDE, intake & exhaust - 0.002 O.S.
25
18201-83
VALVE SPRING, outer
26
18202-83
VALVE SPRING, inner
27
18219-83A
COLLAR, valve spring - upper
28
18222-83A
COLLAR, valve spring - lower
29
18229-83A
RETAINER valve collar
30
26432-76A
O-RING, cylinder stud insert
31
43891-93
COVER, head bolt
