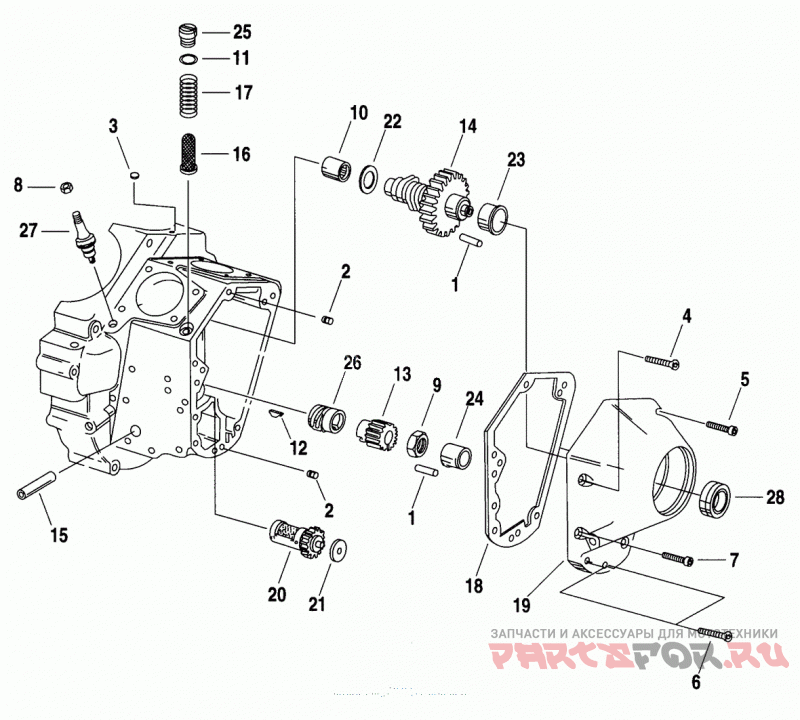

CRANKCASE - GEAR SIDE

Harley Davidson FXR3 EVLX FXR Super Glide (2000)

Harley Davidson
#oem кодцена
1
275
DOWEL PIN (2 - as required)
2
358
Палец
3
653
PLUG, crankcase
4
3480A
SCREW, 1/4-20 X 1-3/4 knurled socket hd. (Grade 8 steel)
5
4813A
SCREW, 1/4-20 X 1-3/8 knurled socket hd. (w/lockpatch)
6
4718A
SCREW, 1/4-20 X 1-1/2 knurled socket hd. w/ washer (w/lockpatch)
7
4740A
SCREW, 1/4-20 X 1-1/4 knurled socket hd. (w/lockpatch)
8
7629
NUT, #10-32 X 3/16 X 3/8 hex.
9
7916A
JAM NUT, 5/8-18 (locking)
10
9058A
NEEDLE BEARING crankcase cam cover
11
11105
Уплотнительное кольцо
12
11219
T-KEY
13
24040-93
PINION GEAR, 1.4850-53 p.d. (orange)
13
24041-93
PINION GEAR, 1.4846-49 p.d. (white)
13
24042-93
PINION GEAR, 1.4842-45 p.d. (yellow)
13
24043-93
PINION GEAR, 1.4838-41 p.d. (red)
13
24044-93
PINION GEAR, 1.4834-37 p.d. (blue)
13
24045-93
PINION GEAR, 1.4830-33 p.d. (green)
13
24046-93
PINION GEAR, 1.4826-29 p.d. (black)
14
24586-93
SET OF CAM & PINION GEARS (matched)
15
24641-36
BUSHING, oil pump shaft
16
24981-70
OIL SCREEN, crankcase
17
24982-70
SPRING, oil screen
18
25225-93B
GASKET, gear cover
19
25256-93A
GEAR COVER (chrome)
20
25310-82A
BREATHER VALVE GEAR
21
25320-82
THRUST WASHER, brthr valve - 0.130in. thk.
21
25321-82
THRUST WASHER, brthr valve - 0.135in. thk.
21
25322-82
THRUST WASHER, brthr valve - 0.140in. thk.
21
25323-82
THRUST WASHER, brthr valve - 0.145in. thk.
21
25325-82
THRUST WASHER, brthr valve - 0.150in. thk.
21
25326-82
THRUST WASHER, brthr valve - 0.155in. thk.
21
25327-82
THRUST WASHER, brthr valve - 0.160in. thk.
21
25328-82
THRUST WASHER, brthr valve - 0.165in. thk.
22
25550-57A
THRUST WASHER, cam gear
23
25581-70
BUSHING, gear cover
24
25582-93
BUSHING, gear cover pinion shaft
25
26263-80
PLUG, oil screen
26
26354-93
DRIVE GEAR, oil pump
27
26561-84
Датчик давления масла
28
83162-51
OIL SEAL, bearing
